MaxLink POE-BOX8-G Gigabit POE 8 ports
Product Code:
POE-BOX8-G
24,60 €
(Includes VAT 24%)
Sales price without VAT:
19,84 €
Available
MaxLink POE-BOX8-G Passive Gigabit POE injector, 8 ports
Shipping cost calculation:
Quantity
Description
Characteristics
Description

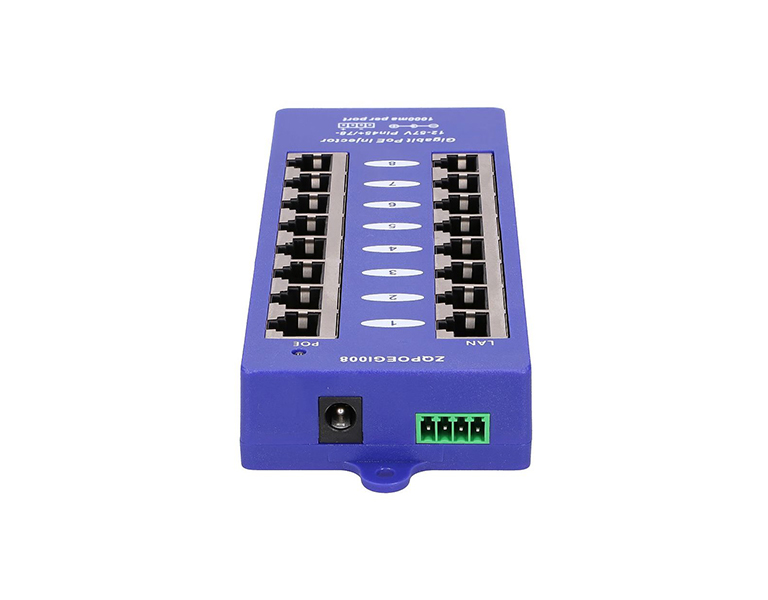

POE-BOX8-G is a passive Gigabit PoE injector suitable for powering up to 8 devices. Connectors marked "LAN" connect Ethernet ports without power supply eg switch, to the opposite side of "POE" connect devices using passive PoE.
For powering PoE injector uses two pairs of Ethernet cable: 4,5 (positive pole) and 7,8 (negative pole). The power supply is connected via a standard 2.1/5.5mm power connector or via a special 4-pin terminal block.
The passive PoE injector can be used in the range of 12 to 57V DC with a max. current of 1000mA/port.
Characteristics
| Specifications | |
| Type of product | PoE injector |
| Gigabit LAN | Yes |
| Ethernet speed | 10/100/1000Mbps |
| Shielding | Yes |
| Operating temperature | 0°C up to 40°C |
| Power LED indication | Yes |
| Pin powering | 4,5 (+), 7,8 (-) |
| PoE ports | 8 |
| Input voltage | 12 .. 57V DC |
