Ubiquiti POE-24-30W-G-WH ,PoE Injector
Product Code:
POE-24-30W-G-WH
19,70 €
(Includes VAT 24%)
Sales price without VAT:
15,89 €
Available
Next pickup date: 12/06/2025
Ubiquiti POE-24-30W-G-WH ,PoE Injector
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

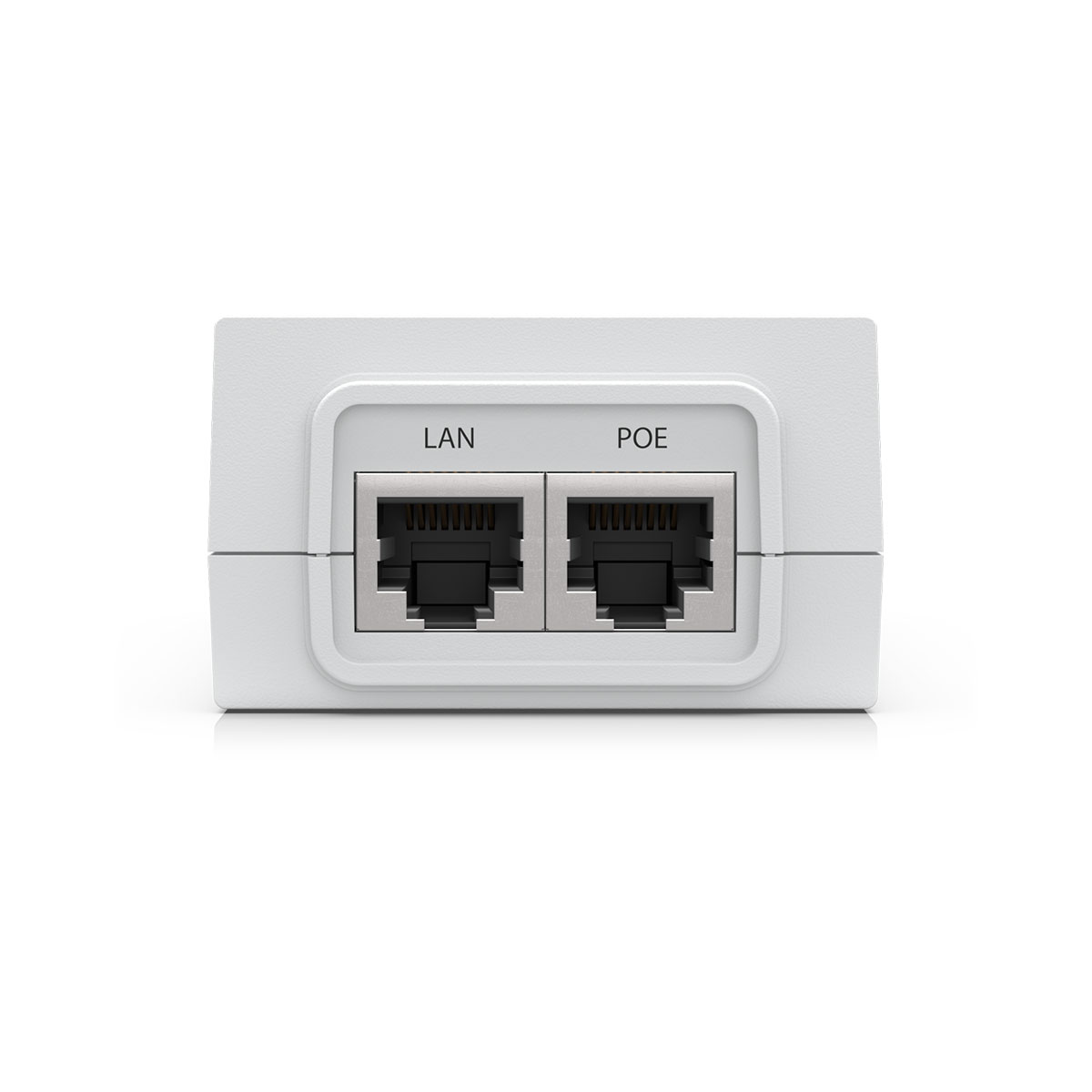

The Ubiquiti POE-24 is a grounded PoE injector with a maximum output power of 30 W. It provides one input port for a traditional LAN connection and a second port as a PoE output port. The maximum data transfer rate is 1 Gbps. This device is not equipped with LED indicator.
• Surge and clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Characteristics
| Specifications | |
| Dimensions | 94 x 60 x 33 mm |
| Weight | 156 g |
| Output Voltage | 24VDC @ 1.25A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240AC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC <120 Peak @ 230VAC |
| Efficiency | 83+% |
| Output Ripple | 1% Max |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -30 to 70°C |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
Downloads
Datasheet
PoE Compatibility Table
