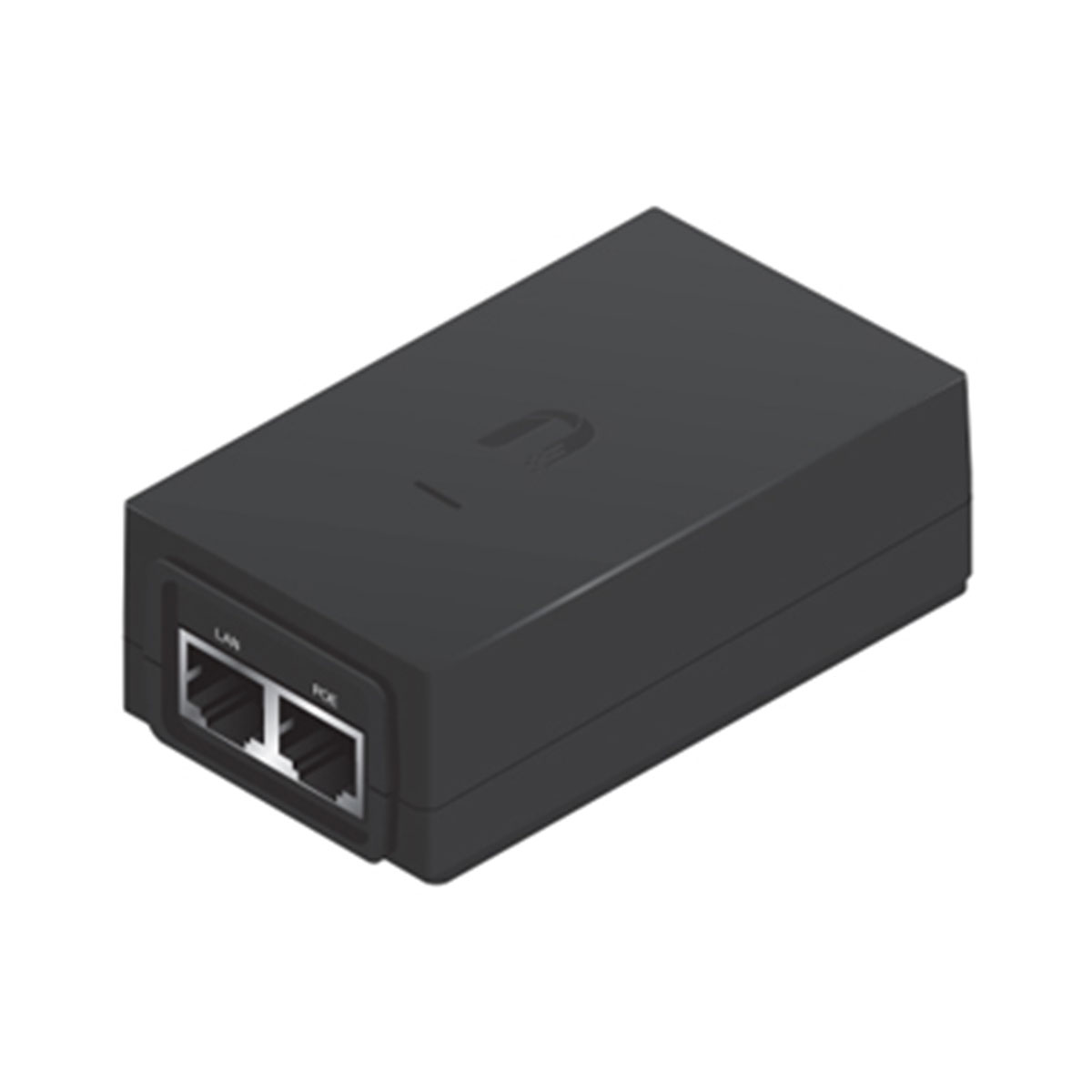

Ubiquiti POE-24-AF5X Gigabit PoE Adapter 24V, 1A, 24W for AF-5X
Product Code:
POE-24-AF5X
19,00 €
(Includes VAT 24%)
Sales price without VAT:
15,32 €
Available
Ubiquiti POE-24-AF5X Gigabit PoE Adapter 24V, 1A, 24W for AF-5X
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
Gigabit PoE adapter 24V/1A (24W), for AF-5X, with EU Type power cable.
Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
Potential for ESD
Protection Against ESD
Characteristics
| Specifications | |
| Dimensions | 88 x 57 x 33 mm |
| Weight | 158.5 g |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Input Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -30 to 70°C |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Certifications | CE, FCC, IC, UL |
