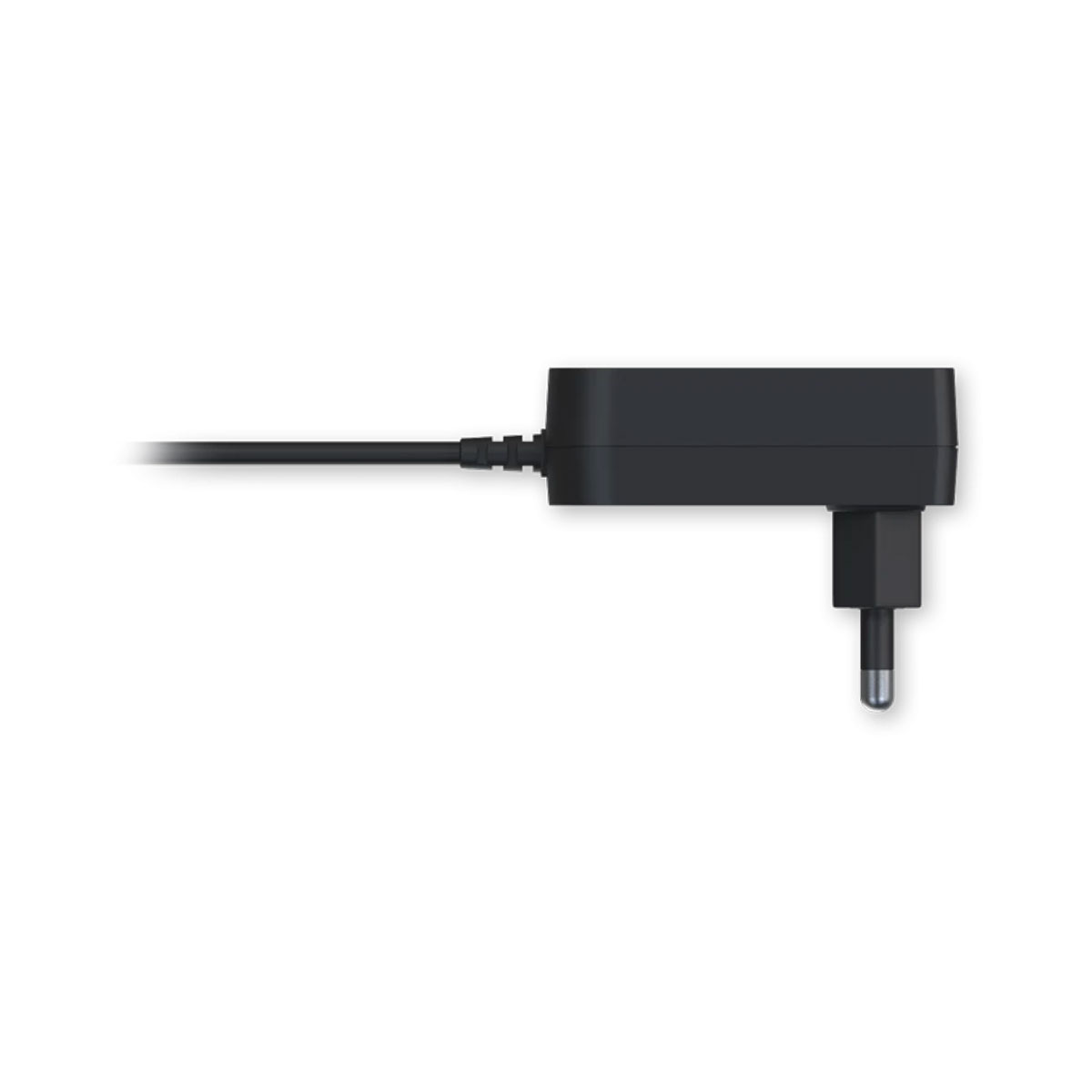

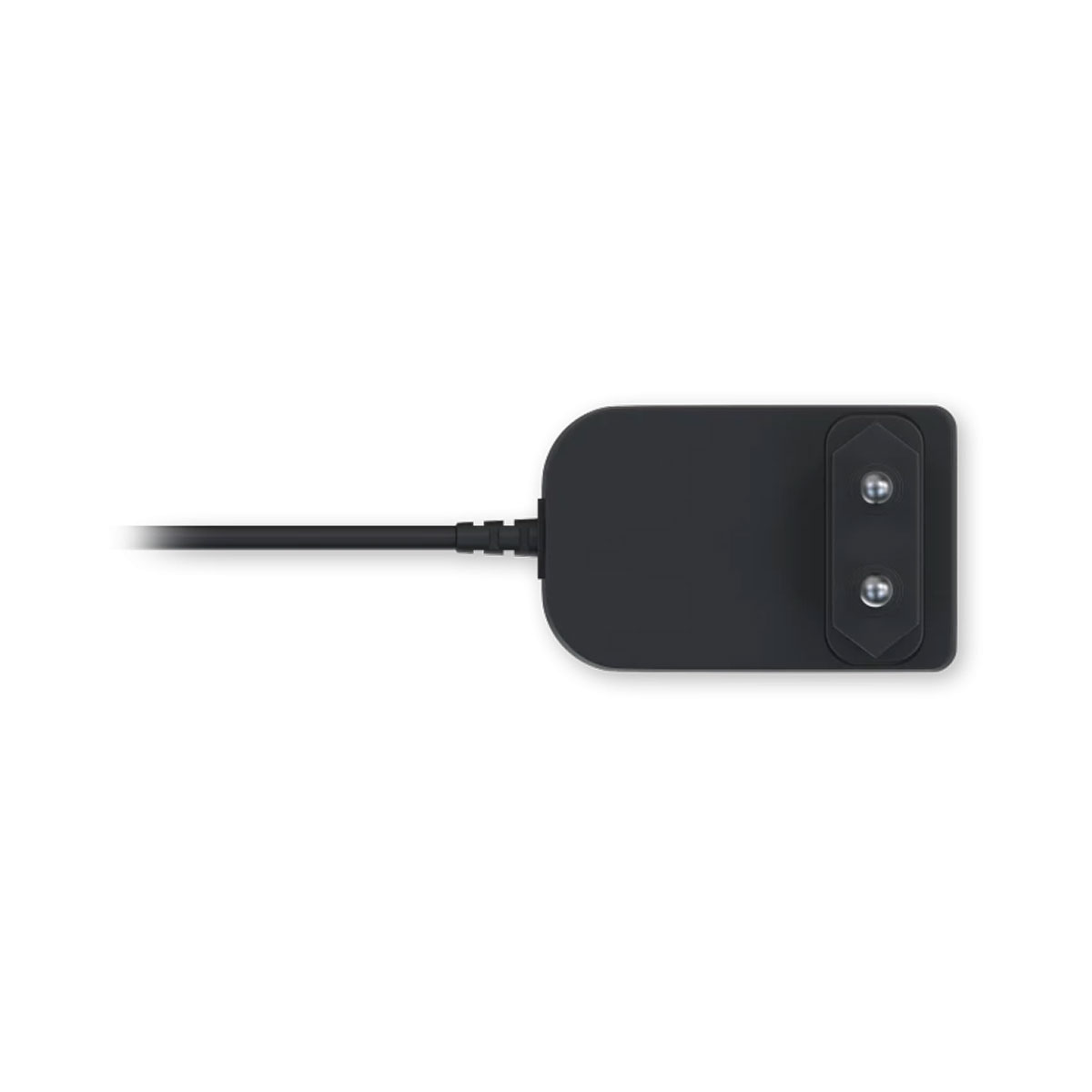

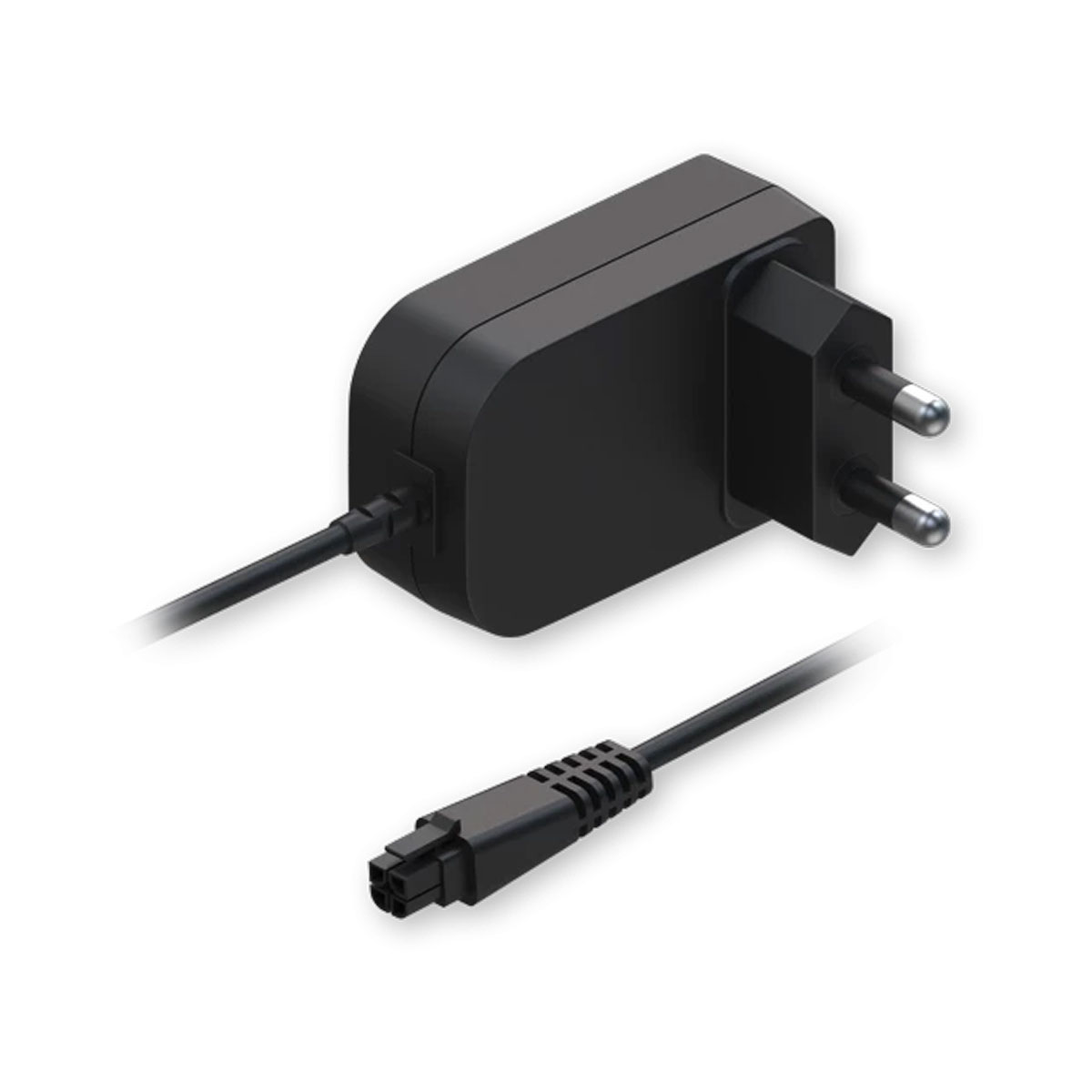

Teltonika PR3P2EU3 Power supply, 24W
Product Code:
PR3P2EU3
Available
Teltonika PR3P2EU3 Power supply, 24W
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
Power supply for RUTΧ12, RUTX14.
Characteristics
| Specifications | ||
| Parameter | Rated Value | Absolute Maximum |
| Input Voltage | 100-240 VAC | 90-264 VAC |
| Input Frequency | 50/60 Hz | 47-63 Hz |
| Input Current (@100-240VAC) |
0.6 A | - |
| Inrush Current (@100-240VAC) |
- | 40 A |
| Output Voltage | 12 VDC | 11.40-12.60 VDC |
| Output Current | 0-2 A | - |
| Overshoot | - | 10 % |
| Other Parameters | ||
| Short-Circuit protection | Yes | |
| Input protection | Fuse | |
| HIPOT (Dielectric Withstand Test) |
Primary to Secondary: AC3000V | |
| MTBF | 50000 h | |
| Input connector | EU | |
| Output connector | 4-pin, 3mm pitch | |
| Certification | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014 + A11:2017, IEC62321-7-1:2015, IEC62321-6:2015, IEC62321-5:2013, IEC62321-4:2013, IEC62321:2008 Annex C, UL 60950-1, CSA C22.2 No. 60950-1-07 |
|
Downloads
