Ubiquiti UISP-P uninterruptible power system UISP Power
Product Code:
UISP-P
385,00 €
(Includes VAT 24%)
Sales price without VAT:
310,48 €
Available
Ubiquiti UISP-P uninterruptible power system UISP Power
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
The uninterruptible power supply system from Ubiquiti Networks is designed for power redundancy in MicroPoP applications. UISP Power is equipped with two bays for sources, in which you can place 100W sources each (UACC-Adapter-PT-120W) with a maximum output power of 200W, backup Li-ion battery with a capacity of 115Wh, terminals for connecting an external 24V battery, a LAN port for communication and an output Power TransPort connector for power supply end element with a voltage of 27V.
Compatible devices
- UISP Console
- UISP Router (with UISP Box installed)
- UISP Router Pro
- UISP Switch (with UISP Box installed)
- UISP Switch Pro
Package contents
- Device
- Battery
- Cable to connect external battery
- Wall mount
- Screws, dowels

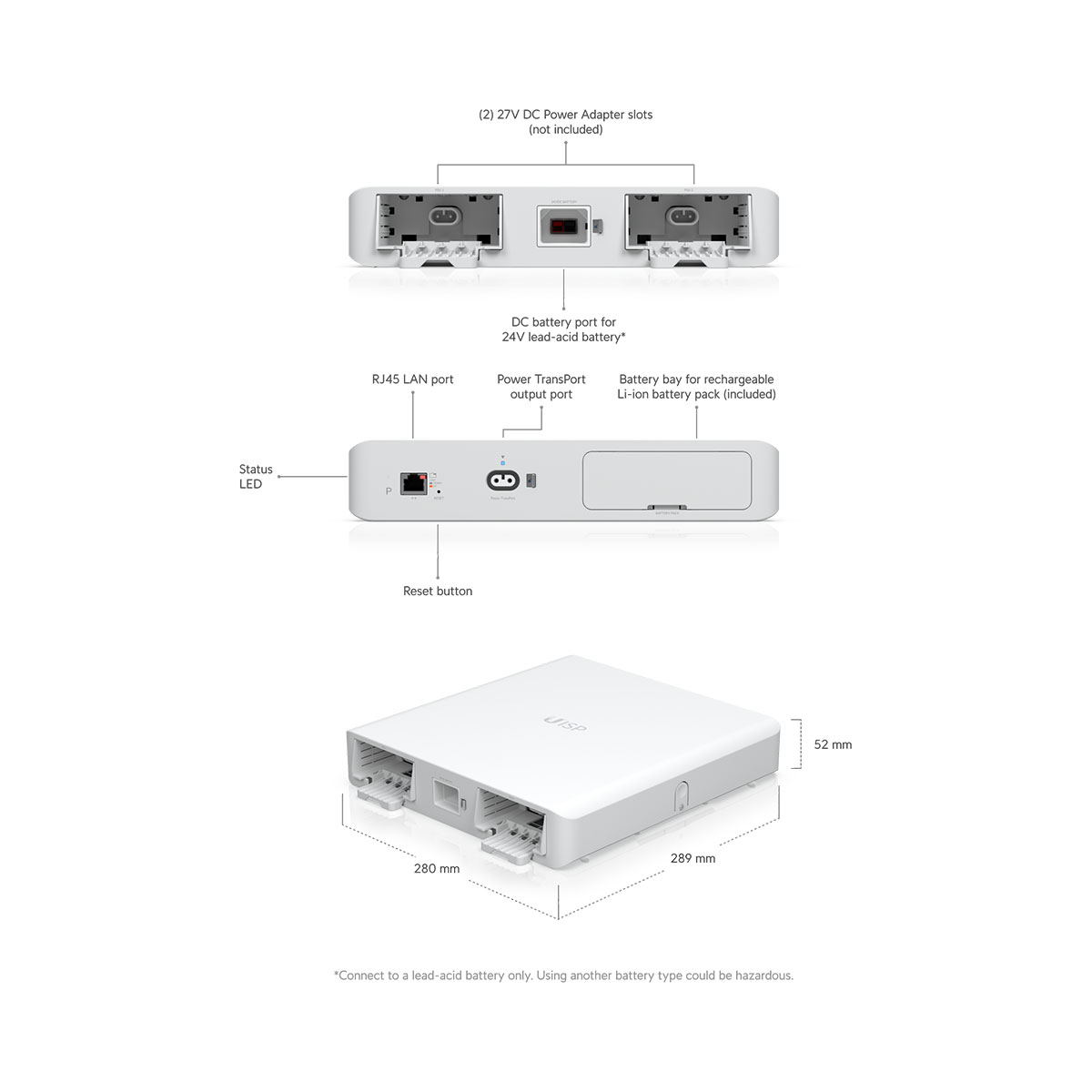

Characteristics
| Mechanical | |
| Dimensions | 289 x 280 x 52 mm |
| Weight | 1.4 kg |
| Enclosure material | Polycarbonate, acrylonitrile butadiene styrene |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 LAN port |
| Management interface | Ethernet In-Band Bluetooth |
| Power TransPort interface | 27V DC, 100W (with 1 power adapter) 27V DC, 200W (with 2 power adapters) |
| Power method | (2) 27V DC, 4.4A power adapters (120W Power TransPort Adapter not included) |
| Backup power | (1) 25.2V DC, 7.93A rechargeable Li-ion battery pack (included) (1) 24V DC, 8.33A lead acid battery input* (battery not included) *Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. power consumption | 3W (excludes Power TransPort output and battery charger) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| Operating temperature | -5 to 40° C |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| LEDs | |
| System | Status |
| RJ45 data port | Link/activity |
| Power TransPort | On/Off |
| Compatibility | |
| Supported models | UISP Console UISP Router (installed with UISP Box) UISP Router Pro UISP Switch (installed with UISP Box) UISP Switch Pro |
| Software | |
| Management application | UISP: Version 1.4.5 and later |
