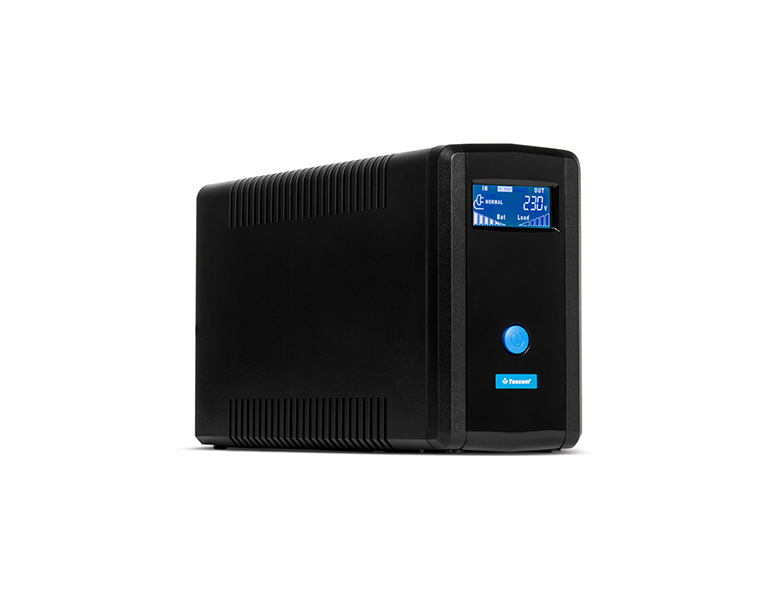

TESCOM UPS Leo Plus LCD 2KVA
The new Line-Interactive UPSs with simulated output voltage have a microprocessor control and integrated input voltage stabilization circuit for greater reliability and a liquid crystal display for complete control. Ideal, economical solutions for home and business use. They can protect against surges, sinks and power outages and support PCs, routers-modems, TVs, Video game consoles, telephones, cash machines etc. It is light and compact.
Features:
• Line Interactive technology with Microprocessor controller
• Automatic frequency detection 50 / 60Hz
• ABM technology to increase the life of the batteries
• Free software for monitoring, management, automatic storage and closing of supported equipment (LCD Models)
• Charge the batteries even when they are out of order
• Automatic restart in case of power failure
• Automatic Voltage Stabilization (AVR) for rectifying surges and surges without the use of battery power
• Monitoring of operation, batteries and current

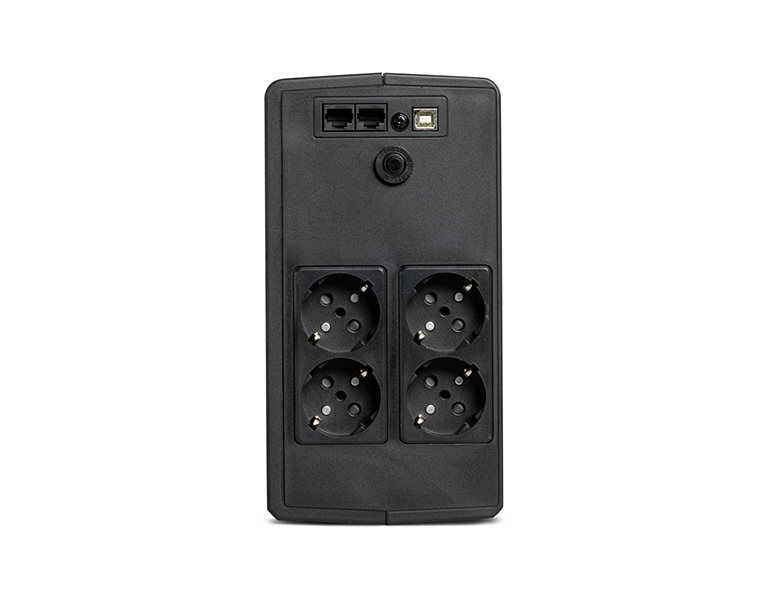

• Sockets: 2 x Schuko (650VA - 850VA) // 4 x Schuko (1000VA - 1500 VA)
| Specifications: | |
| Capacity | 2000VA / 1200W |
| Input | |
| Voltage | 100 / 110 / 120 V: 80 ~ 150 Vac; 220 / 230 / 240 V: 162 ~ 295 Vac (145 ~ 295 Vac optional) |
| Frequency | 50 / 60 Hz ± 10% (auto-sensing) |
| Output | |
| Voltage | 100 / 110 / 120 Vac ± 10% or 220 / 230 / 240 Vac ± 10% |
| Frequency | 50 / 60 Hz ± 1% (auto-sensing) |
| Waveform | Mains mode: pure sine wave Battery mode: simulated sine wave |
| Transfer time | Typical 2 ~ 7 ms, 10 ms max. |
| Batteries | |
| DC voltage | 24 V |
| Configuration | 12 V / 9 Ah x 2 |
| Recharge time | 6 ~ 8 h |
| Communications | |
| USB (optional) | Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / Windows®7 / 8 / 10 |
| Other Specs | |
| Protections | Short circuit - battery overcharge – ov discharge – overload - surge |
| Humidity | 20 ~ 90% RH @ 0 ~ 40°C (non-condensing) |
| Noise level | ≤ 40 dB (1 m) |
