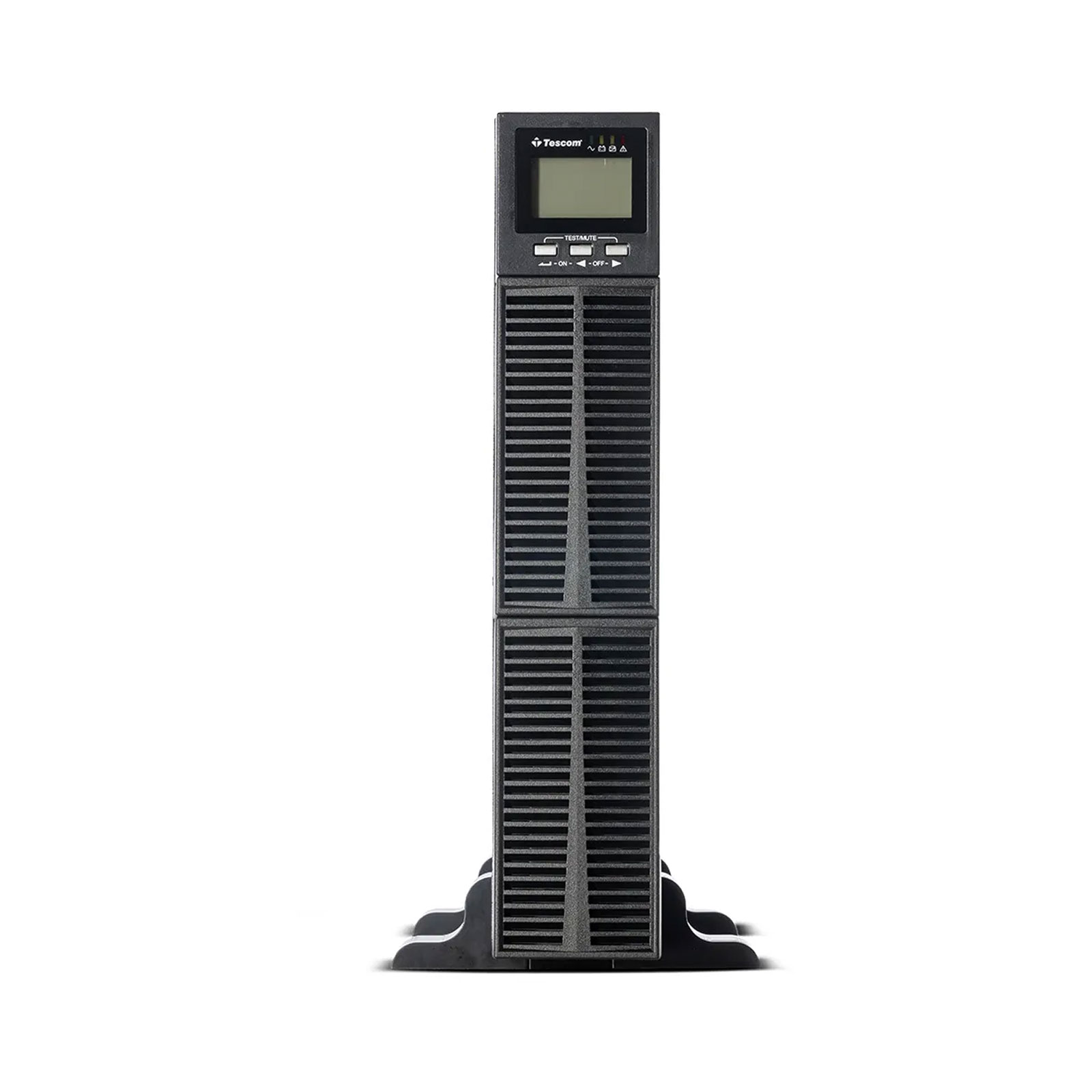

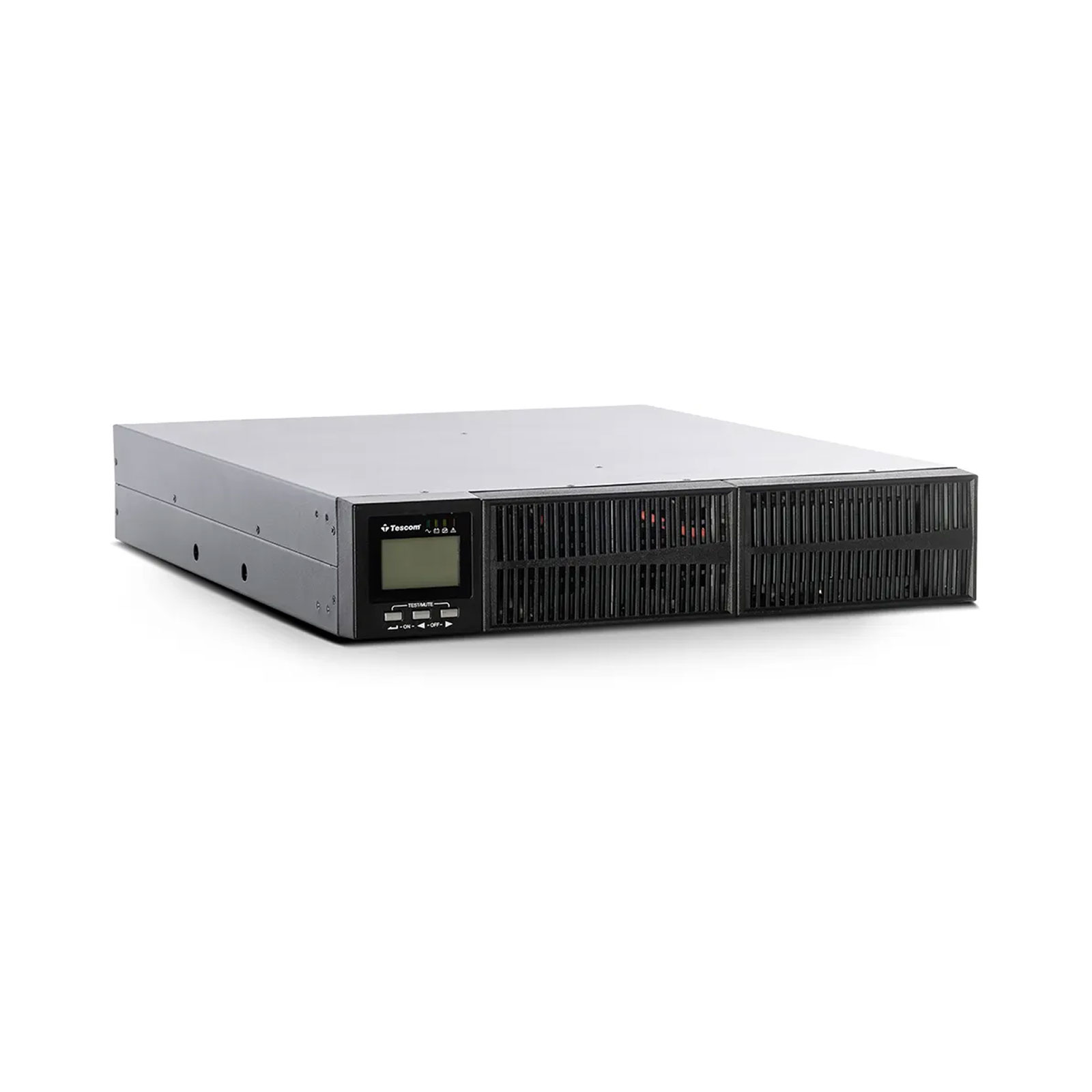

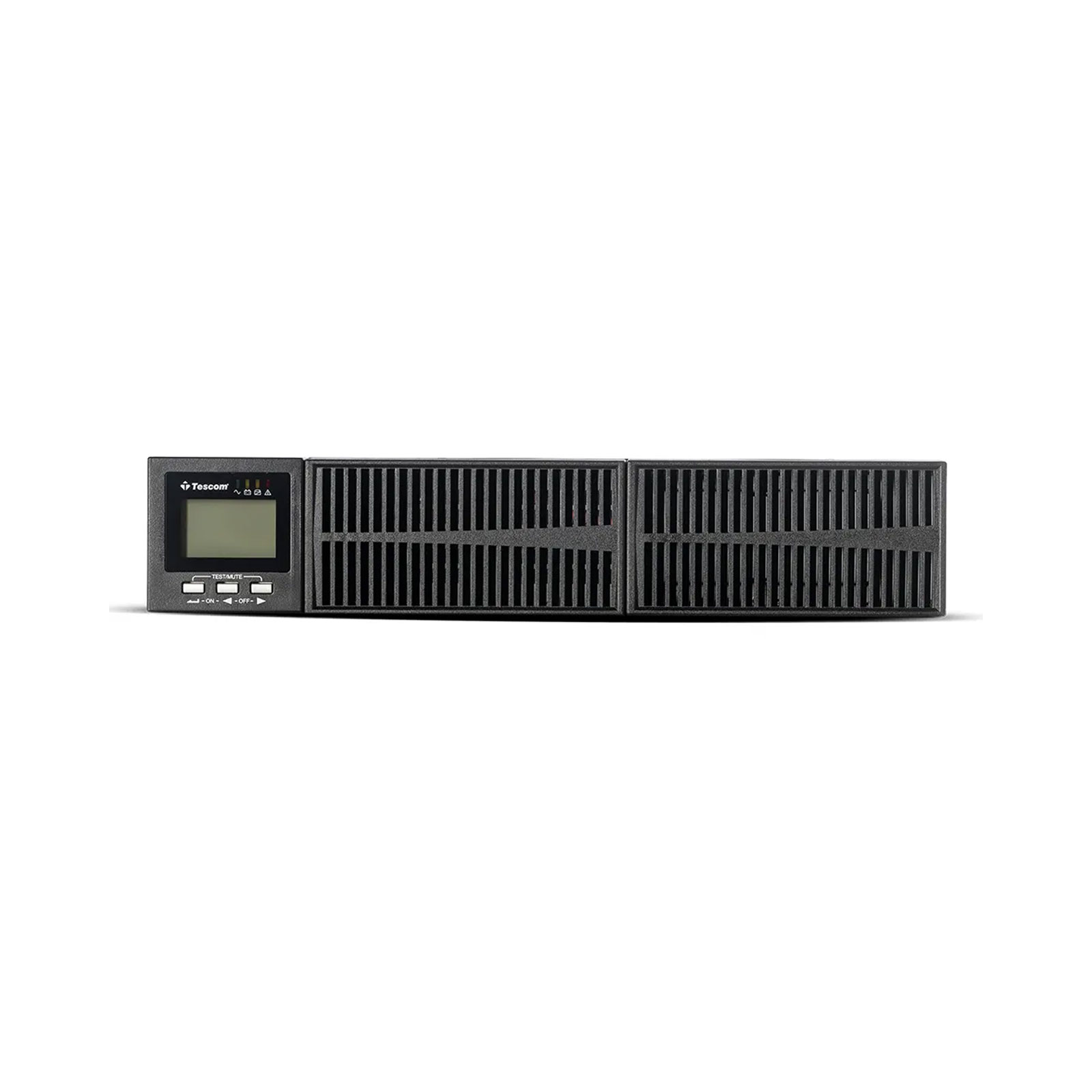

TESCOM UPS Prime Rack/Tower 3KVA/3000W LCD With 6 x 12V 9AH 12A - 1103XLRTB6X9-I With IEC
ATTENTION!! The batteries for this product have their own 12-month warranty, which differs from the product warranty!!
PRIME RT UPS are double conversion single phase ON-LINE UPS, Rack-Tower type. With advanced DSP control technology and Power Factor 1.0, they offer full power and ensure accuracy and stability in critical applications and applications. They support a wide input voltage range (110V–300V AC) with automatic frequency detection and 50/60 Hz conversion. With a digitally controlled 12A charger, intelligent battery management and cold start function, the PRIME RT UPS ensures fast recharge, gradual degradation and longer battery life. The PRIME RT UPS is ideal for data centers, business networks and industrial applications.
Features:
- High-frequency Online double conversion
- Technology DSP (Digital Signal Processing) control technology
- Active power factor correction (APFC), input power factor up to 0.99
- Output power factor 1.0
- Wide input voltage range (110VAC - 300VAC)
- Auto-sensing frequency
- Frequency conversion 50 I 60 Hz
- Digitally controlled charger, charging voltage and current are modulated according to requirements
- High charging current 12A
- Cold boot
- Rear ventilation with variable speed fan
- Effective software and hardware protection
- Fast and stable charging, restore capacity to 90% in 3 hours (standard UPS model)
- Linear reduction in low voltage input that reduces battery discharge times
- Advanced Battery Management (ABM)
- Multiple functions can be set via LCD display: output voltage, EOD, auto start, bypass mode, ECO mode
- Communication platforms: RS232 (standard), USB / RS485 / SNMP / dry contacts (optional)
- Optional USB, RS485 card, AS400 dry contacts, SNMP card, SMS notifications, EPO function
| Specifications: | |
| Phase | 1 phase in/ 1 phase out |
| Capacity | 3kVA / 3kW |
| Input | |
| Rated voltage | 208 I 220 I 230 I 240 Vac |
| Voltage Range | 110 ˜ 176 Vac (linear derating between 50% and 100% load ); 176 ˜ 280 Vac (no derating) 280˜300 Vac (derating 50%) |
| Frequency | 50/60 Hz± 5 Hz (auto-sensing) |
| Power Factor | ≥ 0.99 |
| Bypass Voltage Range | - 40%˜+20% (settable) |
| Total harmonic distortion (THDi) | ≤5% |
| Output | |
| Voltage | 208 I 220 I 230 I 240 Vac (settable via LCD) |
| Voltage Regulation | ±1% |
| Frequency | 45˜55 Hz or 55 ˜ 65 Hz (synchronized range) 50 / 60 Hz± 0.1 Hz (battery mode) |
| Waveform | Sinusoidal |
| Power Factor | 1.0 |
| Total harmonic distrortion (THDv) |
≤ 2 % THD (Linear Load) ≤ 5 % THD (Non-linear load) |
| Crest factor | 3:1 |
| Overload | 105% ˜110% for 30 min, 110% ˜ 130% for 10 min, 130% ˜ 150% for 30s, > 150% for 500 ms |
| Batteries | |
| Battery Type | Sealed lead acid maintenance free battery |
| DC voltage | 72V(XL) |
| Inbuilt Battery | 6x9 Ah |
| Charging current (max.) | Long time model (XL): 12 A |
| Recharge time | Long time model: depend on the capacity of battery |
| System | |
| Efficiency | ≥ 94.4% (Mains mode) ≥ 92.3% (Battery mode ≥ 98.3% (ECO mode) |
| Transfer Time | Mains mode to battery mode: Oms Inverter mode to bypass mode: 4 ms (typical) |
| Protections | Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection |
| Communication port | RS232 (standard), USB / RS485 / SNMP/ dry contacts (optional) |
| Display | LCD |
| Enviroment | |
| Operating humidity | 0˜ 95% RH @ 0˜ 40°C (non-condensing) |
| Storage temperature | -25°C ˜ 55°C (exclude batteries) |
| Operating altitude | 0 ~ 95% (non-condensing) |
| Altitude | ≤ 1000m, above 1000m, derating 1% for each additional 100 m |
| IP rating | IP 20 |
| Noise level at 1m | ≤50 dB |
| Dimensions (W × D × H) (mm) | 440x560x88 |
| Packaged dimensions (W × D × H) (mm) |
545x690x201 |
| Net weight (kg | 22.3 |
| Gross weight (kg) | 25.34 |
