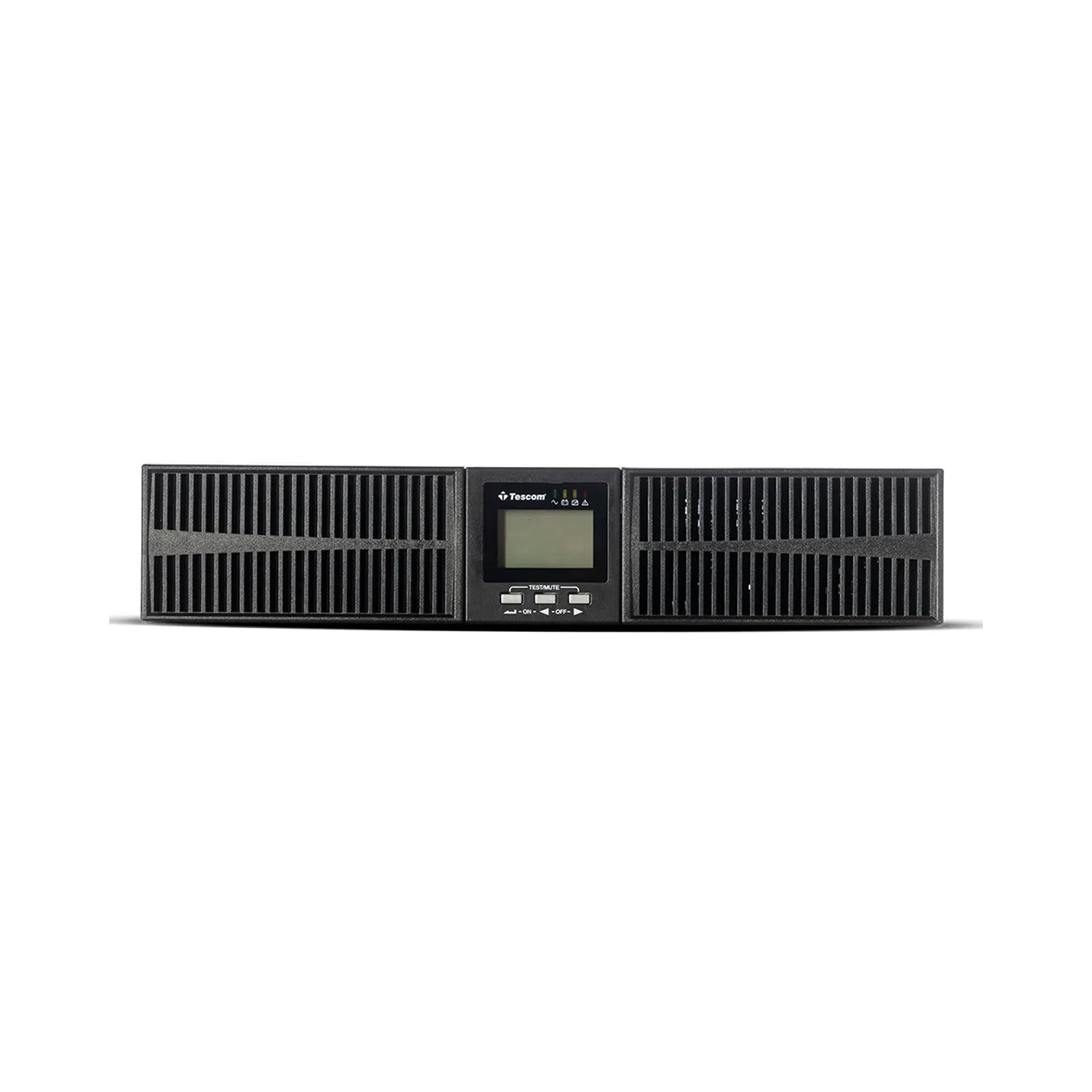

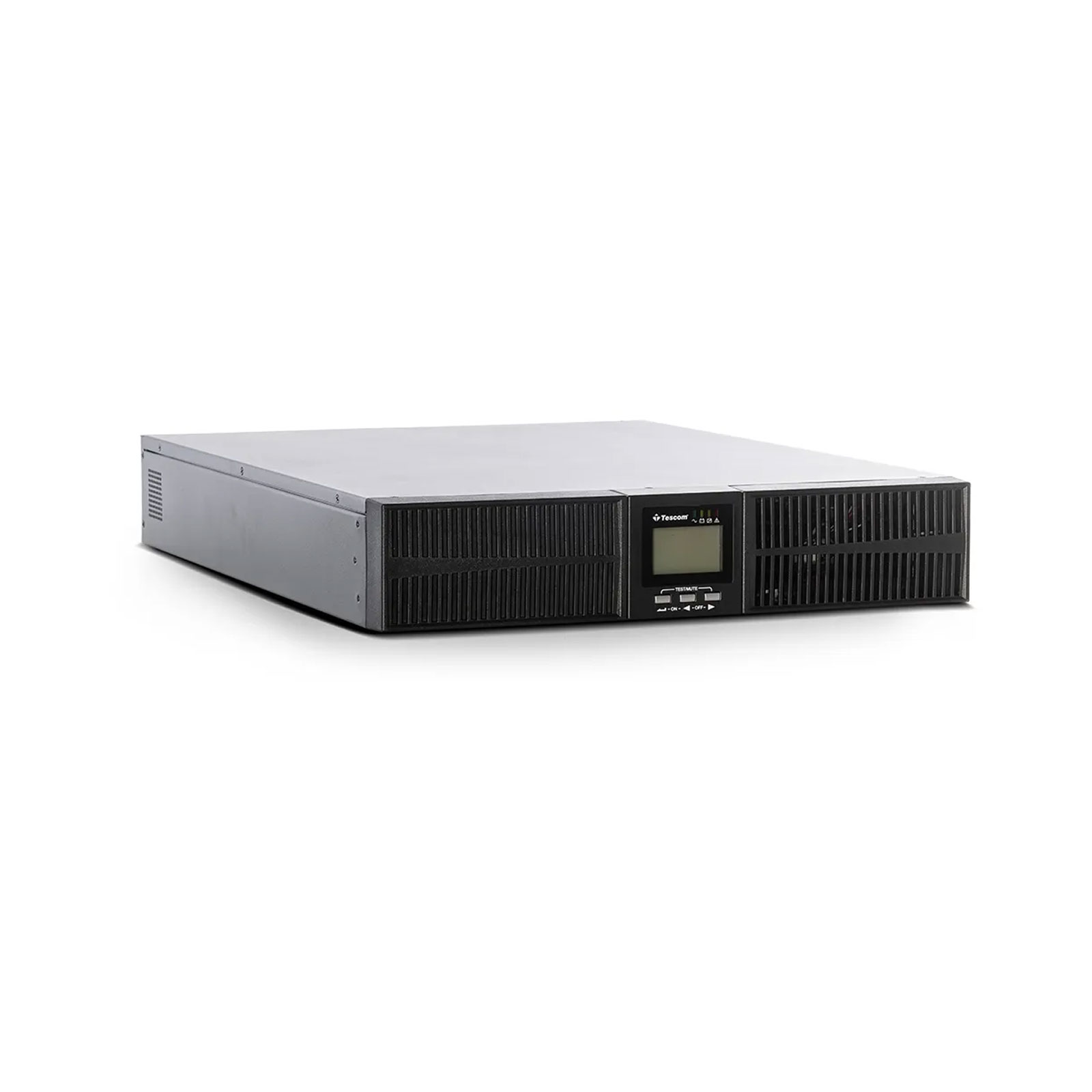

TESCOM UPS Prime Rack/Tower 6KVA/6000W LCD 240VDC 5A - 1106XLRT240V

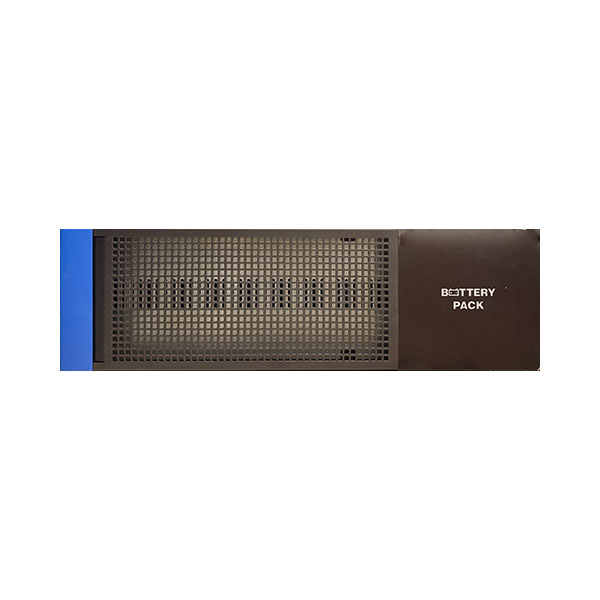

ATTENTION!! The product does not include a battery pack.

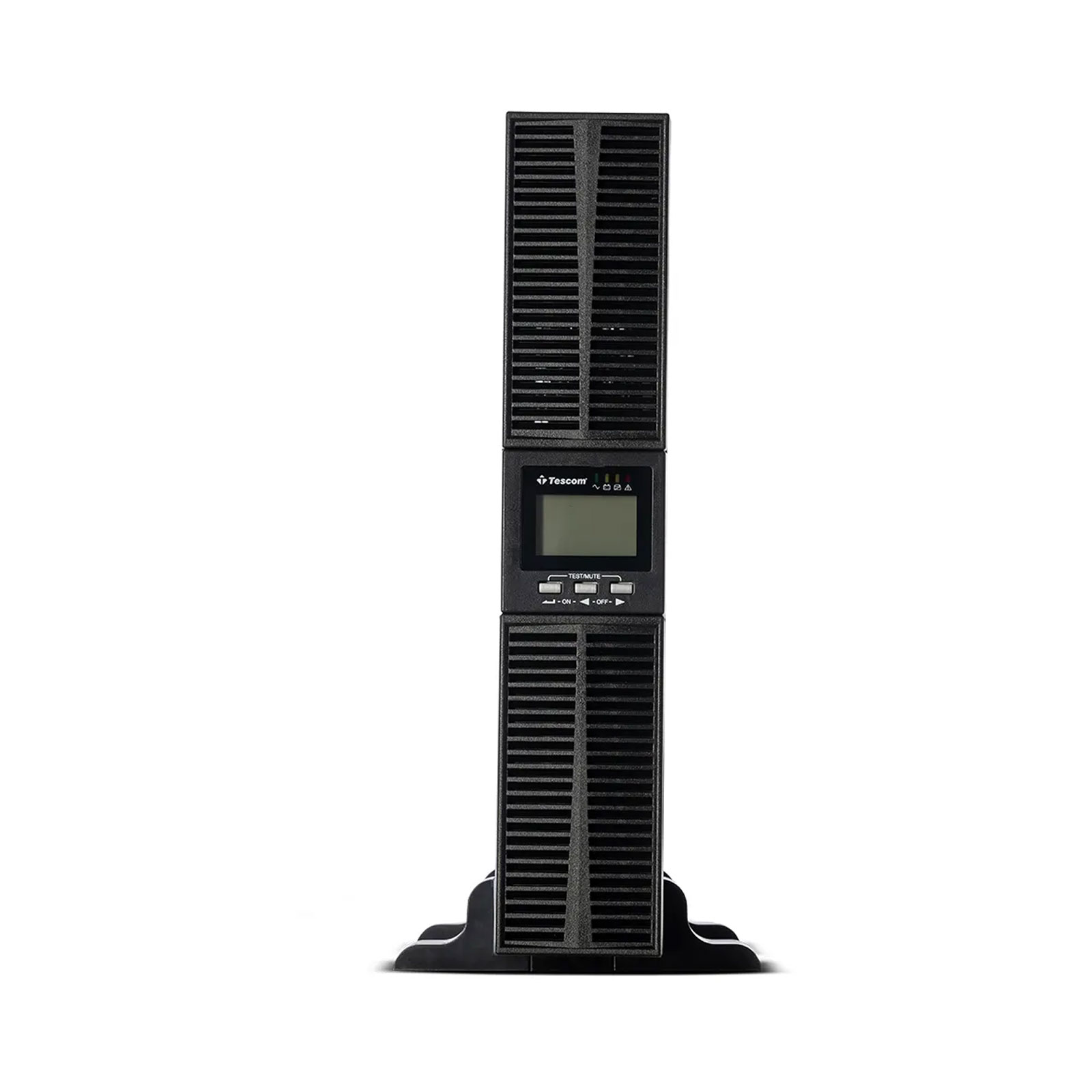

Online single-phase double conversion UPS (DSP) with a performance factor of PF=1. It offers absolute power (PF1), with efficiency up to (95% and up to 98% in ECO mode), saves energy and operates flawlessly over a wide range of voltage and frequency with automatic detection. It features hot-swappable batteries for simple and immediate maintenance as well as smart management that increases battery life by up to 50%.It features advanced communication options for absolute control in any environment. With a compact design and high performance, it is ideal for any professional space with critical loads, for the protection of servers, IT applications, security equipment, medical equipment, laboratories, etc. It provides the ability to choose batteries for greater autonomy and has a reinforced 5A charger. It has a rotating LCD+LED screen with easy navigation for quick and safe use with the ability to be mounted as a Tower as well as a Rack. It is light, small and with a low noise footprint.
Features:
- High frequency double conversion technology in online mode
- Advanced DSP and 3-level technology
- Output power factor 1.0
- Active Power Factor Correction (APFC), input power factor up to 0.99
- High efficiency 95% (up to 98% in ECO mode)
- Advanced digital parallel technology
- Wide input voltage range (110 ~ 288 Vac) and frequency range (40 ~ 70 Hz)
- Automatic frequency detection 50 / 60 Hz
- Hot-swappable battery
- Flexible battery selection (16 - 20 batteries)
- Digitally controlled charger
- High charging current available (5A, (Max. 12 A)
- Charging voltage and current modulated according to requirements
- Intelligent battery management, automatic charging control with floating/balancing, charger idle control, increasing battery life by 50%.
- Possibility of activating the UPS with batteries (cold start).
- Setting the operation delay time after the restoration of the mains supply, for reduced impacts on the electricity grid or the generator.
- Variable fan speed depending on the temperature, resulting in low noise and extended fan life.
- Effective protection function through software and hardware, self-diagnosis function, large event log and Display
- LCD+LED, with friendly user interface

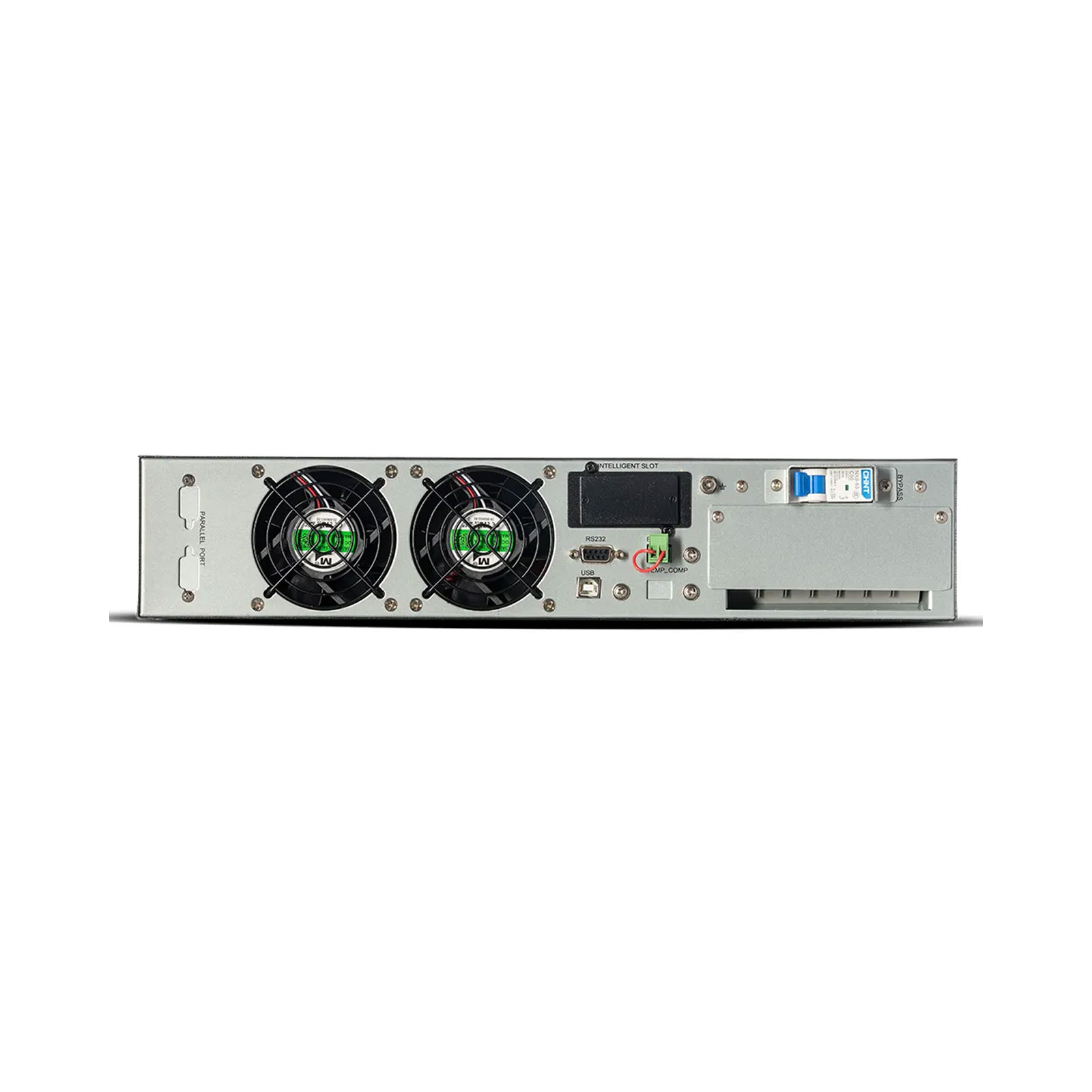

- Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contact communication interfaces
| Specifications: | |
| Capacity | 6 kVA / 6 kW |
| Input | |
| Input Wiring | Single-phase three-wire (1Φ + N + PE) |
| Rated voltage | 208 / 220 / 230 / 240 Vac |
| Voltage range | 110 ~ 176 Vac (linear derating between 50% and 100% load); 176 ~ 288 Vac (no derating) |
| Rated frequency | 50 / 60 Hz (auto-sensing) |
| Frequency range | 40 ~ 70 Hz |
| Power factor | ≥ 0.99 |
| Bypass Voltage Range | - 40% ~ +15% (settable) |
| Total harmonic distortion (THDi) | ≤ 5% |
| Output | |
| Output wiring | Single-phase (L-N) |
| Rated voltage | 208 (PF=0.9) / 220 / 230 / 240 Vac |
| Voltage regulation | ± 1% |
| Frequency | Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode |
| Waveform | Sinusoidal |
| Power factor | 1 |
| Total harmonic distortion (THDV) | ≤ 1% (linear load); ≤ 4% (non-linear load) |
| Crest factor | 3:1 |
| Overload | 105% ~ 110% for 10 min, 110% ~ 125% for 1 min,126% ~ 150% for 30 s |
| Batteries | |
| DC Voltage | 192 Vdc (192 ~ 240 Vdc settable) |
| Number of Battery | 16 pcs (16 ~ 20 settable) |
| Charging current | Long time (XL) model: 5 A (default), 12 A (optional) |
| Recharge time | Long time (XL) model: depend on the capacity of battery |
| System | |
| Efficiency | ≥ 94% at 100% load, max. 94.5% at 60% load, ≥ 98% in ECO mode |
| Transfer Time | 0 ms |
| Protections | Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure |
| Max. number of parallel connections | 4 |
| Communications | RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional) |
| Display | LCD + LED |
| Others | |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | -25°C ~ 55°C (without battery) |
| Relative Humidity | 0 ~ 95% (non-condensing) |
| Altitude | ≤ 1000 m, derating 1% for each additional 100 m |
| IP rating | IP 20 |
| Noise level at 1m | ≤ 55 dB |
| Dimensions (W × D × H) (mm) | 440 × 580 × 88 (XL) |
| Packaged dimensions (W × D × H) (mm) |
514 x 696 x 168 (XL) |
| Net weight (kg)* weight without batteries | 12 (XL) |
| GGross weight (kg)* weight without batteries | 14 (XL) |
