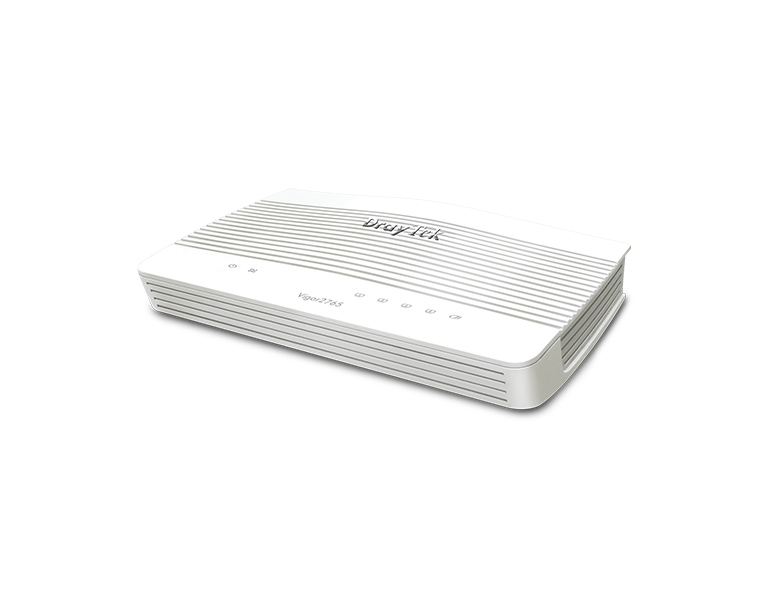

DrayTek Vigor-2765-A Vigor2765, 35b/VDSL2/ADSL2+ Modem/Router, AnnexA
Product Code:
VIGOR-2765-A
188,48 €
(Includes VAT 24%)
Sales price without VAT:
152,00 €
3-5 Days
DrayTek Vigor-2765-A Vigor2765, 35b/VDSL2/ADSL2+ Modem/Router, AnnexA
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
Vigor2765 Series is a 35b Supervectoring VDSL modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network.
Features:
• VDSL2 35b - Download speed up to 300 Mbps
• 600 Mbps - Max. NAT Throughput
• 2 VPN - Support IKEv2, SSL VPN, and OpenVPN
• 50k Sessions - Recommended for a network of 30 hosts
Characteristics
| Specifications | |
| Interface | |
| Fixed WAN Port | 1 x RJ-11 for VDSL2 or ADSL2/2+ |
| WAN/LAN Switchable Port | 1x 10/100/1000Base-T, RJ-45 (P4) |
| Fixed LAN Port | 3 x 10/100/1000Base-TX, RJ-45 |
| USB Port | 2 x USB 2.0 |
| Performance | |
| Max. Throughput on VDSL | 300 Mbps |
| NAT Throughput | 600 Mbps |
| IPsec VPN Performance | 200 Mbps (AES 256 bits) |
| SSL VPN Performance | 80 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels | 2 |
| VDSL/ADSL | |
| VDSL Standards | ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (Supervectoring) |
| VDSL Band Plan | 997, 998 |
| ADSL Standards | ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite) |
| ADSL2 Standards | ITU-T G.992.3, G.992.3 Annex M/J |
| ADSL2+ Standards | ITU-T G.992.5, G.992.5 Annex M/J |
| Internet Connection | |
| IPv4 | PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Multi-VLAN/PVC | • |
| WAN Failover | • |
| Connection Detection | ARP, Ping |
| WAN Data Budget | • |
| Dynamic DNS | • |
| DrayDDNS | • |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| Number of LAN Subnet | 2 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | • |
| Port Mirroring | • |
| Local DNS Server | • |
| Conditional DNS Forwarding | • |
| Hotspot Web Portal | • |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
| Routing | Ipv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | • |
| DNS Security (DNSSEC) | • |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| SMB File Sharing | • (Requires external storage) |
| VPN | |
| LAN-to-LAN | • |
| Teleworker-to-LAN | • |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption | MPPE, DES, 3DES, AES128, AES192, AES256 |
| Single-Armed VPN | • |
| NAT-Traversal (NAT-T) | • |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | • |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | • |
| Spoofing Defense | • |
| Bandwidth Management | |
| IP-based Bandwidth Limit | • |
| IP-based Session Limit | • |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | • |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| Config File Export & Import | • |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | • |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | • |
| Managed by VigorACS | • |
| Central AP Management | 2 VigorAP |
