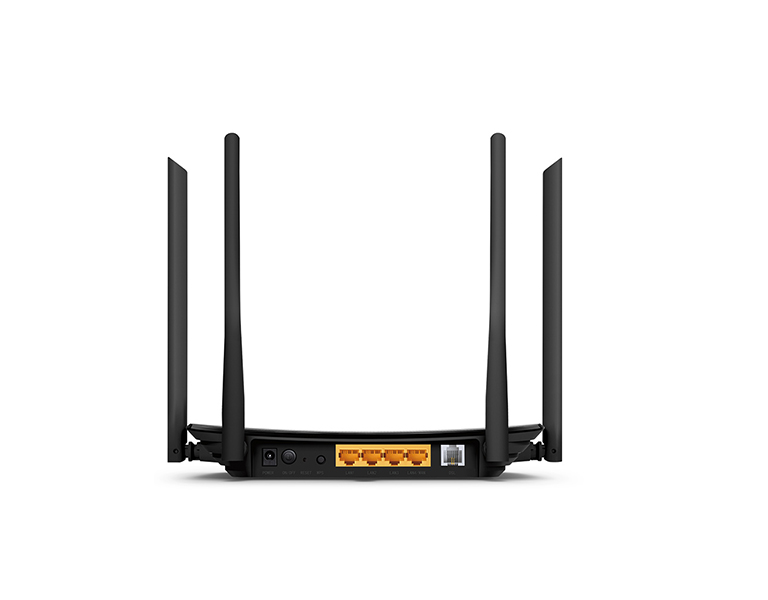

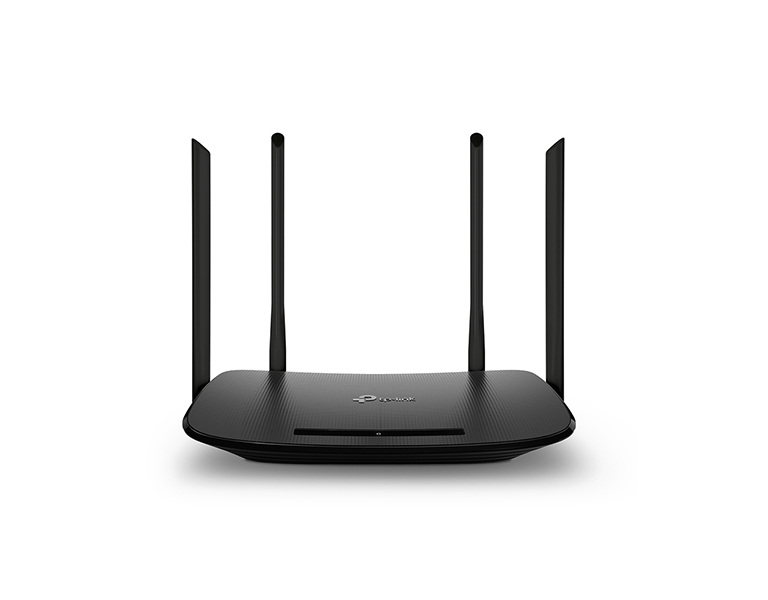

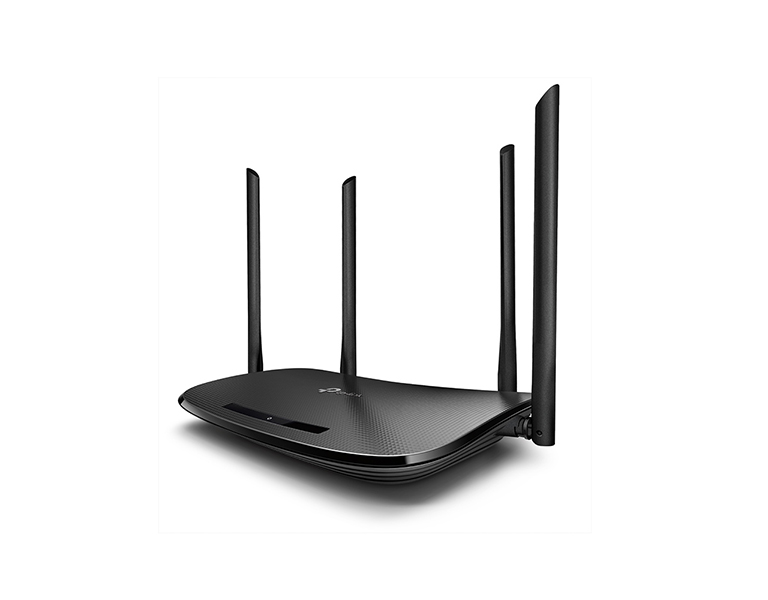

TP-LINK Archer VR300 V2 AC1200 Wireless VDSL/ADSL Modem Router
| • Parental Controls: manage responsible internet access for your children • Guest Network: provides separate access for guests while securing the home network • Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding • Quality of Service: prioritizes network traffic by device or application • IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application • IPv6: compatible with IPv6 (Internet Protocol version 6) • Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO) |
Upgrade AC Wi-Fi to Enjoy Wireless Entertainment
As a powerful DSL modem router, the Archer VR300 makes full use of its Wi-Fi abilities by providing combined dual band Wi-Fi speeds of up to 1200Mbps. 300Mbps on 2.4GHz is perfect for everyday surfing and emailing, while 867Mbps on 5GHz provides lag-free HD streaming and gaming.
Superfast VDSL Broadband
The latest VDSL2 technology allows the Archer VR300 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+. The Archer VR300 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.
External Antennas Greatly Expand Wireless Coverage
Four external antennas with advanced connection technology allow you to maintain impressive speeds, even over greater distances. This means that you can enjoy incredible wireless coverage and reliability in any part of your large home or office.
Easy Setup and Management
Set up the Archer VR300 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
Remote Control
With TP-Link Tether App and DDNS, you can control your home network wherever you are.
Safe, Family-Friendly Surfing
Parental Controls manage when and how connected devices can access the internet. Guest Network keep your main network secure while creating a separate network for guests and visitors.
6kV Lightning Protection
6KV Lightning Protection provides shields against electrical damage caused by thunderstorms so that you can enjoy your life even in bad weather.
| HARDWARE FEATURES | |
| Ethernet Ports | 3 10/100Mbps RJ45 LAN Ports 1 10/100Mbps RJ45 WAN/LAN Port 1 RJ11 Port |
| Button | WPS Button, Reset Button, Power On/Off Button |
| External Power Supply | 12V/1.0A |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards | ITU G.993.2, Up to 30a profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs) |
| ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions(WxDxH) | 230 x 144 x 37 mm |
| Antenna Type | 4 x 5dBi Fixed Omni-Directional Antennas |
| Antenna Gain | 4 x 5dBi for 2.4GHz and 4 x 5dBi for 5GHz |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 867Mbps at 5GHz, 300Mbps at 2.4GHz |
| Transmit Power | 2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP) |
| Wireless Fuction | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
| SOFTWARE FEATURES | |
| Operation Modes | VDSL/ADSL Modem Router, Wireless Router |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP, TP-Link |
| VPN | IPSec VPN |
| ATM/PPP Protocols | ATTM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Security | NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Advanced Functions | Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| Management | Web Based Configuration (HTTP / HTTPS ), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
| Guest Network | 2.4GHz guest network, 5GHz guest network |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| Protocols | Supports IPv4 and IPv6 |
| OTHERS | |
| Certification | CE, RCM, RoHS |
| Package Contents | DSL Modem Router External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0°C~40°C(32°F~104°F) Operating Temperature: -40°C~70°C(-40°F~158°F) Operating Humidity: 10%~90% non-condesnsing Storage Humidity: 5%~90% non-condensing |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
