Ubiquiti UNAS-PRO, 10G Networking For Large-Scale File Storage And Sharing
Ubiquiti UNAS-PRO, 10G Networking For Large-Scale File Storage And Sharing
UniFi UNAS Pro from Ubiquiti Networks is simple network data storage solution that fits seamlessly into any UniFi ecosystem. Thanks to multi-gigabit transmission via an optical SFP+ port, it is an ideal choice for medium and larger enterprises. The UniFi software offers wide backup options and clear management with a simple user interface. It allows backup of files from iOS, Android, macOS and Windows devices and supports backups to other UNAS drives, SMB or cloud services such as Google Drive and OneDrive. Data is secured by encryption.
Key Features

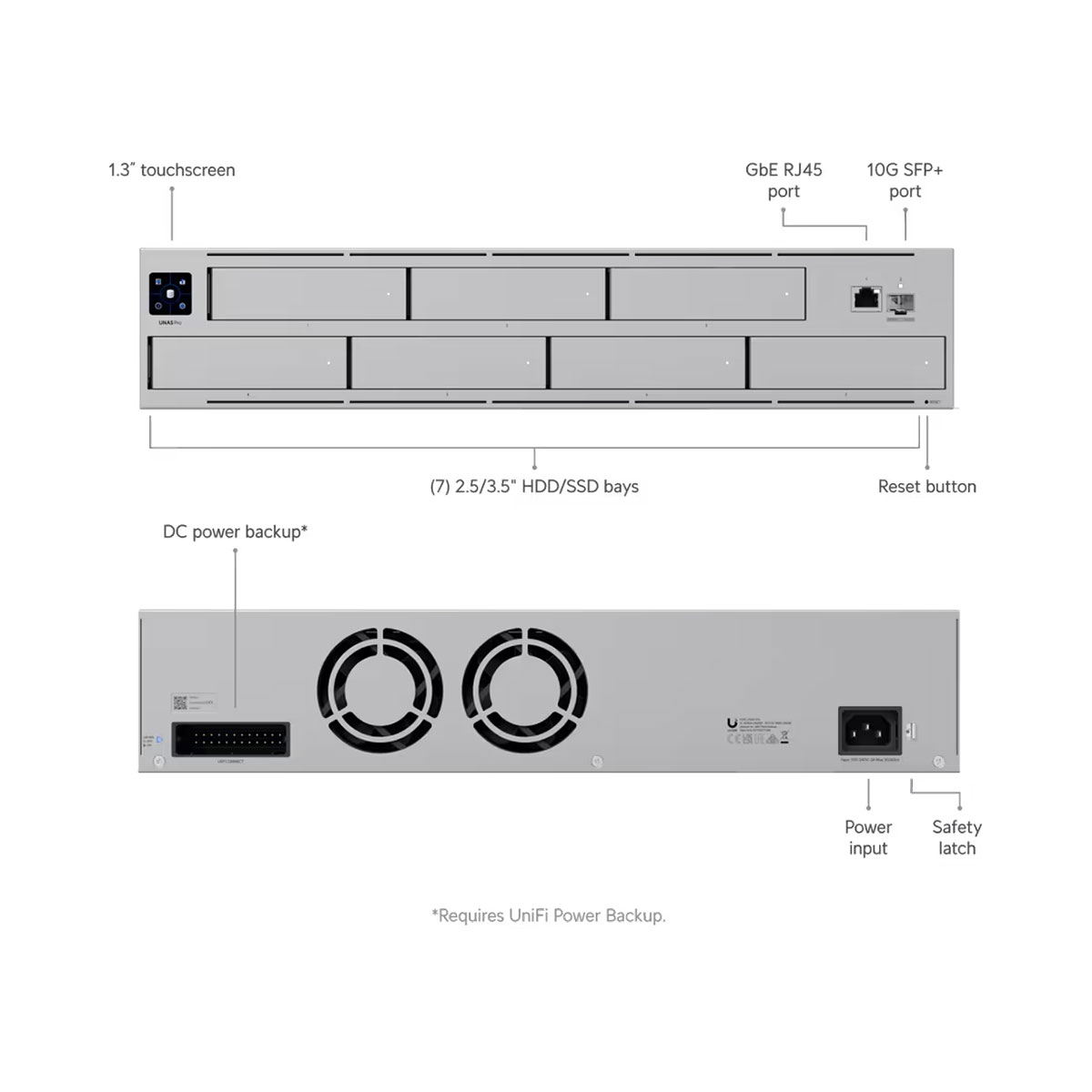

• (1) 10G SFP+ uplink and (1) GbE RJ-45 port
• Data protection with RAID storage technology
• Backup power readiness for UniFi
• 1.3" touch display for management
• Bluetooth 4.1 support
• Maximum power consumption of 135 W

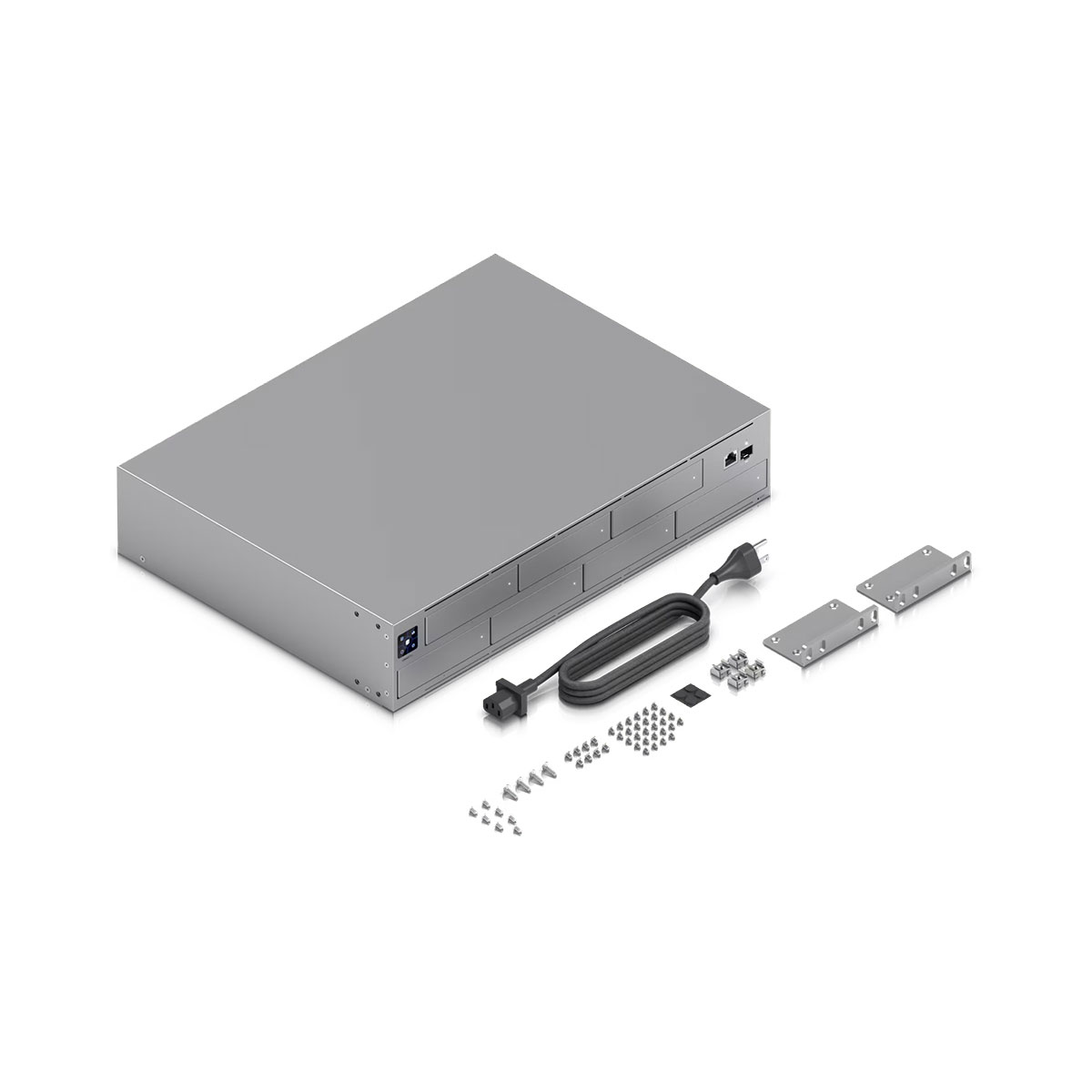

Package Contents
• Device
• Power cable
• Rack-mounting accessories
| Overview | |

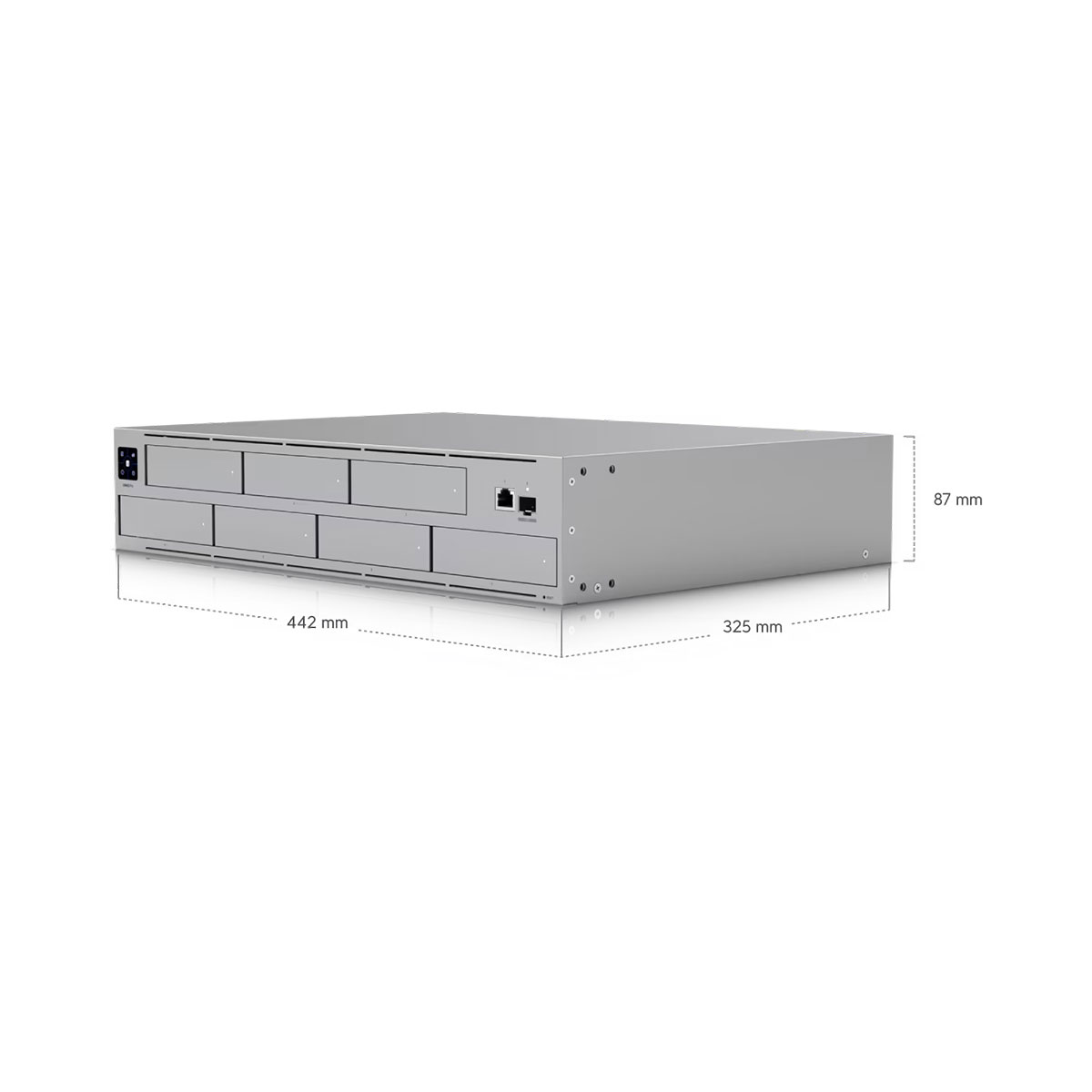

| Dimensions | 442.4 x 325 x 87.4 mm |
| Storage Capacity | (7) 3.5" drive bays |
| Networking Interface | (1) 10G SFP+ (10G/1G) (1) GbE RJ45 (1G/100M/10M) |
| Power Redundancy | ✓ |
| Form Factor | Rack mount (2U) |
| Hardware | |
| Hard Drive Capacity | (7) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 135W |
| Max. Power Consumption | 160W |
| Power Method | (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 200W |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Display | 1.3" touchscreen |
| Weight | Without mounting brackets: 9.2 kg With mounting brackets: 9.5 kg |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| LEDs | Ethernet - ✓ SFP+ - ✓ HDD - ✓ RPS - ✓ |
| Ambient Operating Temperature | -5 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, IC, Anatel: 01886-25-08356 |
| Software | |
| Application Requirements | UniFi Drive - Version 1.16.0 and later |
