Description

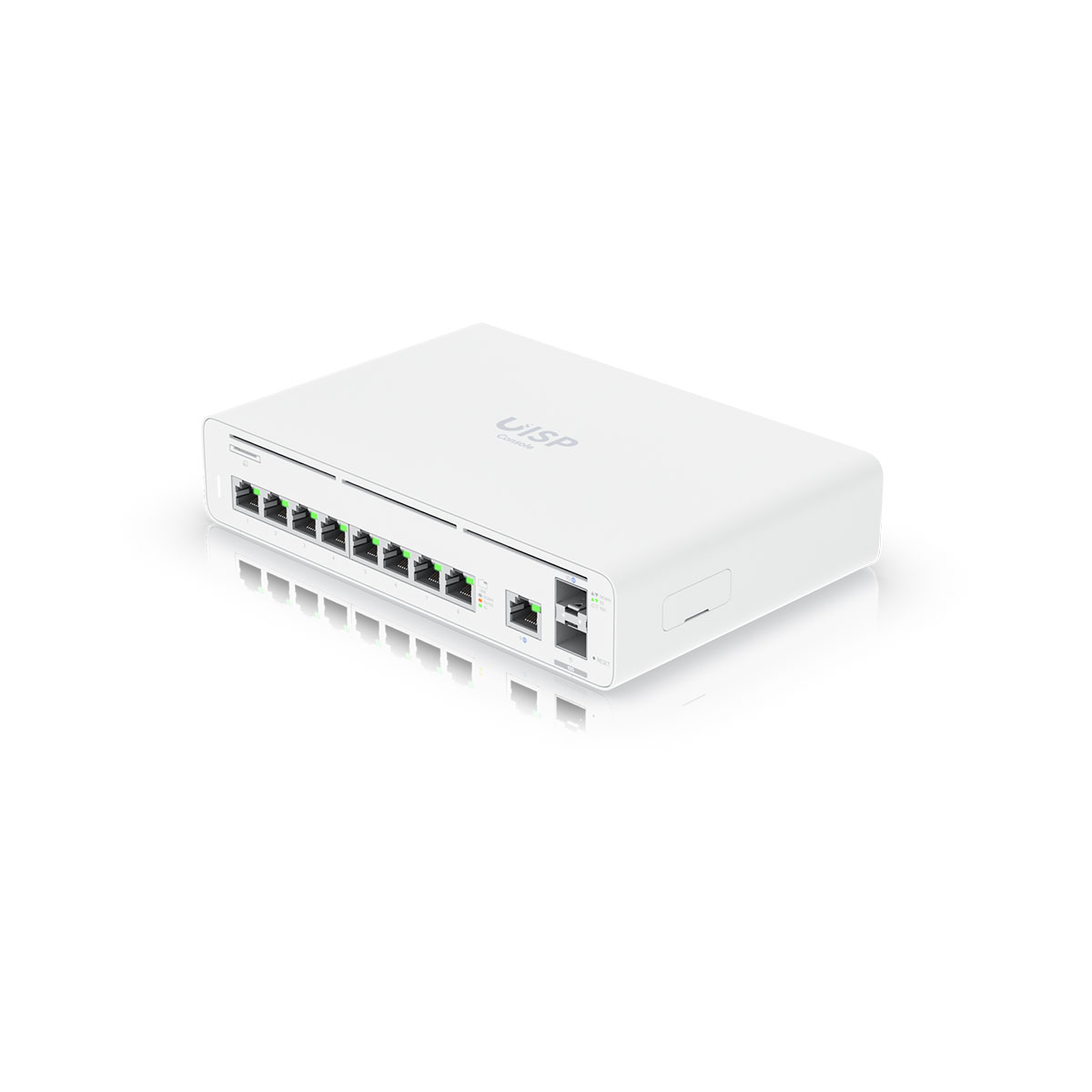

UISP-Console is the ideal router for deployment between ISP providers for their clients who require the higher transmission speed that 10 Gbps can offer. It is a router without fans, with 9x Gigabit LAN, 2x SFP+ ports, of which 1x Gigabit LAN and 1x SFP+ are designated as WAN only. UISP Console is a cost-effective solution where you need to provide 10-Gigabit speed quickly and cheaply. The UISP Router is ONLY managed by the UISP App, a centralized platform where you can monitor and manage all your UISP devices.
Key Features

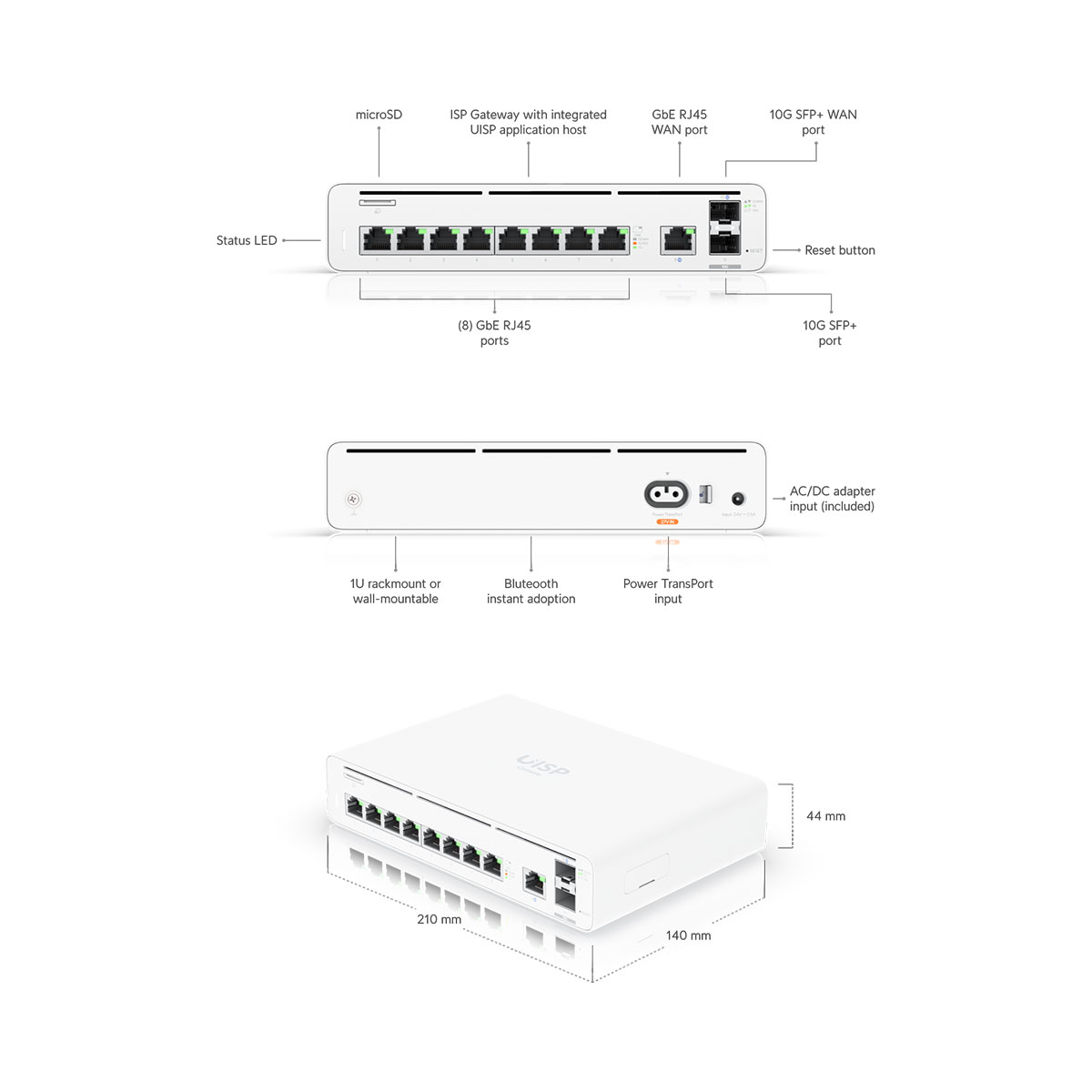

- (8) Gigabit LAN + (1) Gigabit WAN
- (1) SFP+ port (LAN) + (1) SFP+ port (WAN)
- Silent operation without a fan
- Compact, durable metal chassis

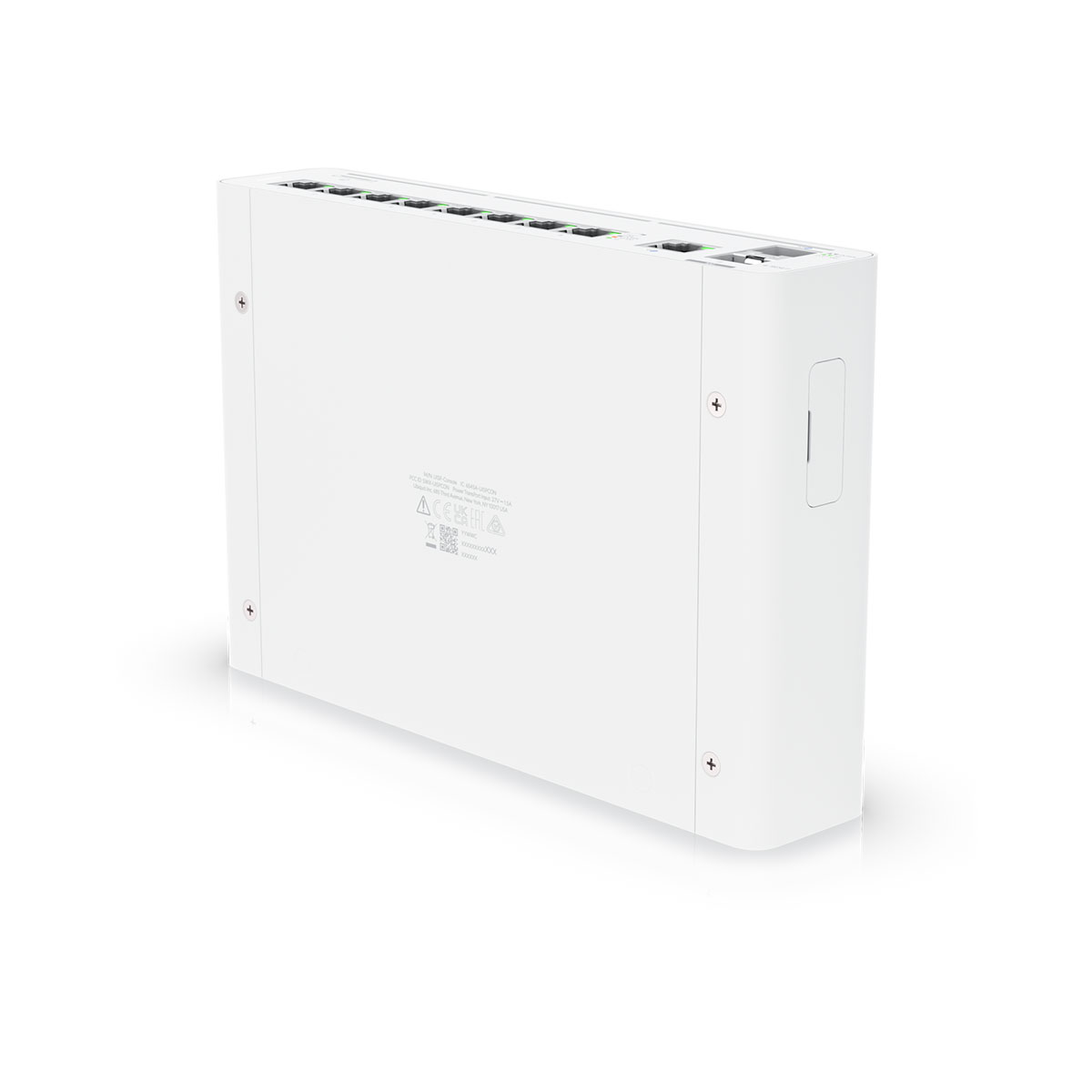

- Mounting on the wall - the kit is included in the package
- Easy setup using Bluetooth technology via mobile UISP app
Package contents
- Device
- Power cord
- Power adapter 24 V/2.5 A
- Kit for mounting on the wall and in a 19" rack
Characteristics
| Mechanical | |
| Dimensions | 210.4 x 140.2 x 43.7 mm |
| Weight | 1.5 kg |
| Enclosure material | SGCC steel, polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 4 GB DDR4 |
| Onboard flash storage | 16 GB eMMC |
| Onboard storage | 128 GB SSD |
| Card slot | (1) microSD (Up to 2TB) |
| Networking interface |
(8) LAN: GbE RJ45 ports (1) WAN: GbE RJ45 port |
| Management interface | Ethernet In-band Bluetooth |
| Power method | (1) External AC/DC adapter (1) Power TransPort DC input 27V DC, 1.5A |
| Power supply | 24V DC, 2.5A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Operating temperature | -10 to 50° C |
| Operating humidity | 5 to 95% non-condensing |
| Certications | CE, FCC, IC |
| NDAA Compliant | Yes |
| LEDs | |
| System | Status |
| RJ45 data ports | Speed/link/activity |
| SFP+ data ports | Speed/link/activity |
