MikroTik RB960PGS 800MHz CPU, 128MB RAM, 5xGLAN, Level 4
Product Code:
RB960PGS
97,00 €
(Includes VAT 24%)
Sales price without VAT:
78,23 €
Available
Next pickup date: 07/07/2025

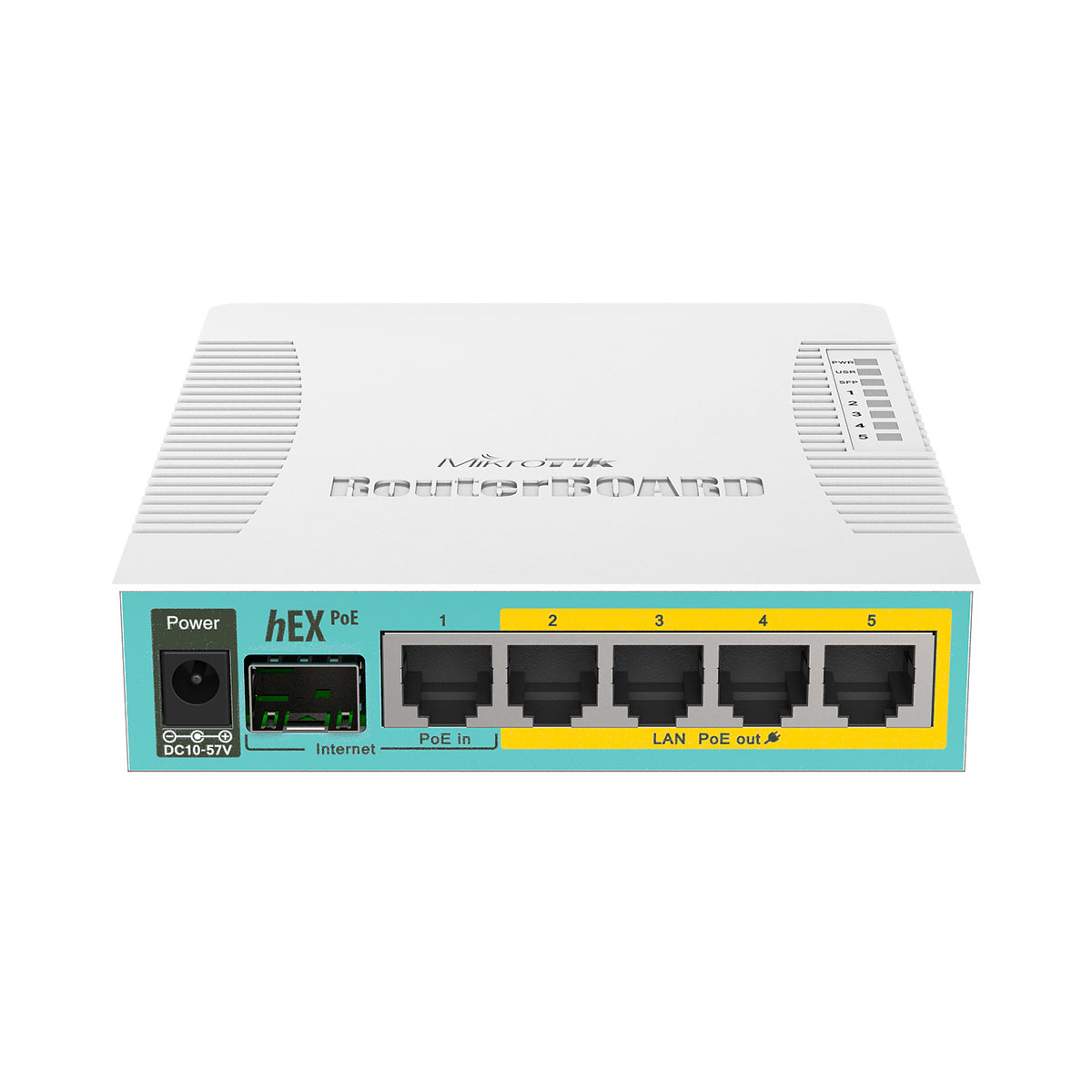

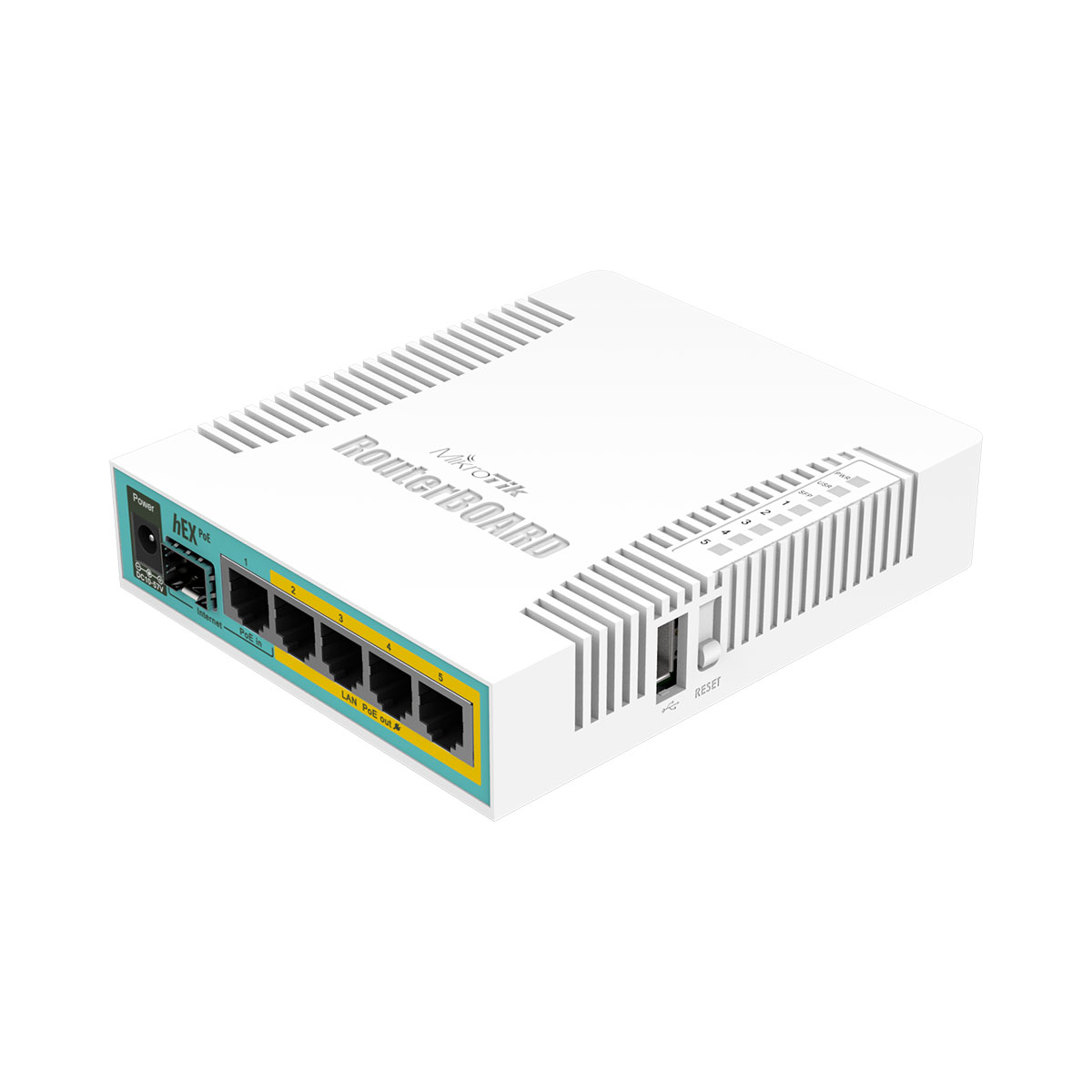

MikroTik RouterBOARD RB960PGS, hEX PoE, 800MHz CPU, 128MB RAM, 5xGLAN, USB, Level 4
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
hEX PoE is a five port gigabit ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
Characteristics
| Specifications | |
| Product code | RB960PGS |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 60°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
| PoE out | 802.3af/at |
| PoE-out ports | Ether2-Ether5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 450 mA |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
| Max power consumption | 54 W |
| Max power consumption without attachments | 6 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Fiber | |
| SFP ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
| Package Contains | |

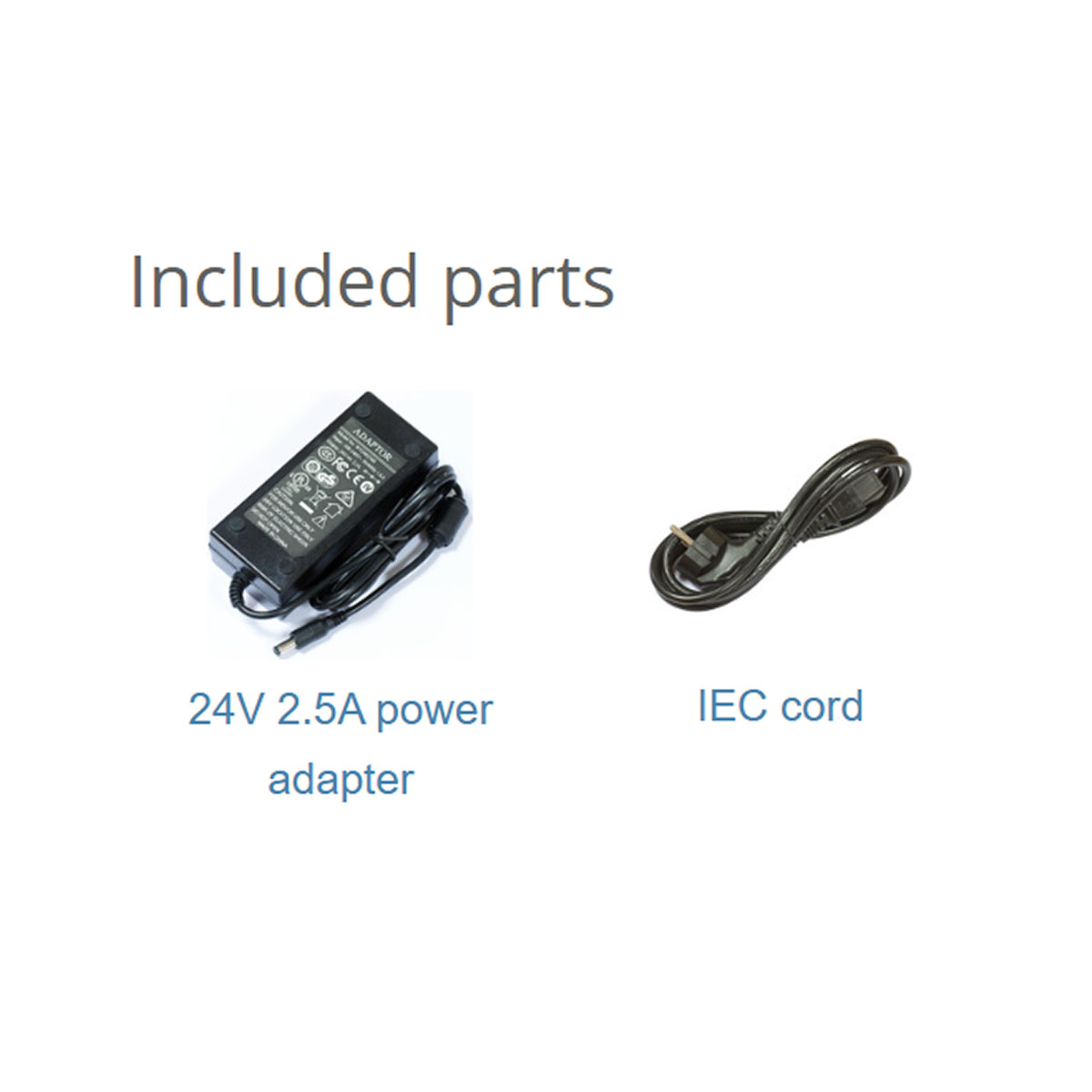

| Inluded parts | • 24V 2.5A power adapter • IEC cord |
