MikroTik L23UGSR-5HAXD2HAXD Dual-Band WiFi6, 4X MMCX, RouterOS L4
Remember the thrill of crafting your custom solutions with our RouterBoard series? Get ready for even more DIY achievements: we’re refreshing the RB product line with Wi-Fi 6!

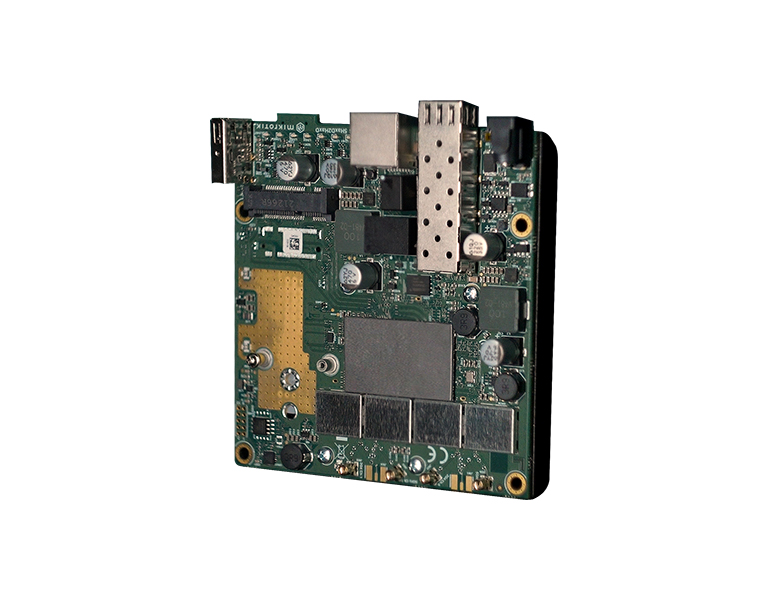

The new L23UGSR is a dual-band Wi- Fi 6 upgrade of the popular RB922 DIY router. You can use it to build custom low-cost outdoor access points or CPEs – for your home, office, homelab needs or even to launch your own products, such as smart vending machines or ticket stations! Thousands of people across the globe choose the RouterBOARD series to build their products because MikroTik offers no subscriptions, no paywalls, no weird licensing or royalty deals... You buy it – you own it!
This modular board features a modern Qualcomm Maple CPU based on the ARM architecture, a USB port for extra storage or other needs, Gigabit Ethernet with PoE-in, 2.5 Gigabit SFP for fiber connectivity, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the bottom! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!
A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols for distances up to 30 kilometers.*
The four MMCX connectors enable further customization with an endless variety of antennas you could use. Add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It’s important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
| Specifications | |
| Product code | L23UGSR-5HaxD2HaxD-NM |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |

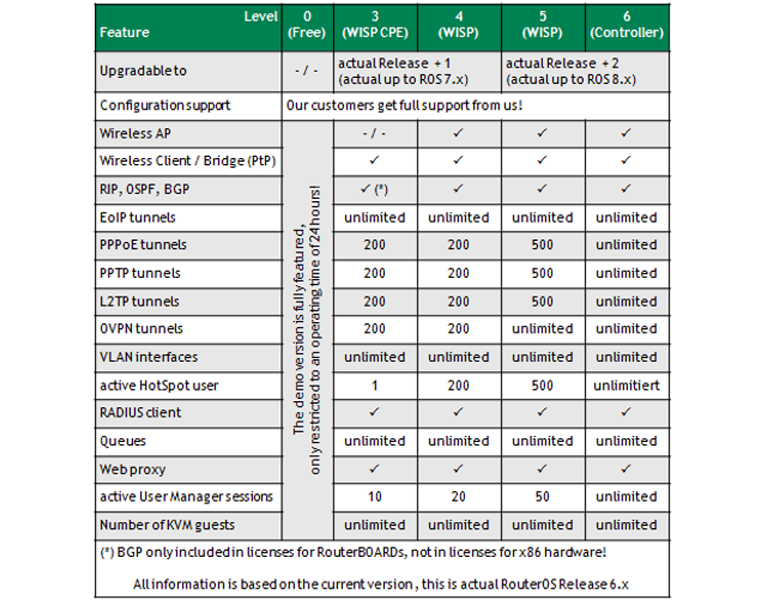

| License level | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 25 W |
| Max power consumption without attachments | 12 W |
| Wireless | |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 (2.5G supported) |
| Fiber | |
| SFP ports | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1.5 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification & Approvals | |
| Certification | CE, FCC, IC, ROHS |
| IP | 66 |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
