MikroTik RB912UAG-5HPnD, 802.11a/n, miniPCIe, RouterOS L4
The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports
| Specifications | |
| Product code | RB912UAG-5HPnD |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 105 x 105mm |

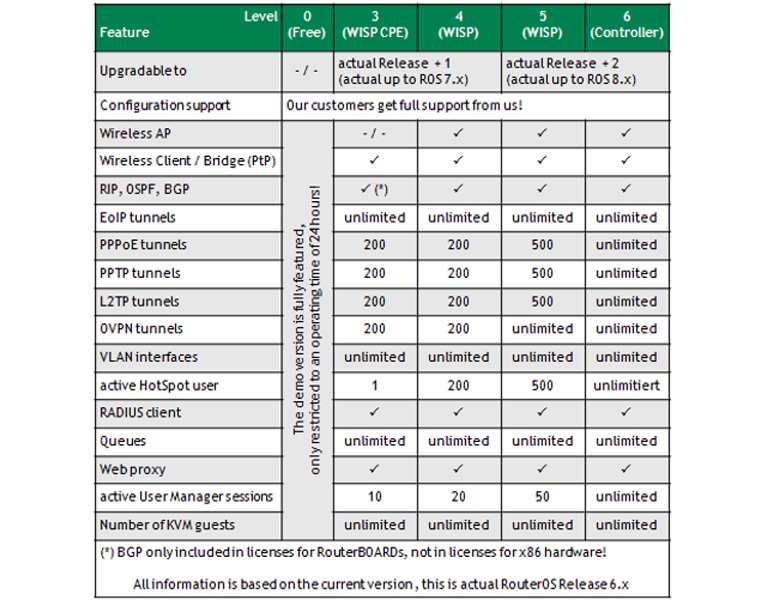

| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 12 W |
| Wireless | |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Wireless 5 GHz chip model | AR9342 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, FCC, IC, EAC, ROHS |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
