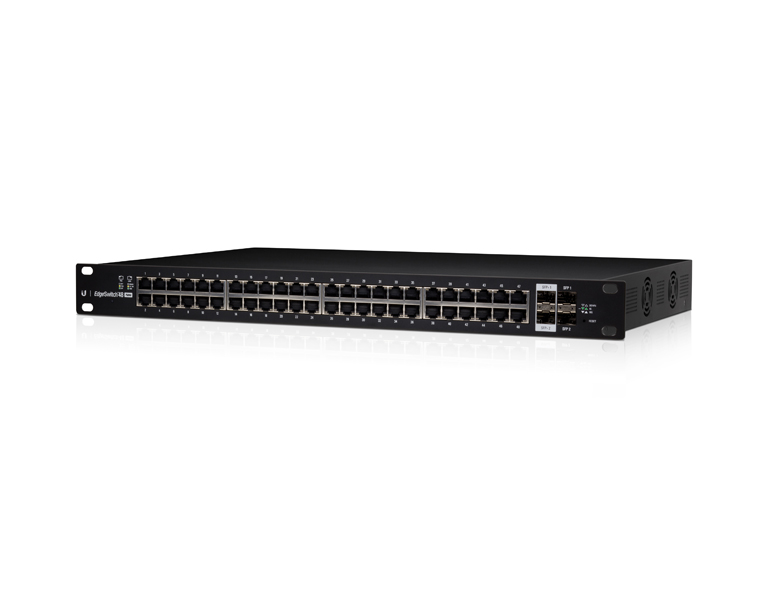

Ubiquiti ES-48-750W EdgeSwitch 48 Ports, 750W Model
Product Code:
ES-48-750W
1.250,00 €
(Includes VAT 24%)
Sales price without VAT:
1.008,06 €
7 Days
Ubiquiti ES-48-750W EdgeSwitch 48 Ports, 750W Model
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
| • (48) Gigabit RJ45 Ports • (2) SFP+ Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 70 Gbps • Switching Capacity: 140 Gbps • Forwarding Rate: 104.16 Mpps • Maximum Power Consumption: 750W • Supports POE+ IEEE 802.3at/af and 24V Passive PoE • Rackmountable |
Advanced Switching
Technology for the Masses
Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The EdgeSwitch provides total, non-blocking throughput:
• 8-Port Model Up to 10 Gbps
• 16-Port Model Up to 18 Gbps
• 24-Port Models Up to 26 Gbps
• 48-Port Models Up to 70 Gbps
PoE+ Flexibility
The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.
By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing uplinks of up to 10 Gbps.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry -standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality
• Static Routing, Policy-Based Routing
• DHCP Server Functionality
Characteristics
| Specifications | |
| Dimensions | 485 x 43.7 x 374.6 mm |
| Weight | 6.5 kg |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Max. Power Consumption | Includes PoE Output: 750W Excludes PoE Output: 64W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 750W DC |
| LEDs Per Port | RJ45 Data Ports: PoE, Speed/Link/Activity SFP Data Ports: Speed/Link/Activity |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature | -5 to 40° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE Per Port | |
| PoE Interfaces | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50-57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
