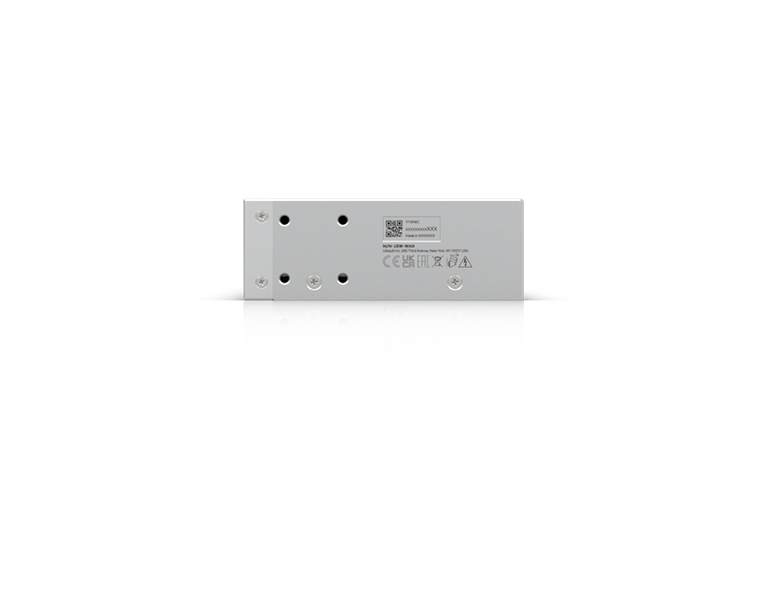

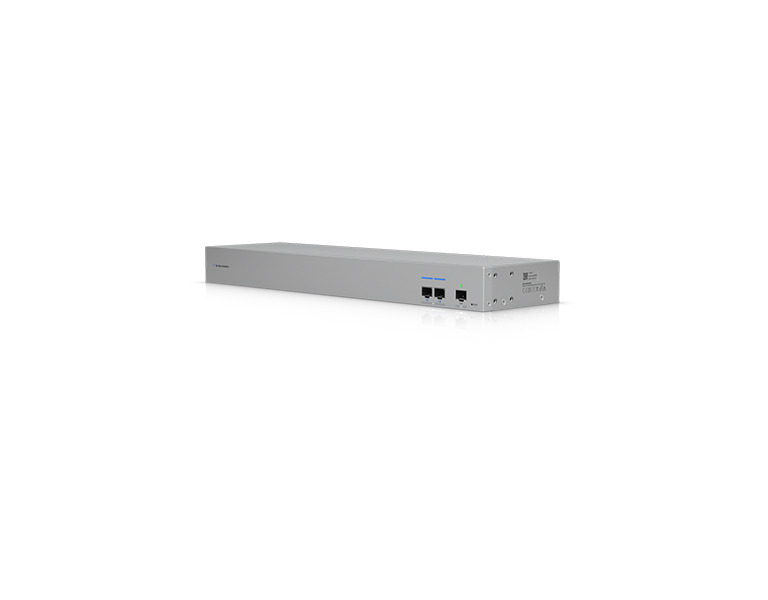

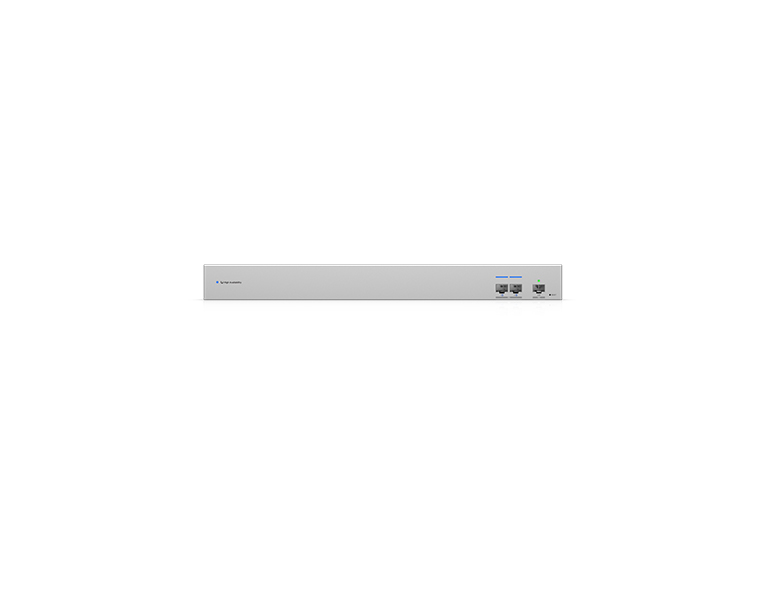

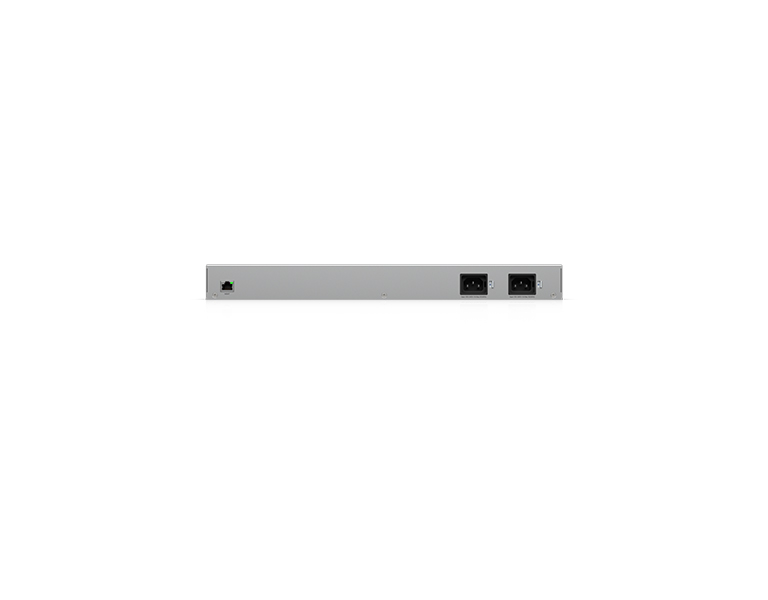

Ubiquiti USW-WAN, 10G SFP+ WAN Switch

Product Code:
USW-WAN
318,00 €
(Includes VAT 24%)
Sales price without VAT:
256,45 €
Available

Ubiquiti USW-WAN, 10G SFP+ WAN Switch

Shipping cost calculation:
Quantity
Category:
Manufacturer:
Warranty:
24 Months
Description
Characteristics
Downloads
Description

Ubiquiti USW-WAN is a 10-Gigabit WAN switch designed for high-availability networks. It aggregates the connection of 2 UniFi Cloud Gateways in Shadow Mode into a single output towards the ISP*, ensuring redundancy in the event of a failure of one of them. The switch is equipped with (2) 10G/1G SFP+ ports for connecting UniFi Cloud Gateways and (1) 10G/1G SFP+ port for WAN connectivity. Power is supplied by two integrated redundant 230V AC power supplies. A (1) 1G/100M/10M Management port is available for device management.

* If you want to use both a primary and backup uplink, a pair of USW-WAN switches is required.

Shadow Mode for High Availability

Shadow Mode ensures gateway high availability by seamlessly transferring gateway and management functionality to a secondary unit in the event of a primary unit failure. Leveraging Virtual Router Redundancy Protocol (VRRP) and firewall connection state tracking, this transition is virtually invisible to end users, maintaining uninterrupted productivity. The mode is available for UDM-Pro-Max, UDM-Pro, UDM-SE, and EFG models with UniFi OS version 4.0.6 or later, and always requires a pair of identical models.

Shadow Mode is just one of the high-availability features.

Management via UniFi Network Server

The USW-WAN does not have a built-in web interface but is centrally managed via the UniFi Network Server with support from the UniFi mobile app. The UniFi Network Server and mobile app allow administrators to configure and monitor virtually all switch features through a graphical user interface from anywhere.

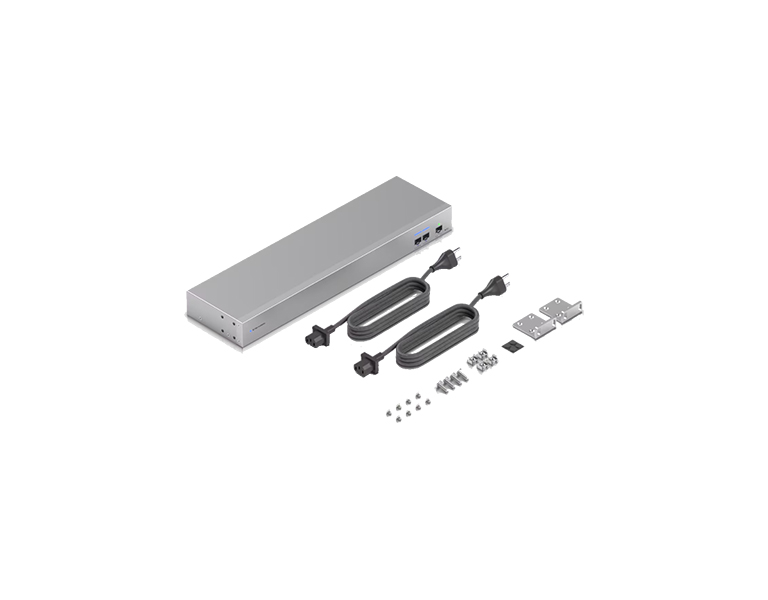

Package Contents

  • Device
  • (2) 230V AC Power Cables
  • Rack Mount Brackets
Characteristics
Overview
Dimensions 442.4 x 120 x 43.7 mm
Port Layout
    1 GbE RJ45 1
(1G/100M/10M)
    10G SFP+ 3
(10G/1G)
Redundancy (2) AC inputs
Form Factor Rack mount (1U)
Performance
Switching Capacity 20 Gbps
Total Non-Blocking Throughput 10 Gbps
Forwarding Rate 15 Mpps
Hardware
Max. Power Consumption 13W
Power Method (2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply (2) AC/DC, internal, 36W
Supported Voltage Range 100—240V AC
Management Ethernet
Weight Without mounting brackets: 2.2 kg
With mounting brackets: 2.3 kg
Enclosure Material SGCC steel
Mount Material SGCC steel
ESD Protection Air: ± 16kV, contact: ± 22kV
Ambient Operating Temperature -5 to 40° C
Ambient Operating Humidity 10 to 90% noncondensing
LEDs
    Ethernet
    SFP+
    System
Certifications CE, FCC, IC
NDAA Compliant
Software
Application Requirements
    UniFi Network Version 9.1.119 and later
