Ubiquiti USW-WAN-RJ45, 10 GbE WAN Switch

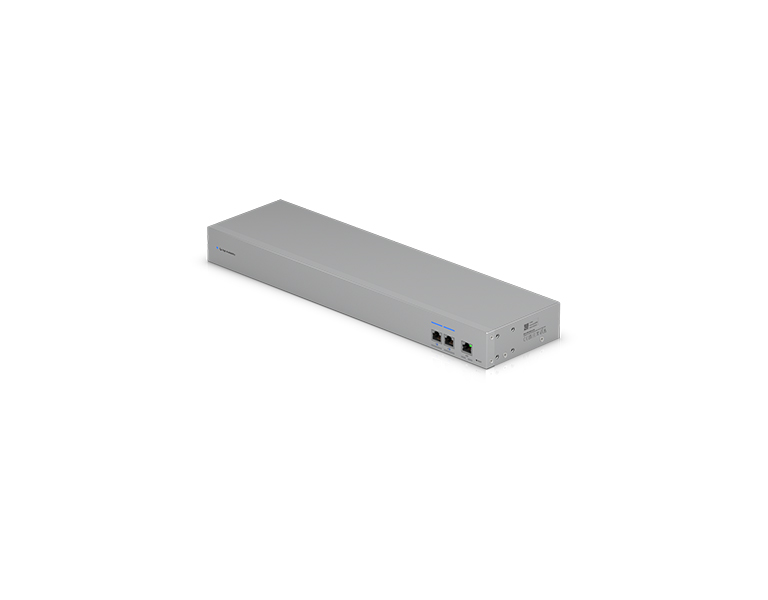

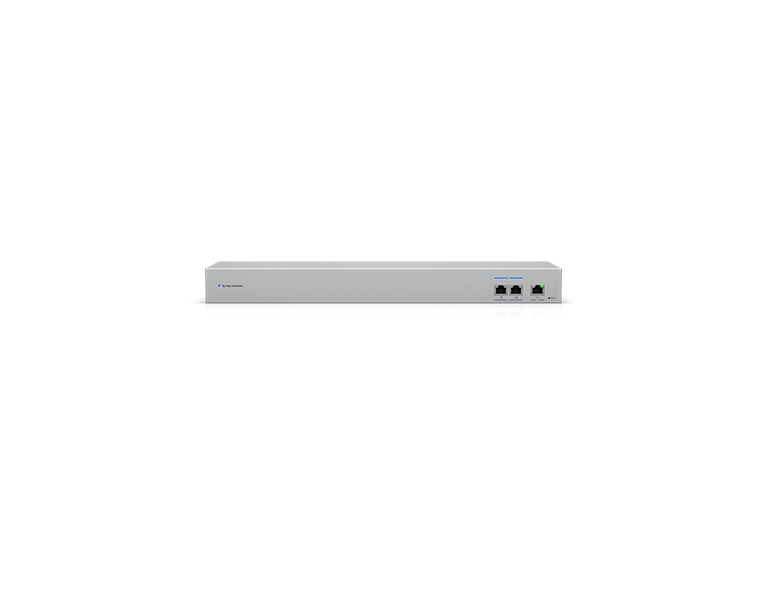

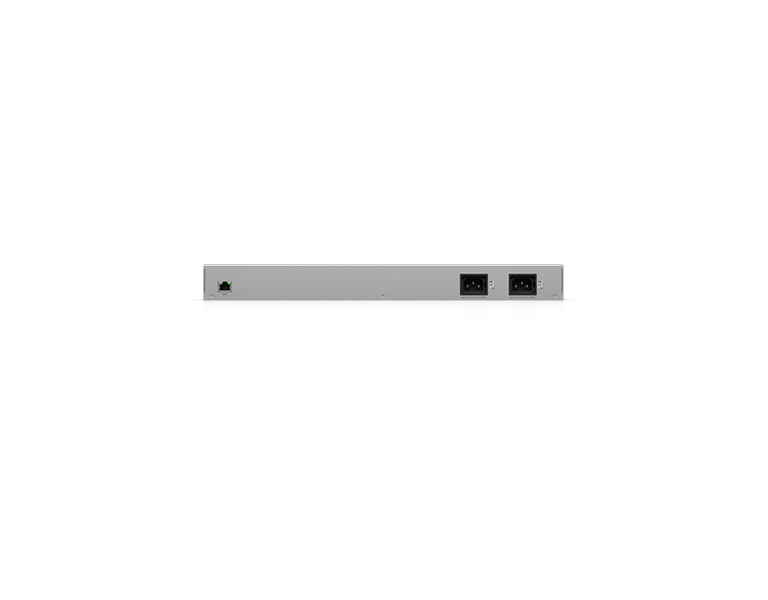

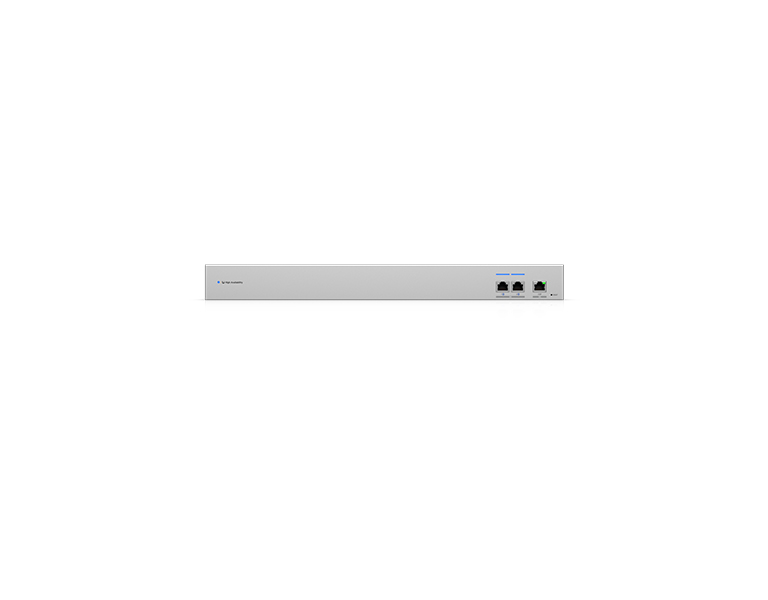

Ubiquiti USW-WAN-RJ45 is a 10-Gigabit WAN switch designed for high-availability networks. It aggregates the connection of 2 UniFi Cloud Gateways in Shadow Mode into a single output towards the ISP*, ensuring redundancy in the event of a failure of one of them. The switch is equipped with (2) 10G/5G/2.5G/1G/100M ports for connecting UniFi Cloud Gateways and (1) 10G/5G/2.5G/1G/100M port for WAN connectivity. Power is supplied by two integrated redundant 230V AC power supplies. A (1) 1G/100M/10M Management port is available for device management.

* If you want to use both a primary and backup uplink, a pair of USW-WAN-RJ45 switches is required.

Shadow Mode for High Availability:

Shadow Mode ensures gateway high availability by seamlessly transferring gateway and management functionality to a secondary unit in the event of a primary unit failure. Leveraging Virtual Router Redundancy Protocol (VRRP) and firewall connection state tracking, this transition is virtually invisible to end users, maintaining uninterrupted productivity. The mode is available for UDM-Pro-Max, UDM-Pro, UDM-SE, and EFG models with UniFi OS version 4.0.6 or later, and always requires a pair of identical models.

Shadow Mode is just one of the high-availability features.

Management via UniFi Network Server:

The USW-WAN-RJ45 does not have a built-in web interface but is centrally managed via the UniFi Network Server with support from the UniFi mobile app. The UniFi Network Server and mobile app allow administrators to configure and monitor virtually all switch features through a graphical user interface from anywhere.

Package Contents:

• Device
• (2) 230V AC Power Cables
• Rack Mount Brackets
