Description
The device comes with 2 Years of free RMS service

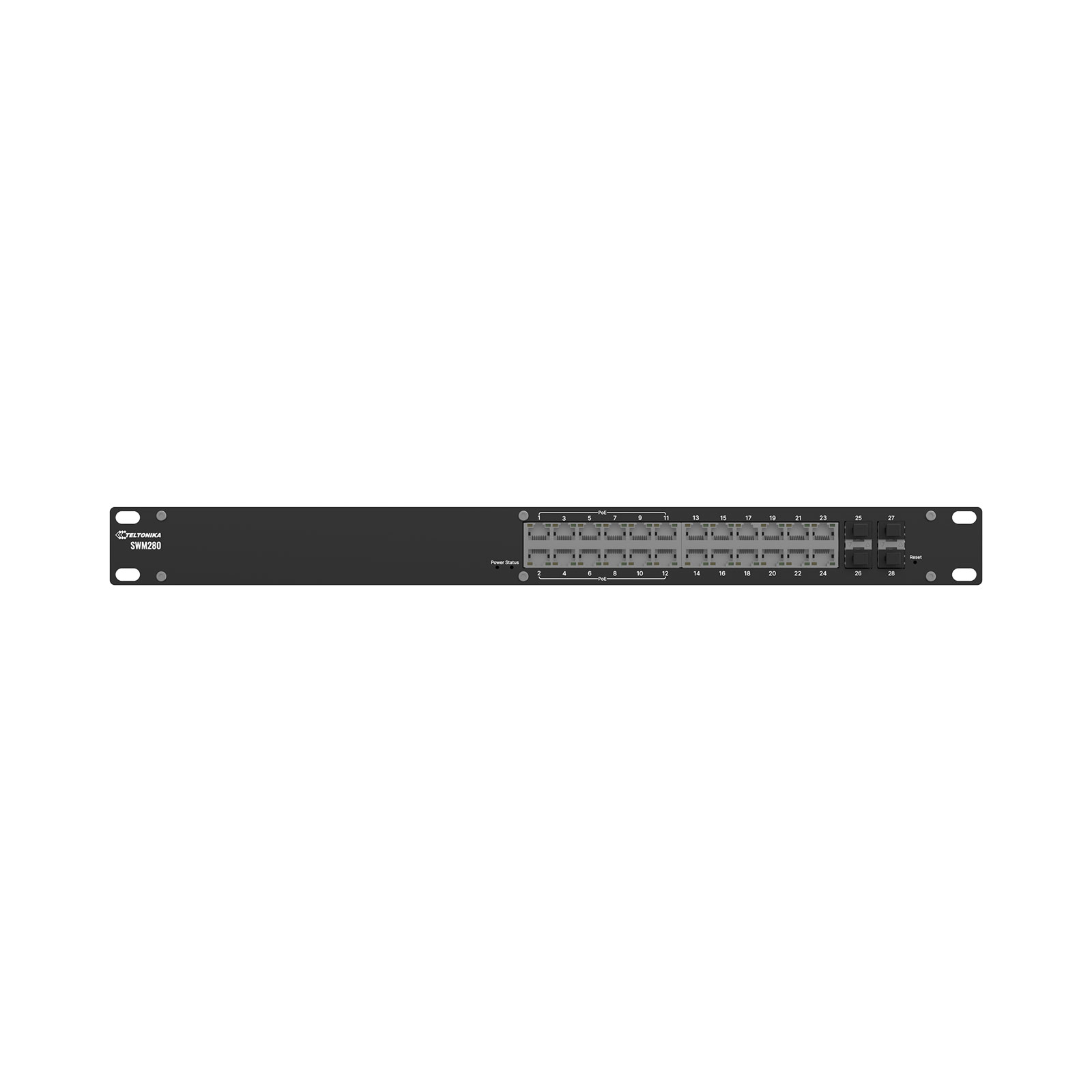

The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.
Characteristics
| KEY FEATURES | |
| Hardware | |
| RAM | Realtek, single core, 500MHz, MIPS-4KEc |
| Flash storage | 128 MB, DDR3 |

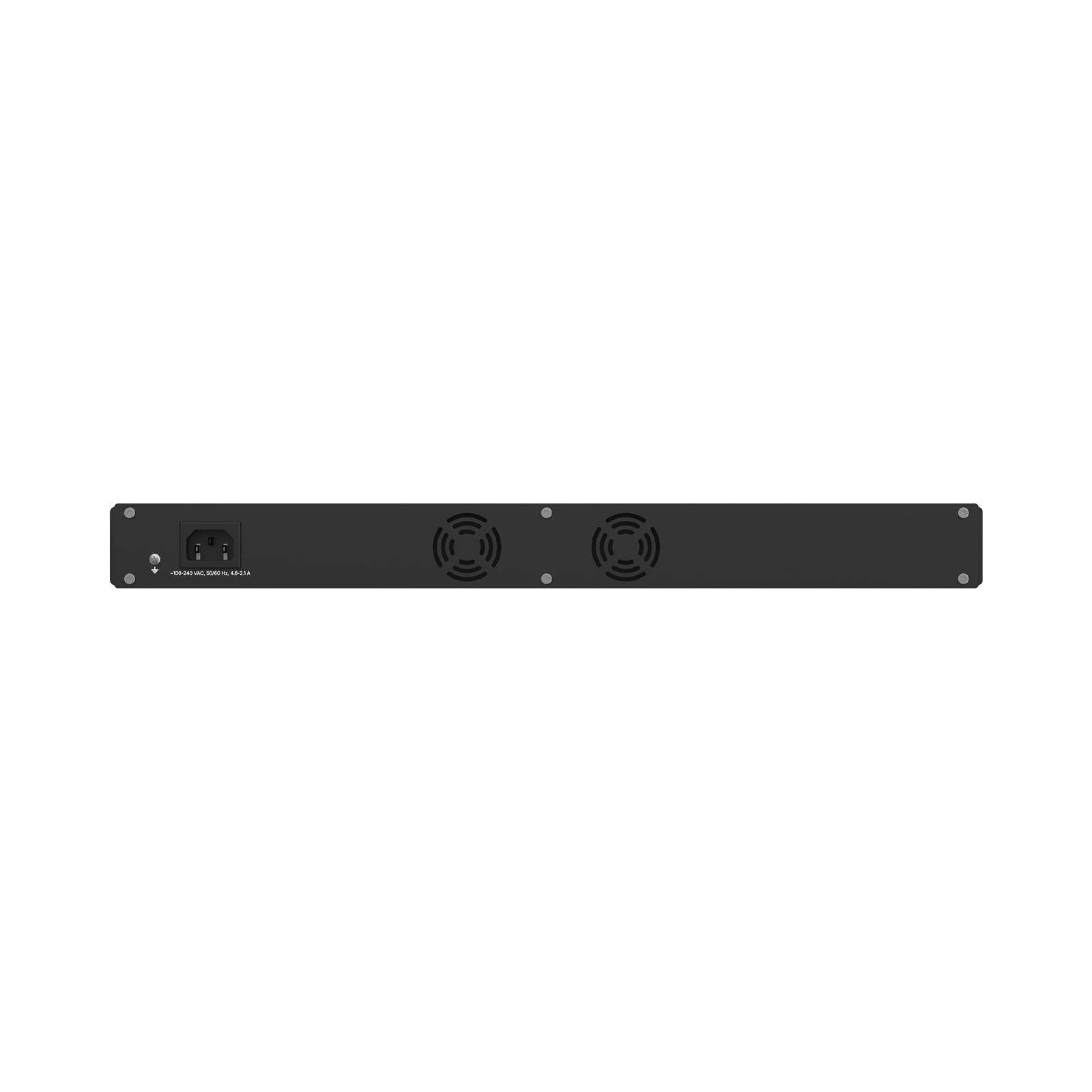

| Powering options | C14 connector |
| Input voltage range | 100-240 VAC, 50/60 Hz |
| Input voltage range for PoE | 44 – 57 VDC |
| Power consumption | Idle: 7.5 W / Max: 325 W / PoE Max: 300 W |
| PoE standart | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Status LEDs | 1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs |
| Ethernet | 24 x RJ45 ports, 10/100/1000 Mbps |
| SFP | 4 x SFP ports |
| Ingress protection rating | IP30 |
| Operating temperature | 0 °C to 50 °C |
| Dimensions (W x H x D) | 483 x 44 x 234 mm |
| Weight | 1770 g |
| Mounting options | Rack mounting kit |
| Industrial Protocols | |
| Profinet | Profinet Class B conformance (available with optional order code) |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 56 Gbps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
| Services | |
| Supported services | EtherNet/IP, SNMP V2, V3, LLDP, Network Management |
| Network | |
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| QOS | |
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
| Diagnostics | |
| Tools | Cable diagnostic, ping, traceroute, nslookup |
| Ping reboot | Capability to restart PoE in a specific port |
| Package Contents | • SWM280 L2+ managed switch • QSG (Quick Start Guide) • Packaging box |
