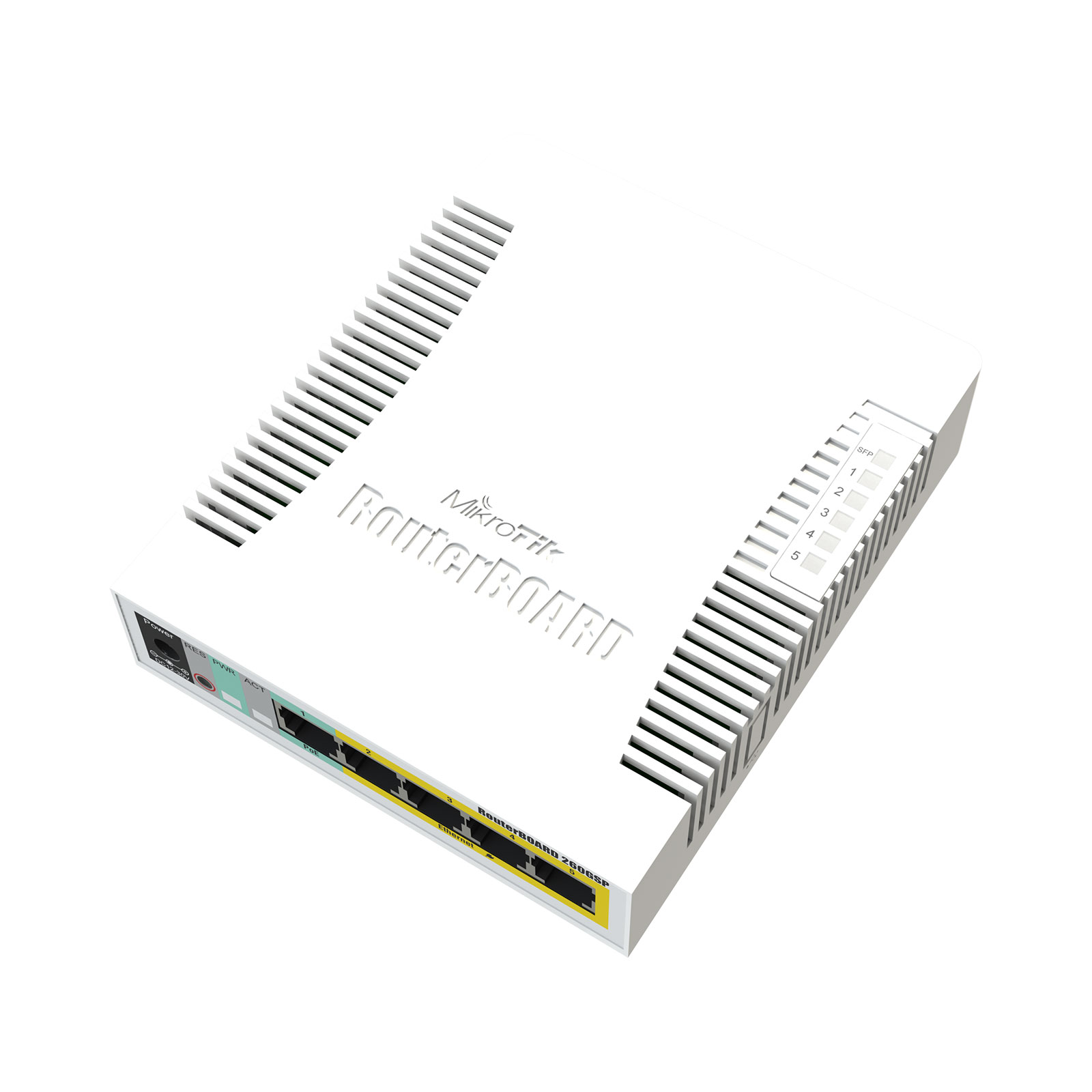

MikroTik RB260GSP 5x Gigabit PoE out Ethernet Smart Switch, SFP cage
Product Code:
CSS106-1G-4P-1S
Description
Characteristics
Downloads
Description
The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.
Characteristics
| Specifications | |
| Product code | CSS106-1G-4P-1S |
| Dimensions | 113 x 139 x 28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether2-Ether5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Fiber | |
| SFP DDMI | Yes |
| SFP ports | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
