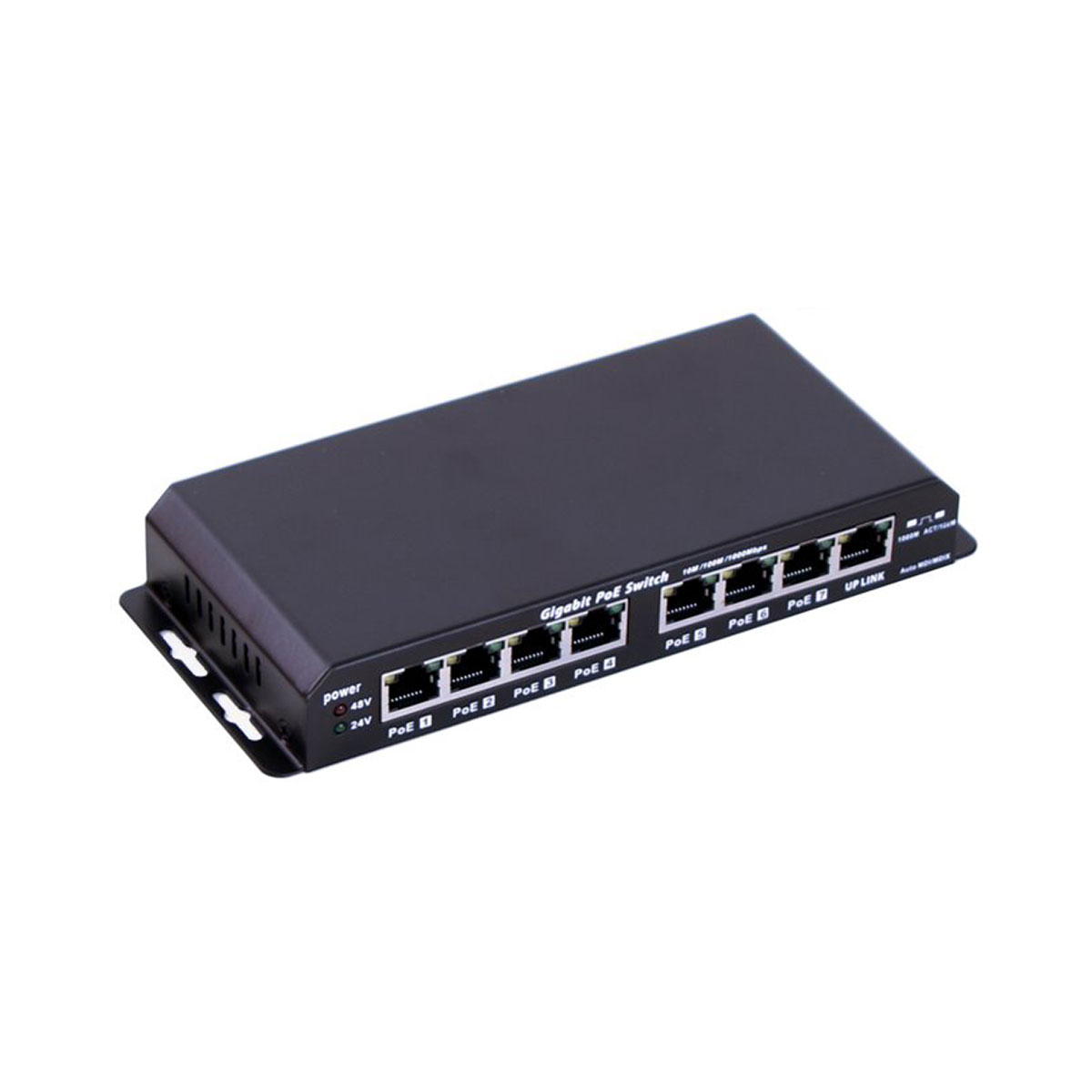

MaxLink POESG-8-7P 8 ports switch 10/100/1000 Mbps with 7 PoE ports and power adapter
Product Code:
POESG-8-7P
Description
Characteristics
Description
We would like to introduce you a very versatile, very compact desktop (option to purchase a rack mount) PoE switch labeled POESG-8-7P. This switch has 8x 10/100/1000Mbps ports, with seven ports using PoE Out and plugging/powering any active PoE-enabled element.
Features:
• 8-port 10/100/1000Mbps switch
• 7 ports with PoE - Mode A and Mode B
-Mode A uses 1,2,3,6 for conduction
-Mode B uses a core line of 4,5,7,8 for conduction
• Current protection on each port
-Mode A (650 mA / port)
-Mode B (1000 mA / port)
• Maximum total current 2.5A
• Wide range of input / output voltage - 18V - 56V DC (24V adapter included), output voltage equal to input for both modes
• Ability to select POE Mode A / Mode B / OFF for each port separately
Characteristics
| Specifications | |
| Without fan | Yes |
| Chassis | Metal |
| Operating temperature | 0-40°C |
| Storage temperature | -40 to 70°C |
| Operating Humidity | 10% - 80% |
| Storage Humidity | 5% - 90% |
| Dimensions | 192 x 82 x 27mm |
| LAN speed | (8) 10/100/1000Mbps |
| Supply Type | DC connector |
| PoE standards | Passive 24V, Active 48V |
| Number of PoE ports | 7 |
| PoE budget | 90W |
| Supply via connector / terminal | 18 .. 56V DC |
| Certification | CE & FCC |
