Description
.:ATTENTION!! THE PACKAGE DOES NOT INCLUDE A POWER SUPPLY WHICH MUST BE PURCHASED SEPARATELY ACCORDING TO POWER SUPPLY NEEDS:.

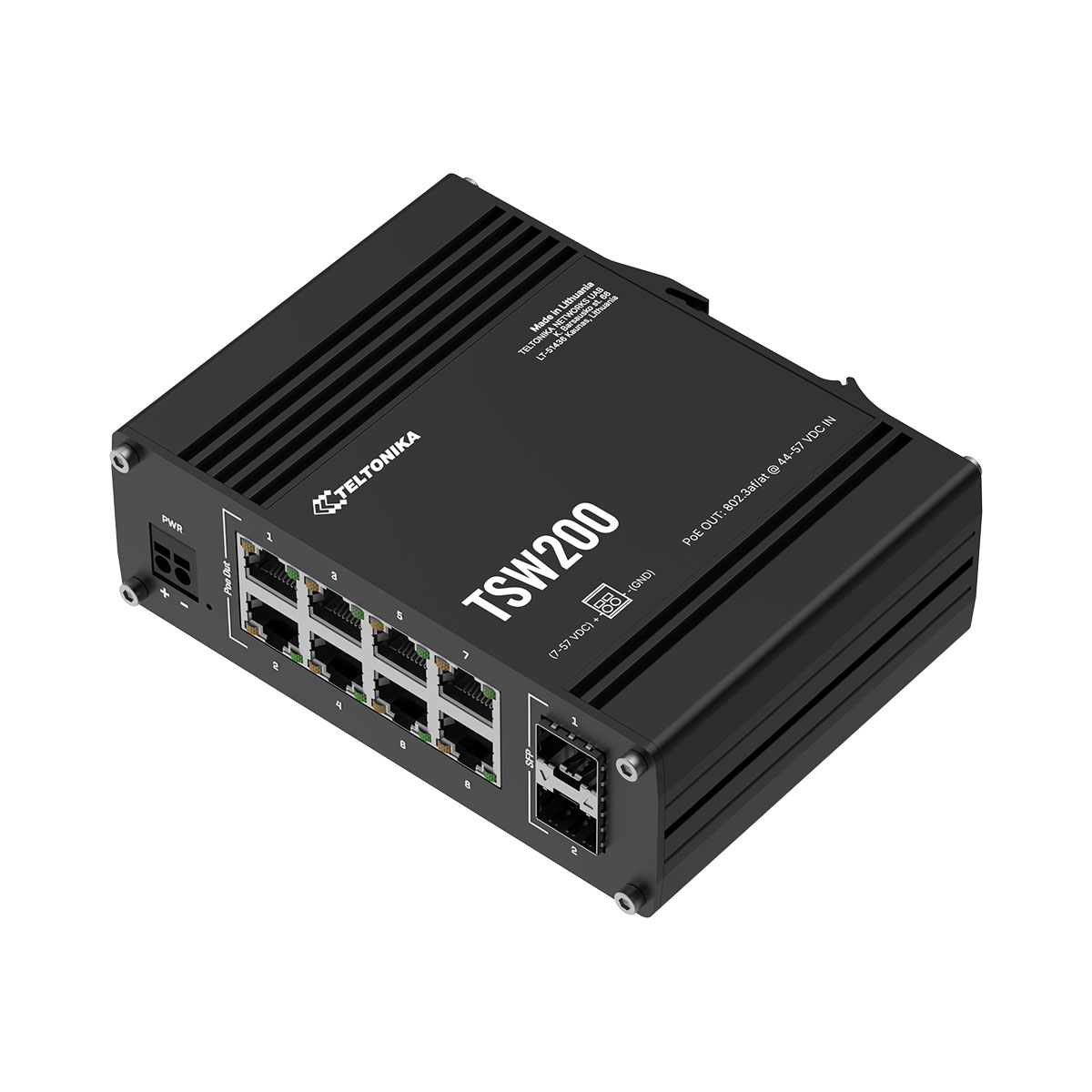

TSW200 is an unmanaged industrial switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
Characteristics
| Specifications | |
| Ethernet | |
| LAN | 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fiber | 2 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE | |
| PoE ports | Port 1 - 8 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packer buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | Jumbo frame support |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| PoE-out input voltage range | 44 – 57 VDC |
| Power consumption | Idle: 1.81 W Max: 5.5 W PoE Max: 245.5 W |
| Physical Interfaces | |

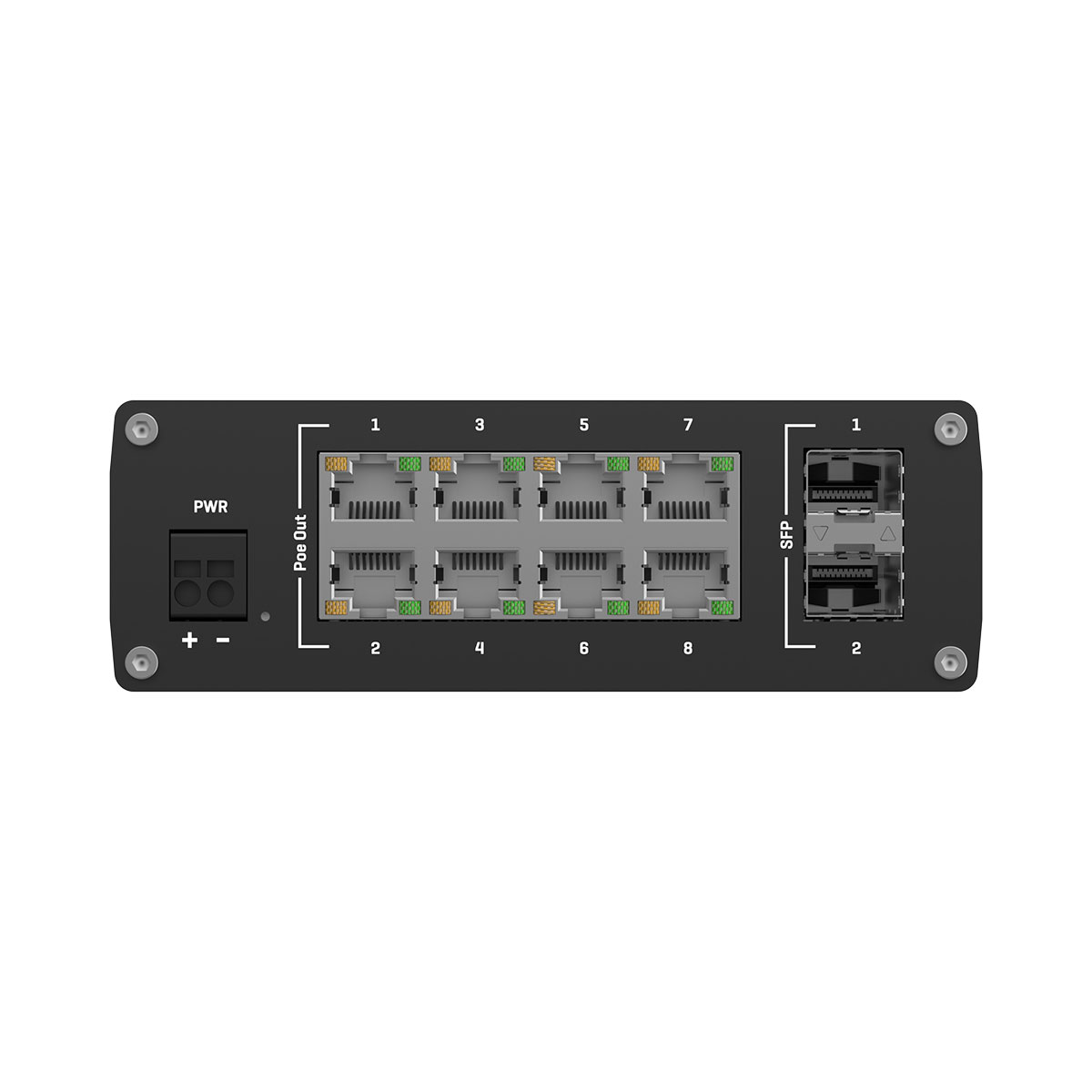

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fiber | 2 x SFP ports |
| Status LEDs | 1 x Power LED 16 x LAN status LEDs 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 517 g |

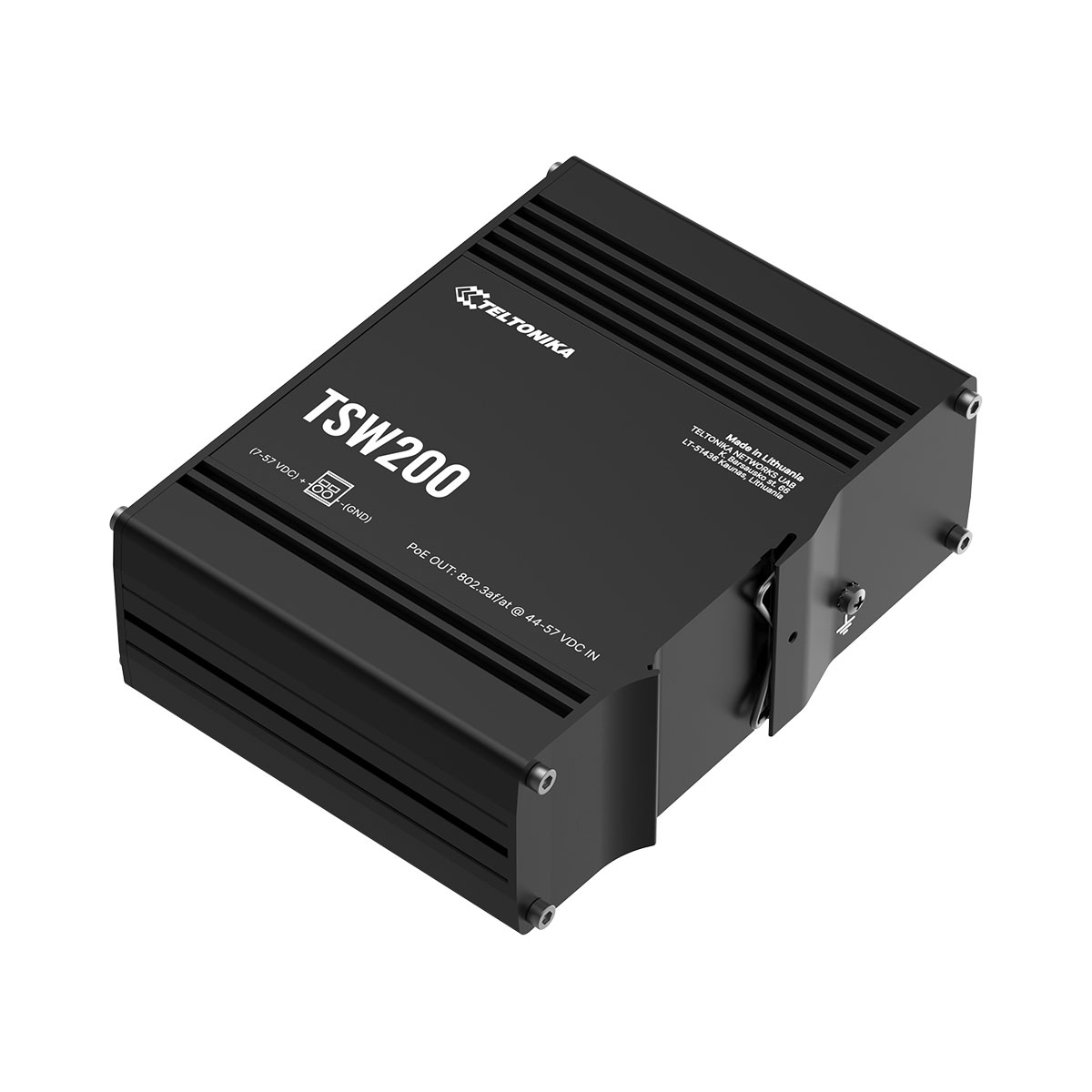

| Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Package contains | • TSW200 • QSG (Quick Start Guide) • Packaging box |
