.:ATTENTION!! THE PACKAGE DOES NOT INCLUDE A POWER SUPPLY WHICH MUST BE PURCHASED SEPARATELY ACCORDING TO POWER SUPPLY NEEDS:.

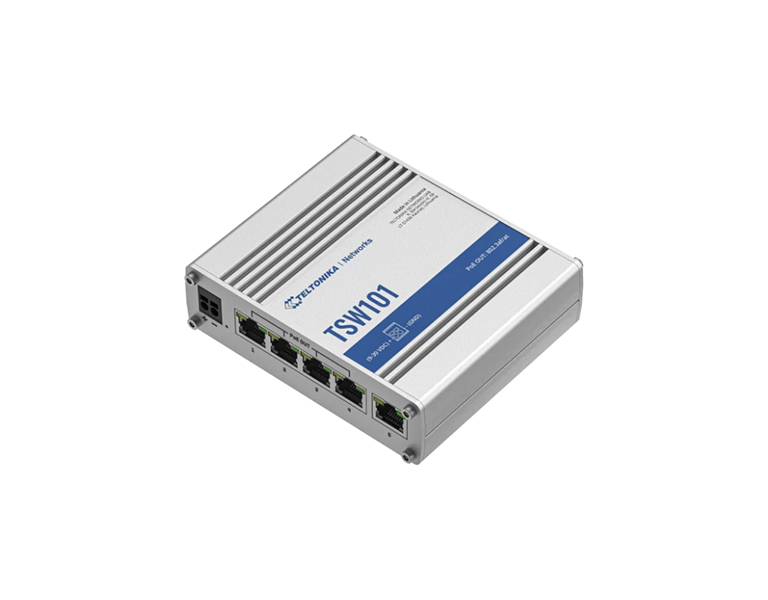

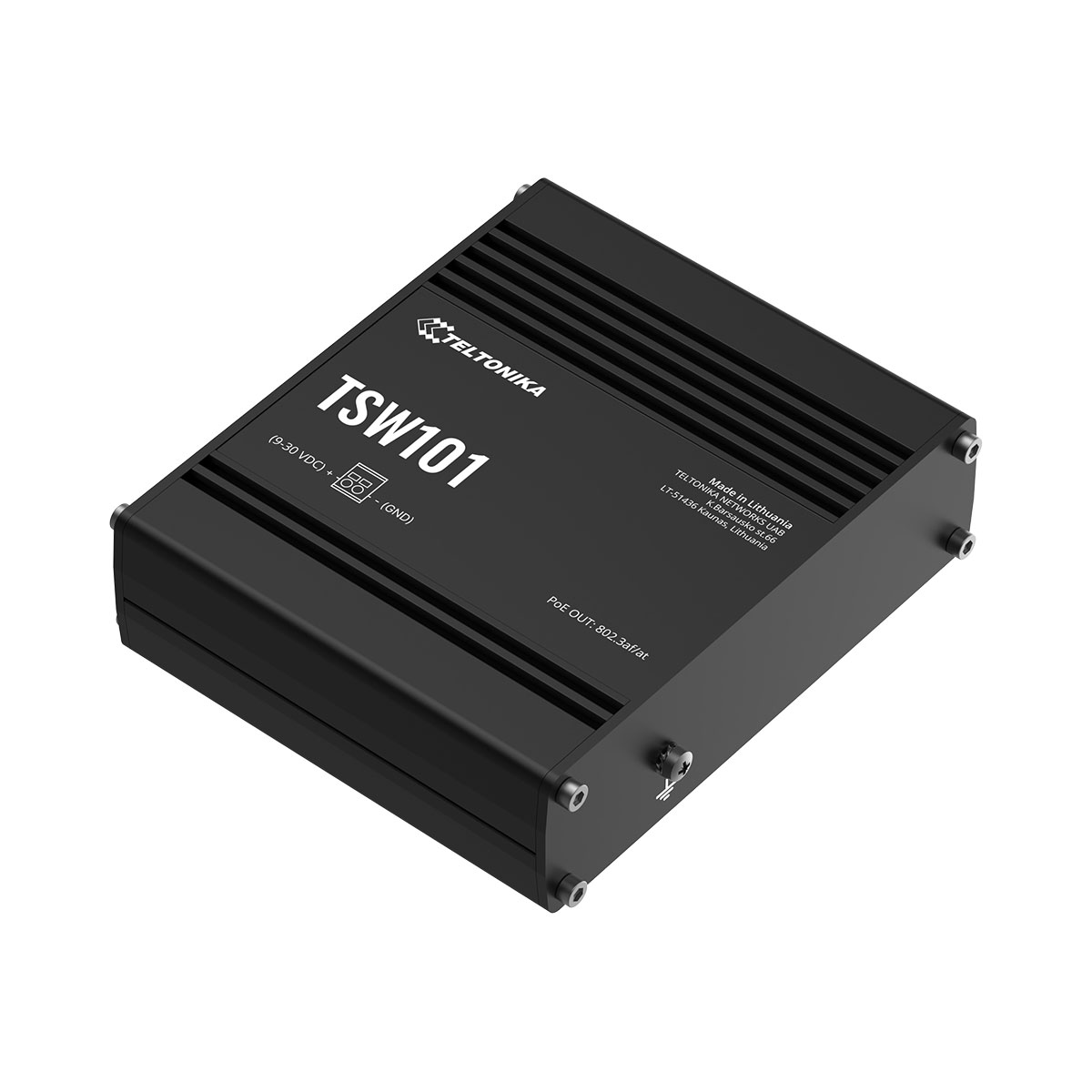

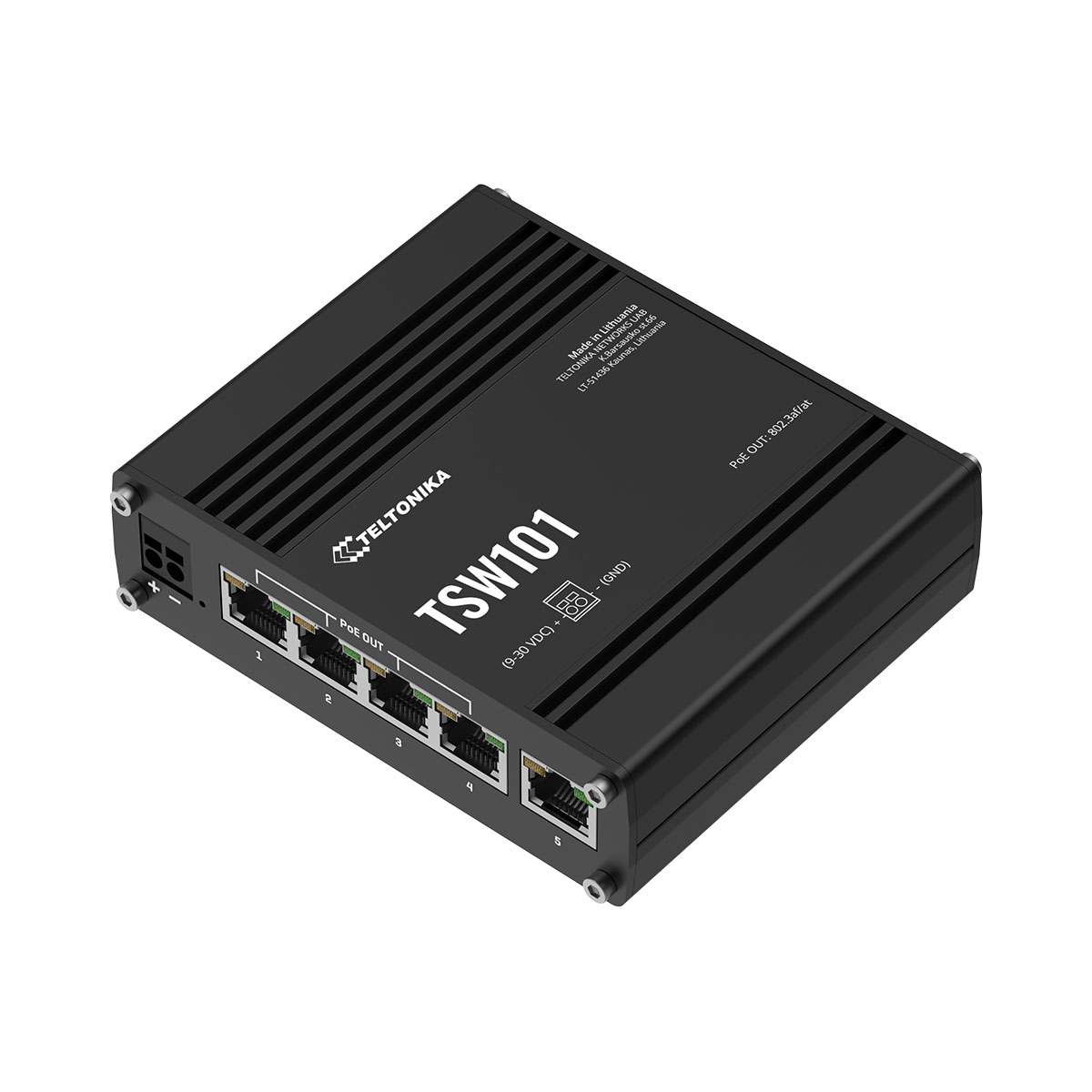

The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
Characteristics
| Specifications | |
| Hardware | |
| Powering option | 2-pin power DC socket, 9-30 VDC |
| Power consumption | 0.64 W / Max: 2.31 W / PoE Max: 112.58 W |
| PoE standart | 802.3af/at (max 30 W per port, total power budget 60W) |

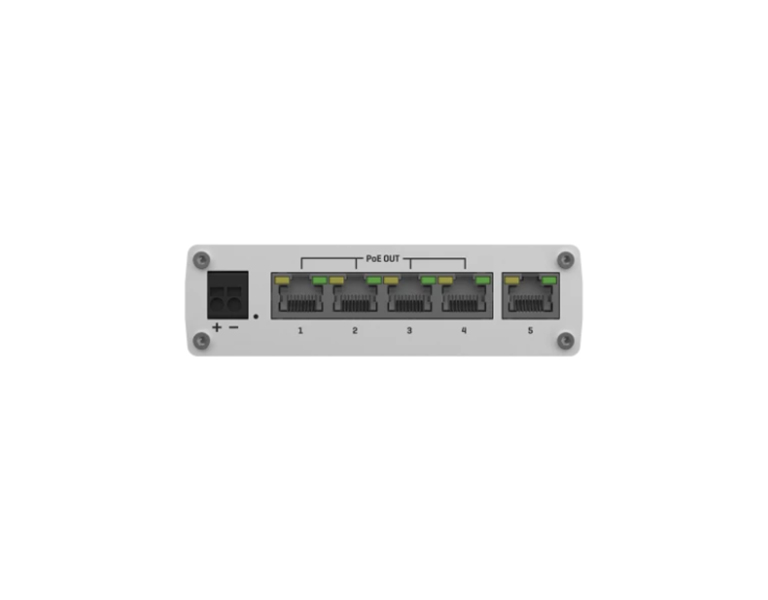

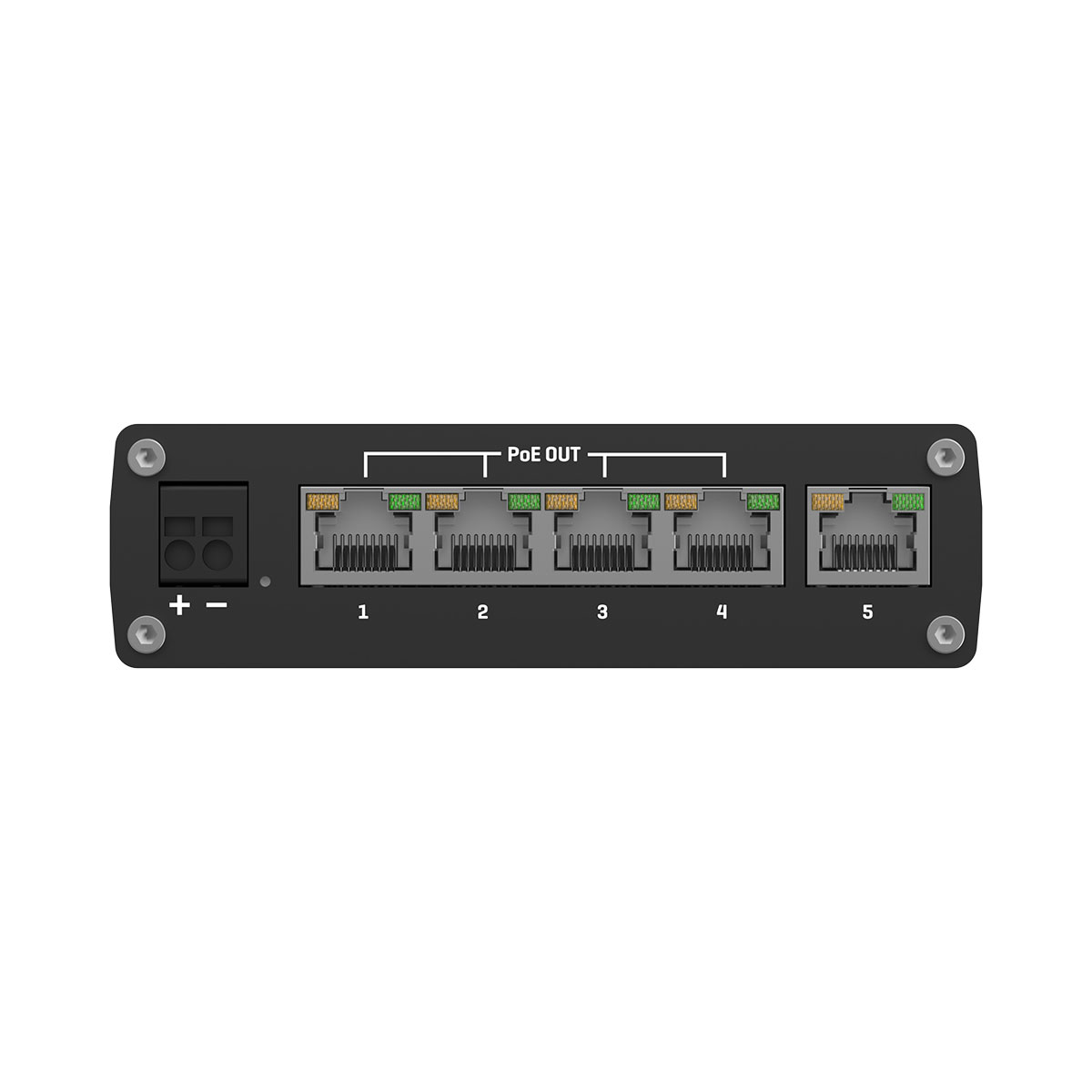

| Ethernet | 5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink |
| Status LEDs | 10 x Ethernet, 1 x Power |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |

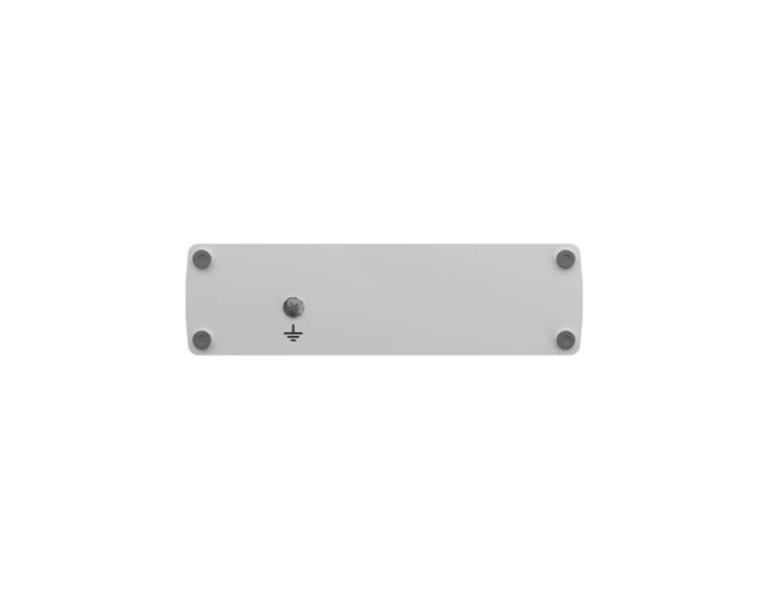

| Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 115 x 32 x 95 mm |
| Weight | 354 g |
| Performance | |
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Auto MDI/MDI-X Cable Detection | Yes |
| Standard Package Contains | • TSW101 • QSG (Quick Start Guide) • Packaging box |
