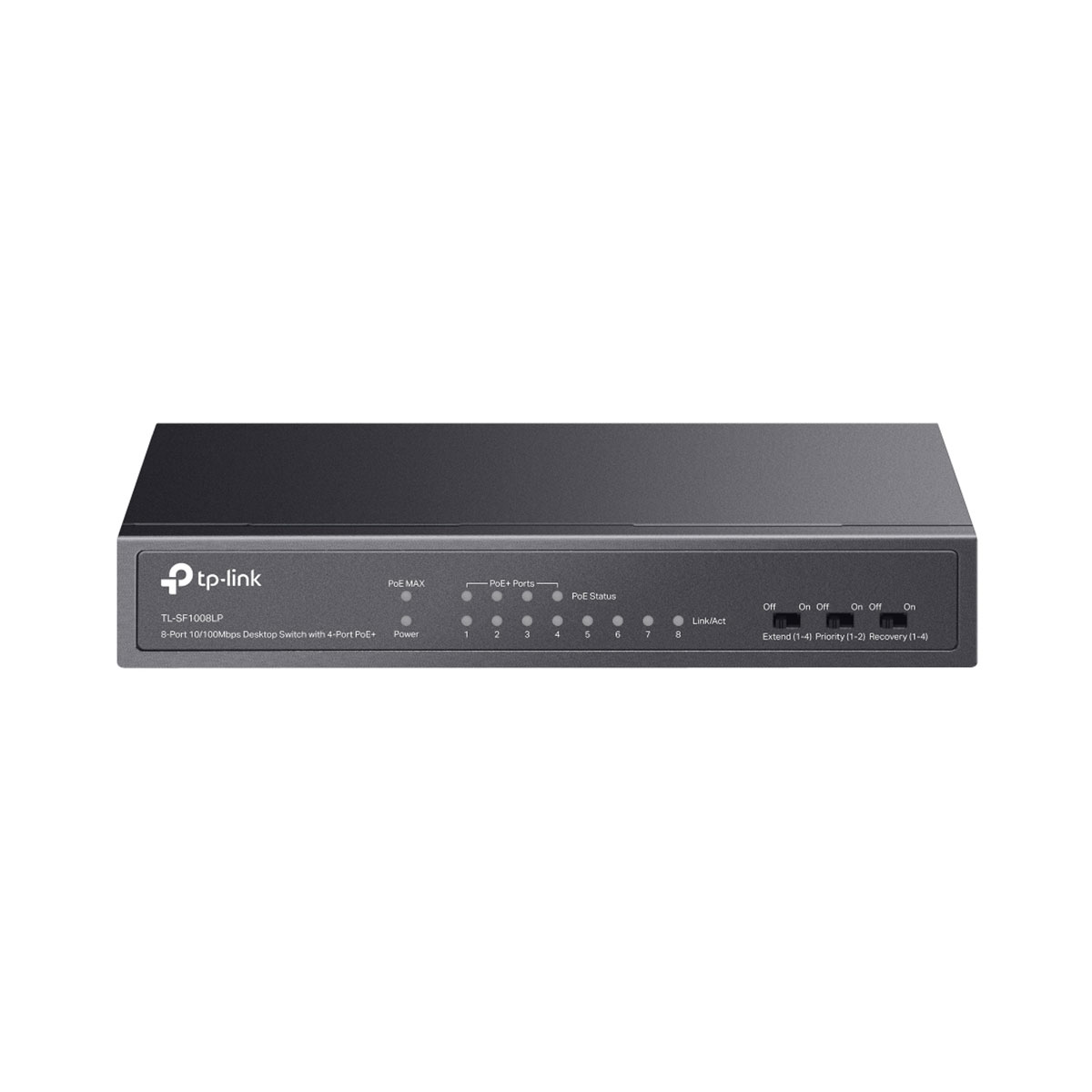

TP-LINK TL-SF1008LP V3 8-Port 10/100Mbps Desktop Switch with 4-Port PoE

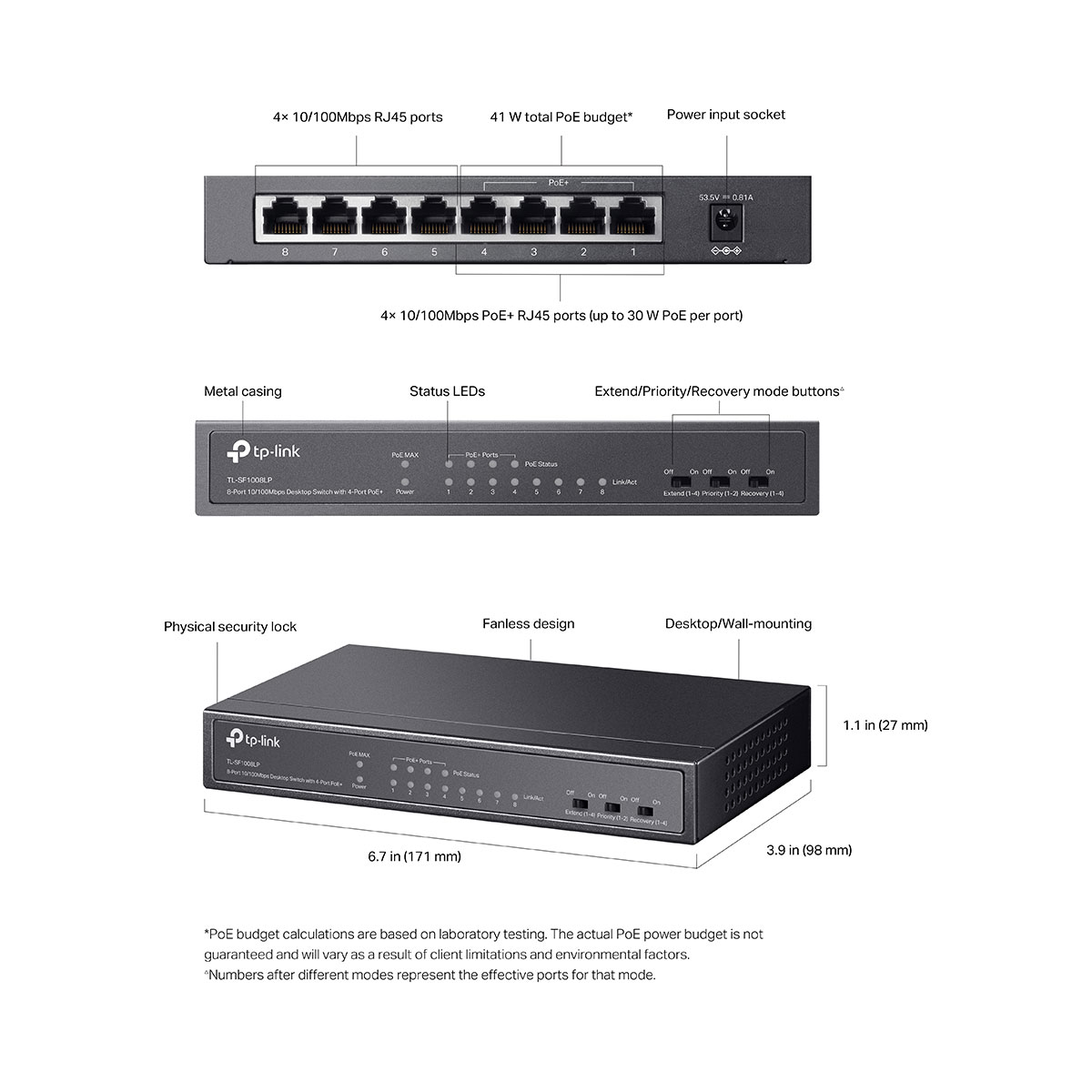

| • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port* • 41 W total PoE budget* • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • Automatically reboots your dropped or unresponsive PoE-powered devices. • Simply plug and play for instant connectivity with no configuration required. • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. • Desktop / Wall-mounting |
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 41 W with 30 W max per PoE+ port. When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Instantaneous Multi-mode Toggles△
With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
| Specifications | |
| Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Network Ports | 8*10/100 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) AUTO Negotiation/AUTO MDI/MDIX |
| Network Media (Cable) | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5 or above cable (maximum 100m) |
| Max Power Consumption | 46.56 W |
| Max Heat Dissipation | 158.30 BTU/h |
| PoE Ports (RJ45) | PoE Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 41 W |
| Transmission Method | Store and Forward |
| Packet Forwarding Rate | 1.19 Mbps |
| Switch Capacity | 1.6 Gbps |
| MAC Address Table | 2k |
| Packet Buffer Capacity | 768 Kbit |
| Jumbo Frame | 2 KB |
| Extend Mode | For Ports 1-4 |
| Priority Mode | For Ports 1-2 |
| PoE Auto Recovery | For Ports 1-4 |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Dimensions | 171 x 98 x 27 mm |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH,non-condensing Storage Humidity: 5% to 90% RH, non-condensing |

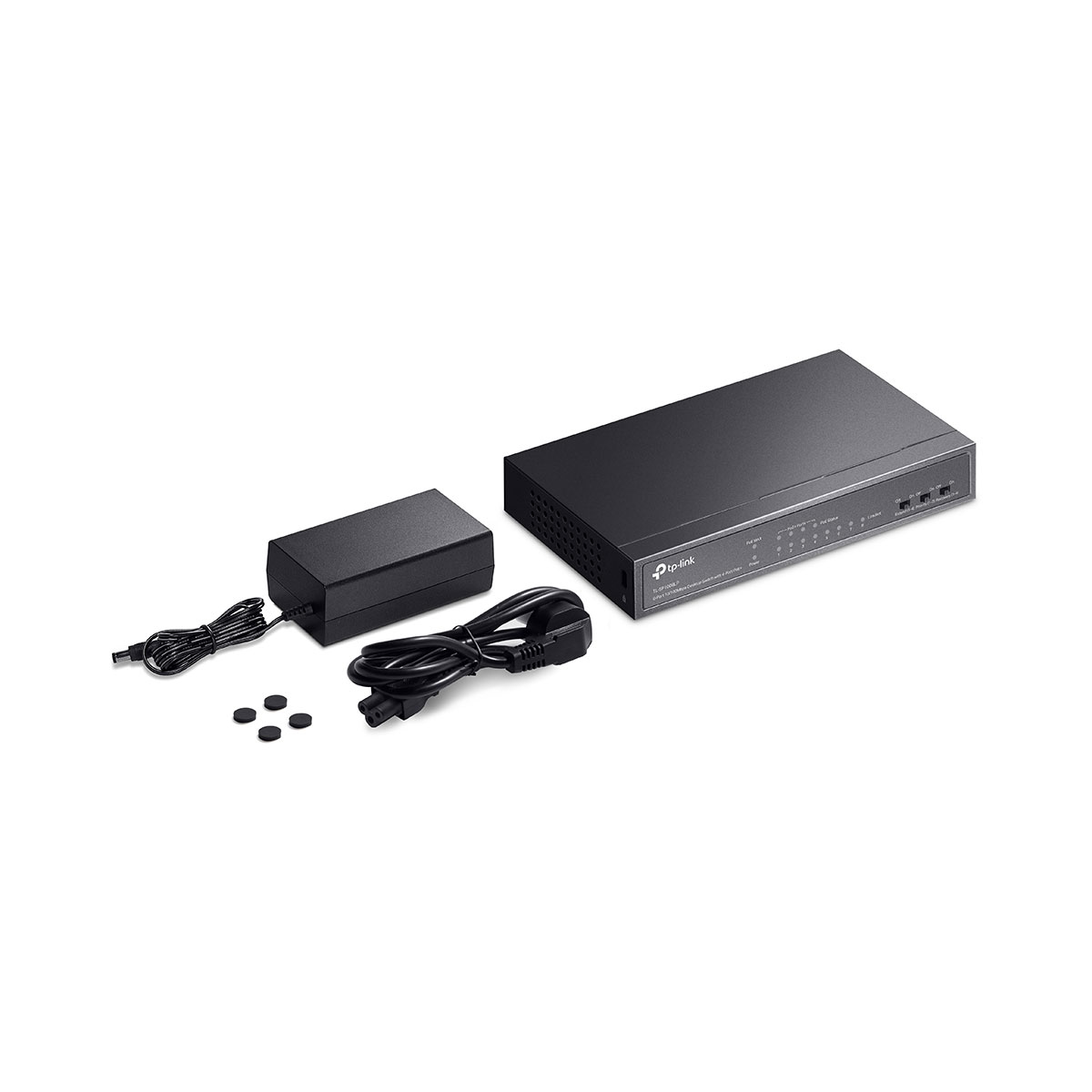

| Package Contents | Switch, Power Adapter, Installation Guide |
