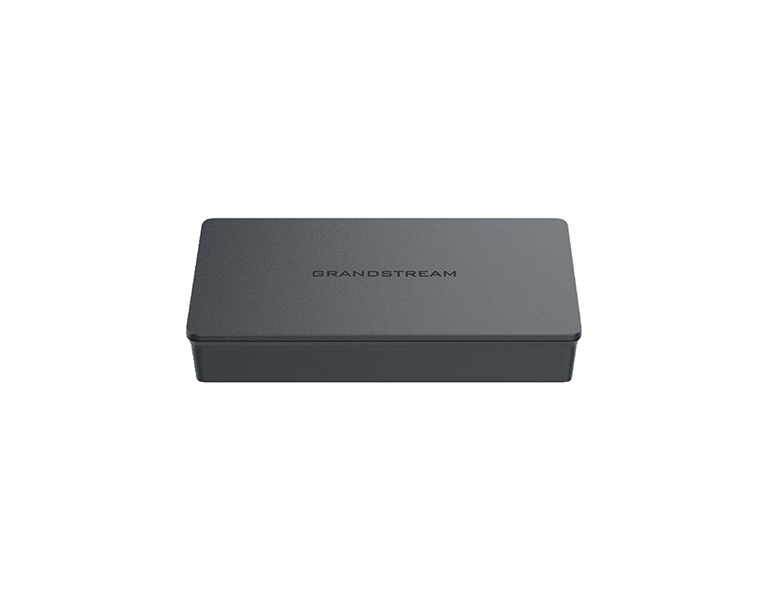

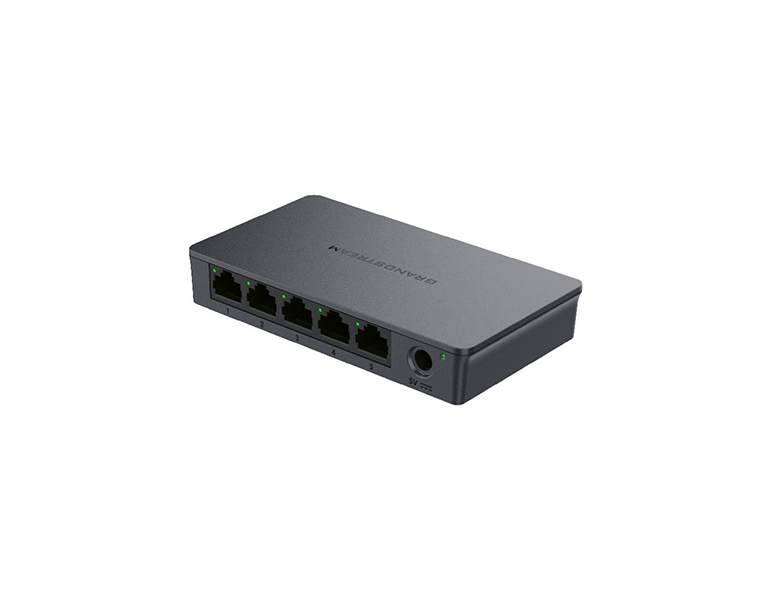

Grandstream GWN7700 Unmanaged Network Switch
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
Features:
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity/Speed Per device: Power
• Auto MDI/MDIX crossover for all ports
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Gigabit Ports | 5 |
| Enclosure | Metal |
| Mounting | Desktop/ Wall-Mount |
| Network Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity Green Per device: Power Green |
| Mac Address Table | 2K |
| Switching Capacity | 10Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP: • IGMP Fast-Leave • IGMP Snoop • Route Port Autolearn • Query Refresh Member Port |
| Power Adapter | External 5VDC/0.6A |
| Max Power Consumption by Base System | 1.7W |
| Environmental | Operating Temperature: 0 to 40 °C Storage Temperature: -20 to 60 °C Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit:120 x 65 x 24.5mm Package: 223 x 90.5 x 54mm |
| Weight | Unit: 0.1KG Entire Package: 0.25KG |
| Package | 1x Switch, 1x Power Adapter,1x QIG |
| Compliance | FCC, CE, RCM, IC, UKCA |
