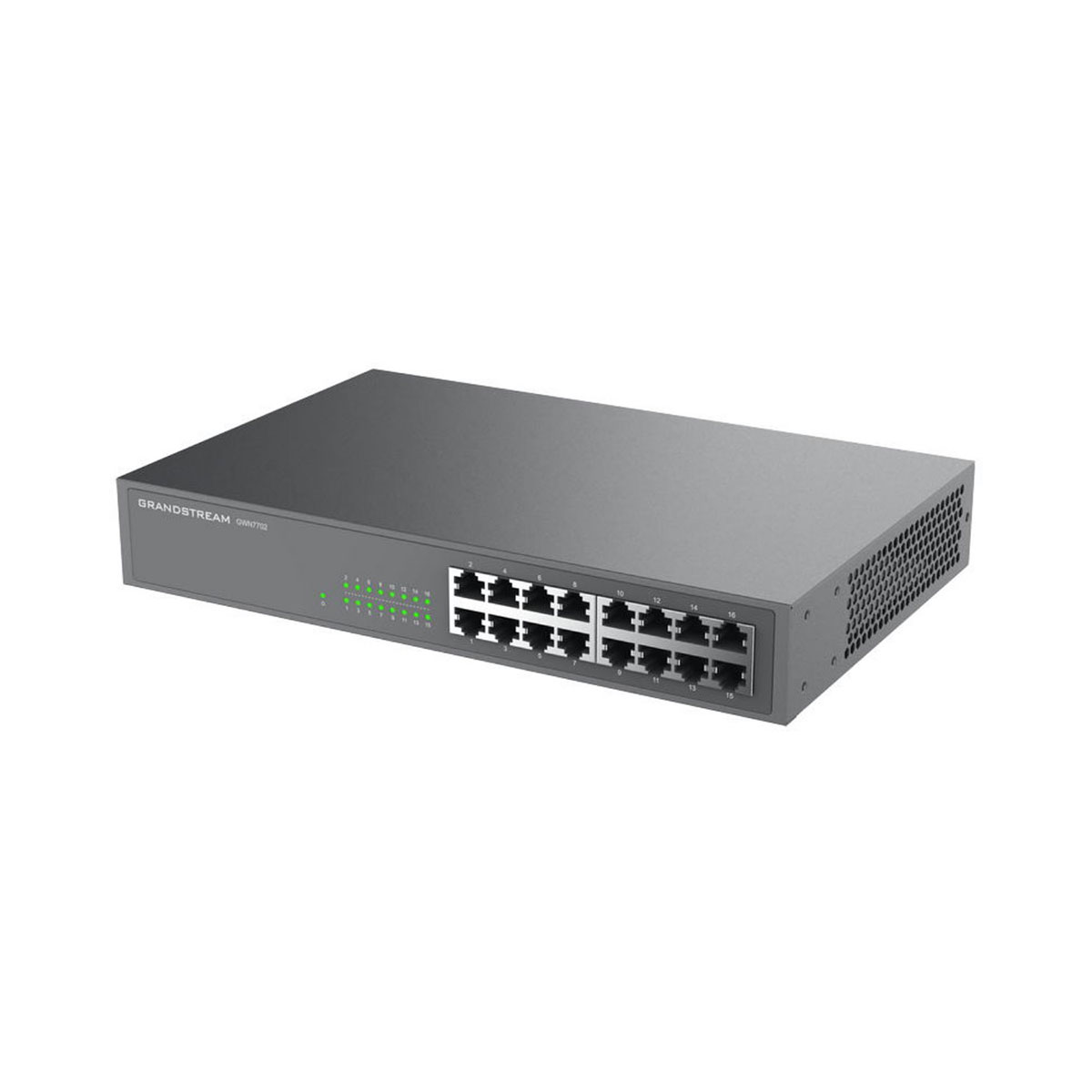

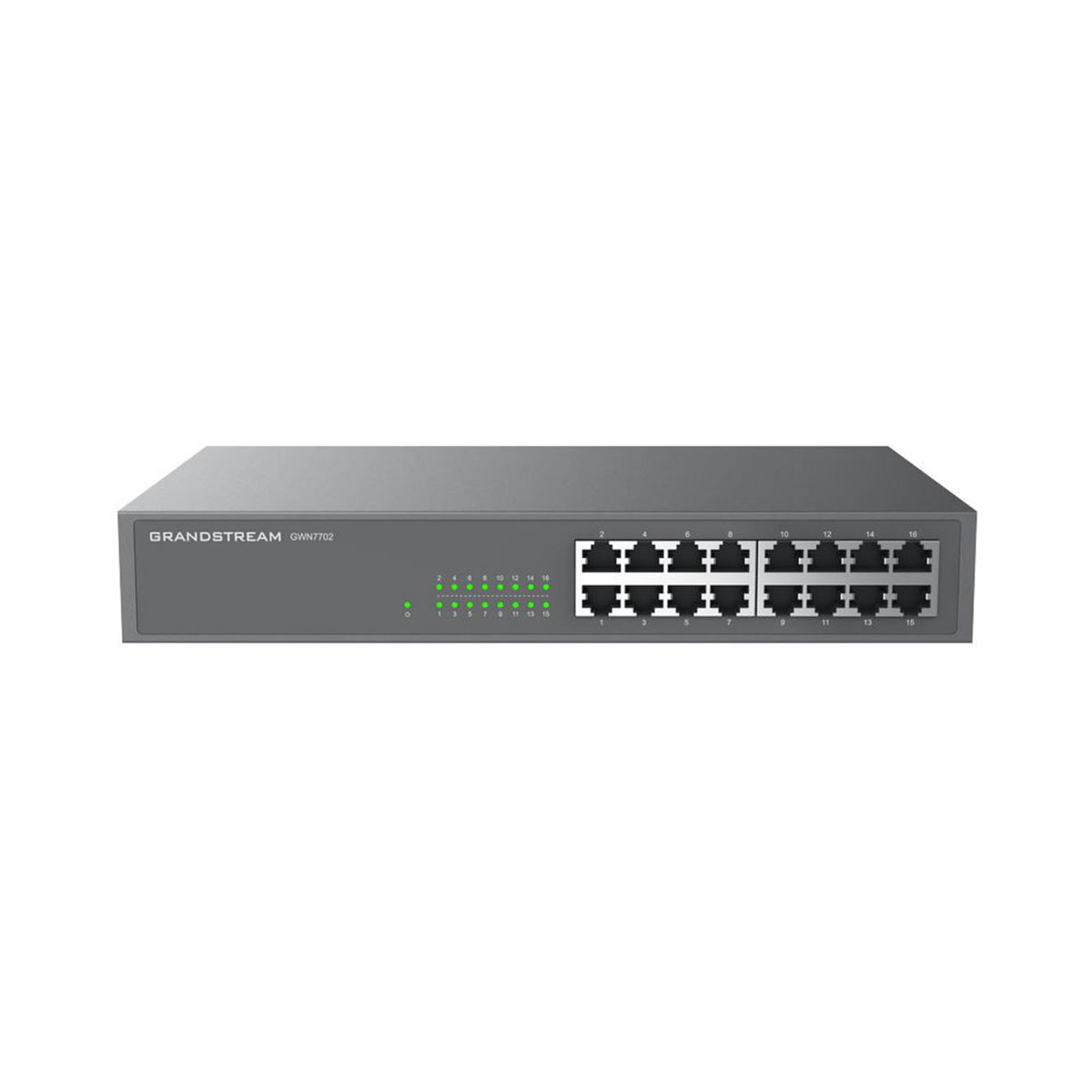

Grandstream GWN7702 Unmanaged Network Switch
Grandstream GWN7702 Unmanaged Network Switch
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
Features:
• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
• Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present
Specifications | |
Gigabit Ports | 16 |
Enclosure | Metal |
Mounting | Desktop/ Rack-Mount |
Network Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
Port Feature | 16/24× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
Network Media | 2.5GBase-T / 1000Base- T / 100Base-TX/10Base-Te (HalfDuplex only supported in 10/100M mode on port 4-8 ) |
LED Indicators | Per port: Link/Activity Green Per device: Power Green |
Mac Address Table | 8K |
Switching Capacity | 32Gbps |
Jumbo Frame | 10KB |
Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control Half duplex backpressure |

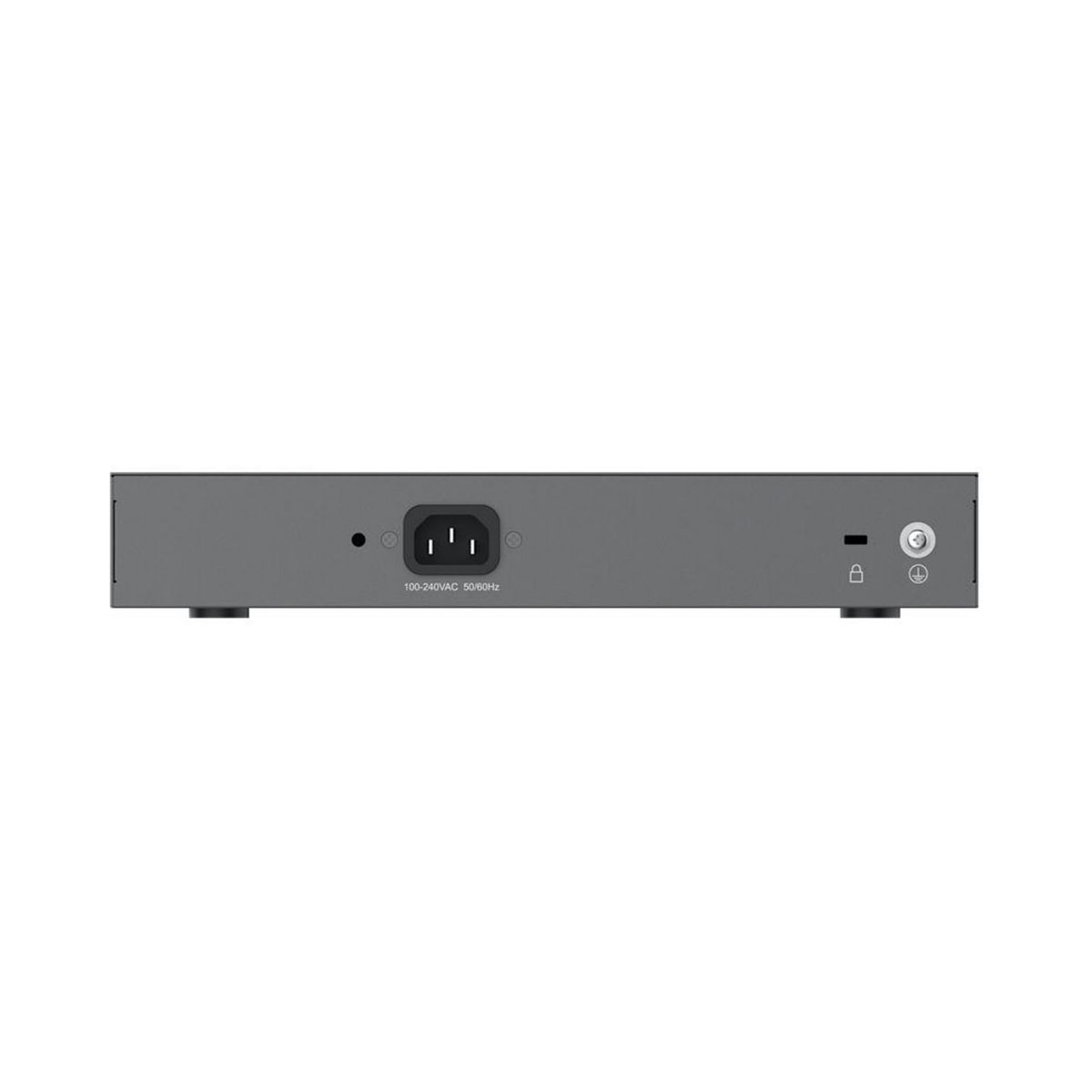

Power Adapter | Internal 100-240V AC, 50/60Hz,18W |
Max Power Consumption by Base System | 8W@220V/50Hz |
Environmental | Operating Temperature: 0 to 40 °C Storage Temperature: -20 to 60 °C Operating Humidity: 10% to 90% Non- condensing Storage Humidity: 10% to 90% Non-condensing |
Dimensions (L x W x H) | Unit: 280 x 180 x 44mm; Package: 366 x 211 x 53mm |
Weight | Unit: 1.23KG Entire Package: 1.83KG |
Package | 1x Switch 1x 1.2m AC Cable Rack-mounting Standard Brackets 4x Rubber Feet 1x QIG |
Compliance | FCC, CE, RCM, IC, UKCA |
