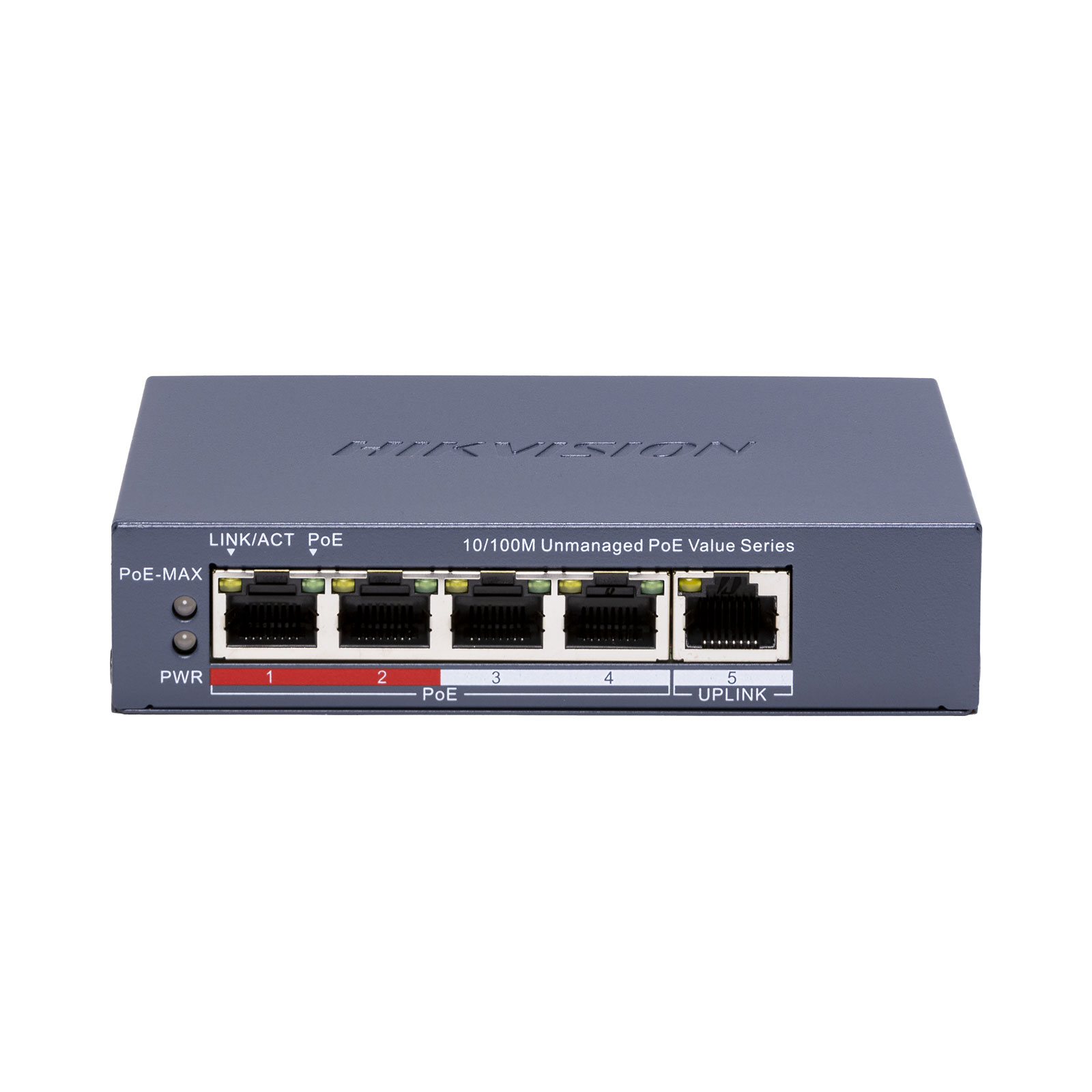

-n-main.jpg "Hikvision DS-3E0105P-E/M(C), 4-Port Fast Ethernet Unmanaged PoE Switch")

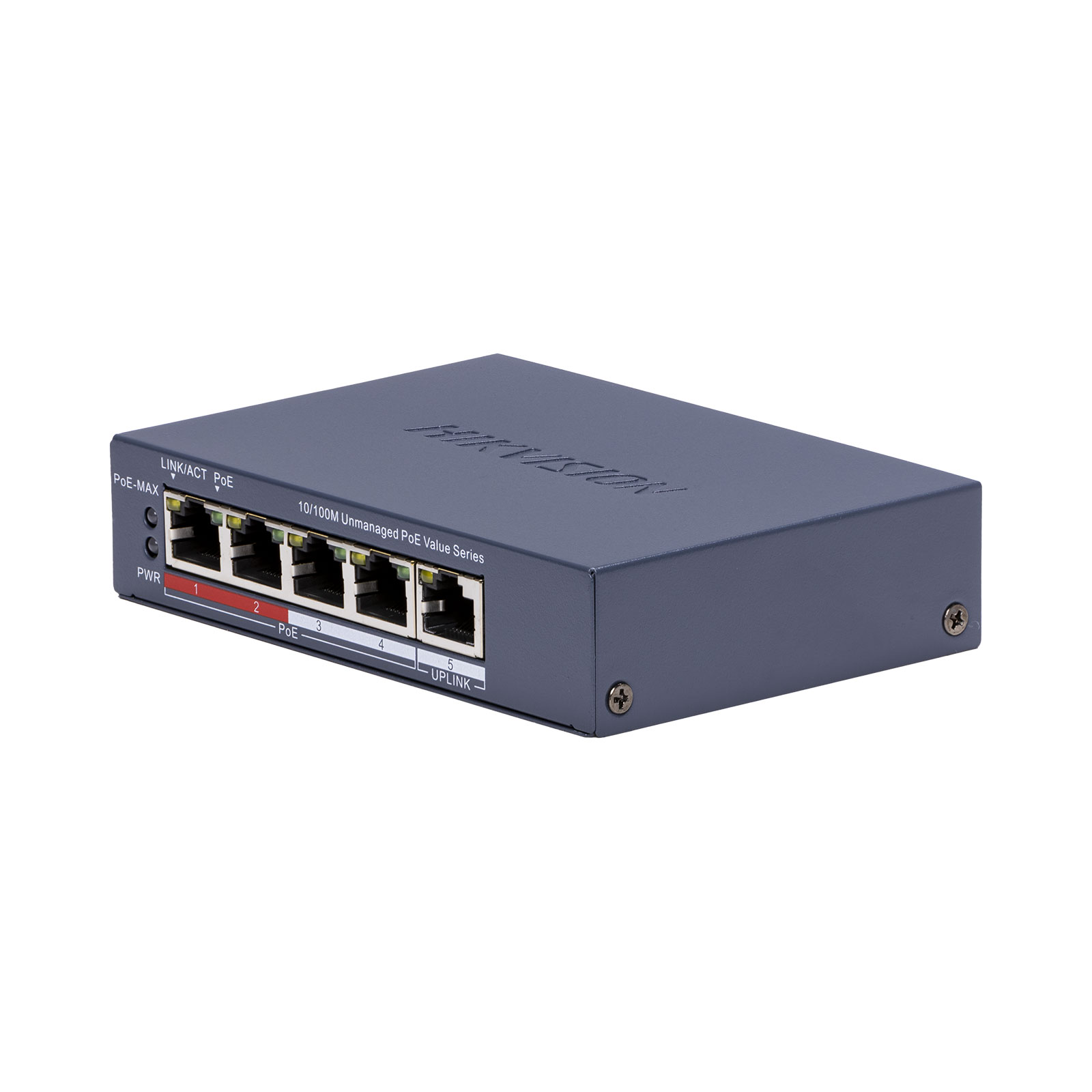

-n-1.jpg "Hikvision DS-3E0105P-E/M(C), 4-Port Fast Ethernet Unmanaged PoE Switch")

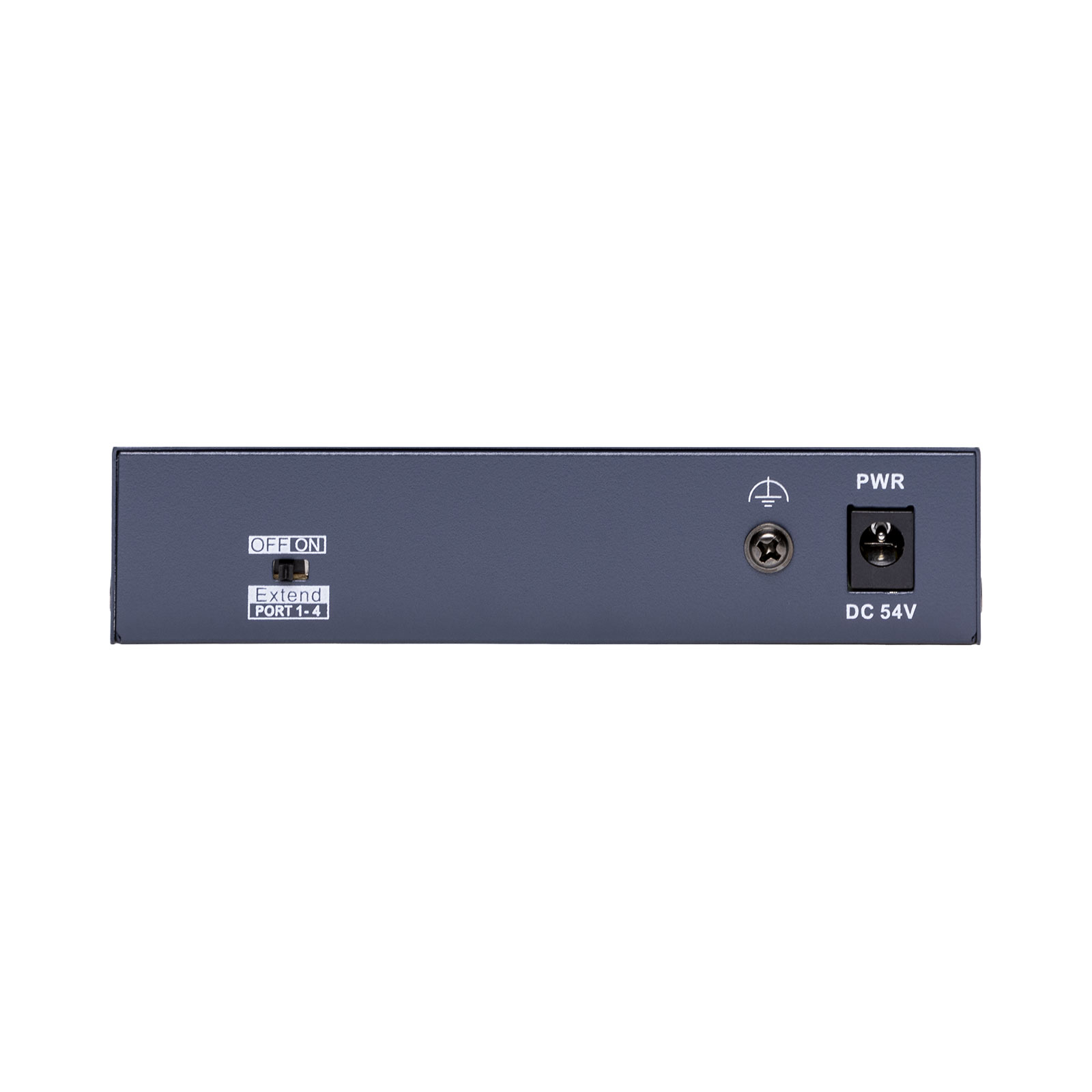

-n-2.jpg "Hikvision DS-3E0105P-E/M(C), 4-Port Fast Ethernet Unmanaged PoE Switch")
Description
Characteristics
Downloads
Description
• Intelligent PoE Management
• Up to 300 m Long Range PoE Transmission
• 6 kV Surge Protection to Improve Reliability in Harsh Environment
Characteristics
| Specification |
|
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.2 kg |
| Gross Weight | 0.5 kg |
| Dimensions (W × H × D) | 121.1 mm × 27.6 mm × 83.1 mm |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54 V DC, 0.92 A |
| Max. Power Consumption | 50 W |
| Power Consumption in Idle | 5 W |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| Internal Cache | 768 Kbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 45 W |
| Dialing Function | |
| Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7:2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
