TP-LINK EAP772 V2.2 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Caution!! The device does not include power supply!
| • BE9300 Tri-Band Wi-Fi 7: 5765 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz). Buffering will no longer be a problem.† • 1× 2.5G Port: Unlock the full potential of Wi-Fi 7. • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi. • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.‡ • Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.‡ • Advanced Functions: Supports centralized management, Mesh, and Seamless Roaming.△ |
Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP772 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
| Hardware | |
| Wi-Fi Standards | 6 GHz: IEEE 802.11ax/be 5 GHz: IEEE 802.11a/n/ac/ax/be 2.4 GHz: IEEE 802.11b/g/n/ax/be |
| Antenna | Wi-Fi: • 2.4 GHz: 2 × 4 dBi (peak gain), onboard omnidirectional antennas • 5 GHz: 2 × 5 dBi (peak gain), onboard omnidirectional antennas • 6 GHz: 2 × 5 dBi (peak gain), onboard omnidirectional antennas *Note: The gains above are the single -antenna peak gains. IoT: Bluetooth: 1 × 4 dBi (peak gain), onboard omnidirectional antennas |
| Interfaces | 1 x 10M/100M/1000M/2.5Gbps Multigigabit Ethernet Port (RJ45); PoE in 1 x 1 DC power interface: 12VDC |
| IoT | BLE 5.2, 1Mbps |
| Memory | Flash: 1024Mbit DRAM: 8192Mbit |
| Button | 1 × Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings |
| Indicator | 1 × blue system LED |
| Reliability | MTBF (Mean Time between Failure) : 295992 hours at the operating temperature of 25 °C |
| Power Supply | Input: 802.3at PoE+: 42.5 - 57 V, 0.6A 12VDC/2.5A |
| Power Consumption |
• 802.3at (PoE+): 25.4W, 2.4GHz radio 2×2, 5GHz radio 2×2, 6GHz radio 2×2, wired link rate can be up to 2.5 Gbps, etc. • Idle mode: 9.4W(PoE) |
| Surge/Lightning Protection |
Ethernet Ports: ±4 kV |
| ESD/EMP Protection | • Air discharge: ±8 kV • Contact discharge: ±4 kV *Note: ESD/EMP Protection means Electrostatic Discharge/Electromagnetic PulseProtection independently. |
| Environment | |
| Temperature | Operating: 0 °C to +40 °C Storage: -30 °C to +70 °C |
| Humidity | Operating: 10% to 90% (non - condensing) Storage: 5% to 90% (non - condensing) |
| Altitude | Storage: up to + 2000 m Operating: up to + 2000 m |
| Unit | |
| Dimensions (W×D×H) |
Main Unit: 220 × 220 × 32.5 mm Shipping Unit: 540 × 300 × 300 mm |
| Weight | Main Unit: 0.7kg Mounting Bracket: 0.05 kg Shipping Unit: 9.02 kg |

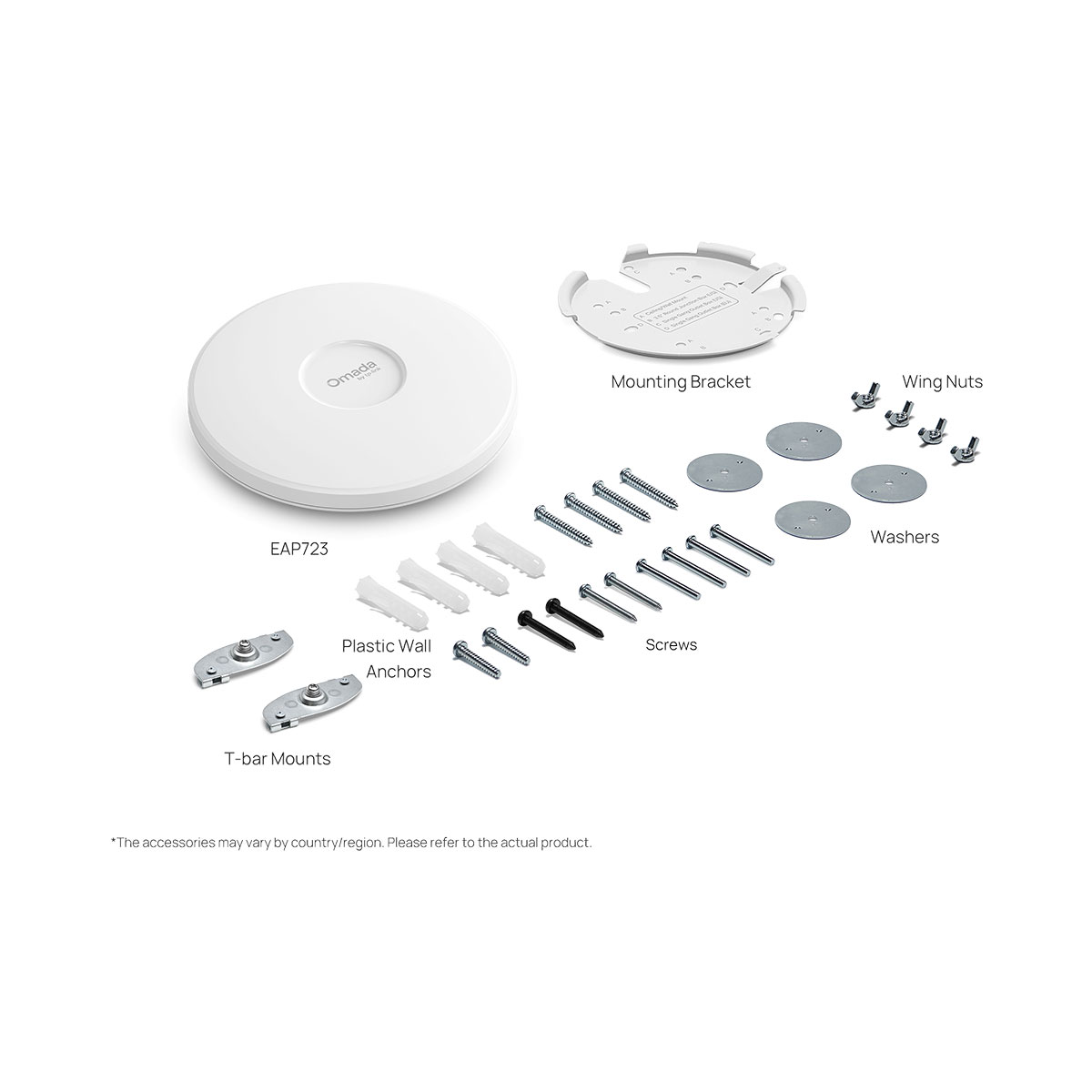

| Mounting | Ceiling /Wall Mounting (Kits included) Junction Box Mounting (Kits included) T-Bar Mounting (Kits included) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
