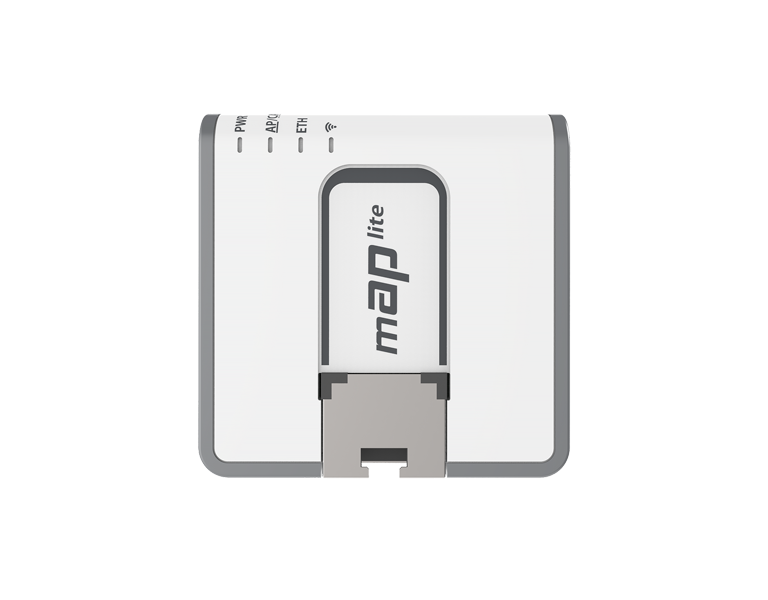

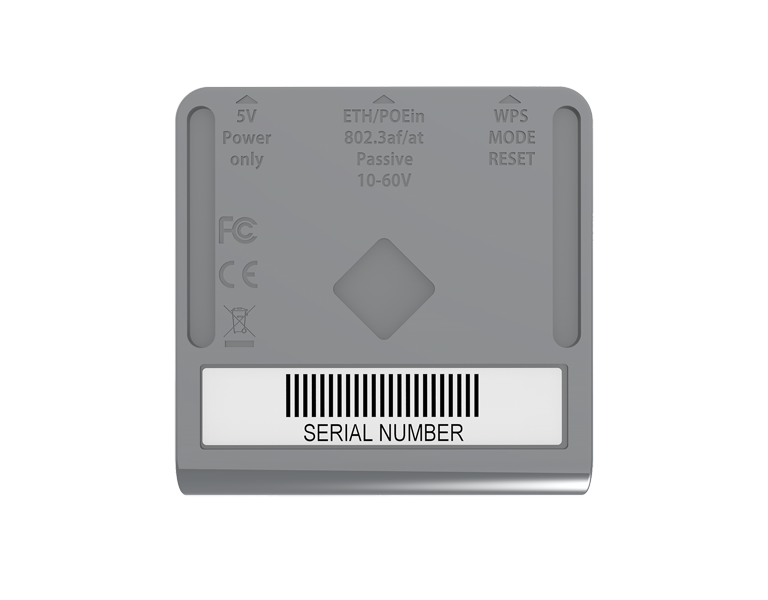

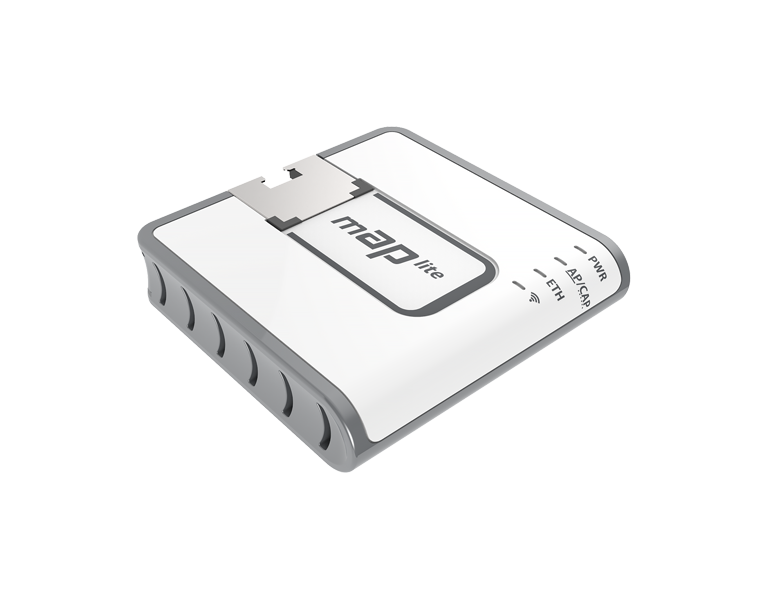

Mikrotik RBmAPL-2nD mAP lite, 1xLAN, 2.4GHz Dual Chain access point, RouterOS L4

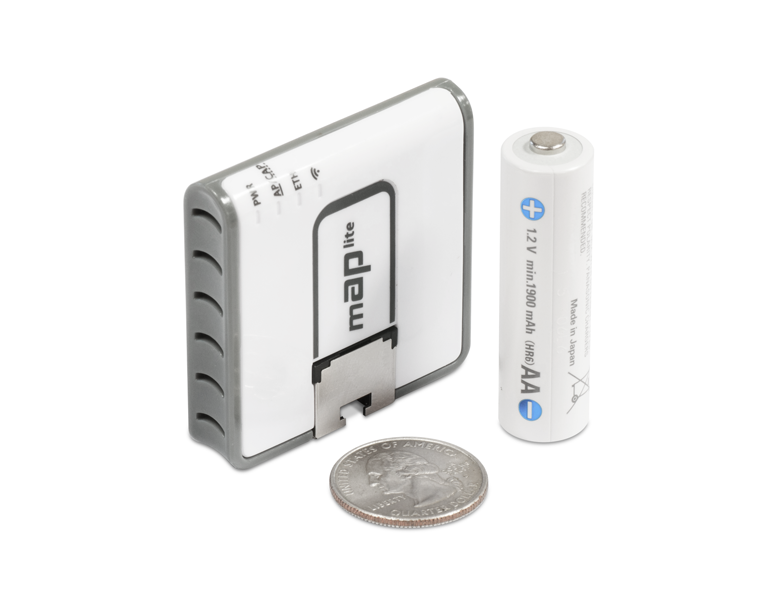

The mAP lite is the smallest wireless access point. It is barely larger than a matchbox, MikroTik even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
| Specifications | |
| Product code | RBmAPL-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 48 x 49 x 11mm |

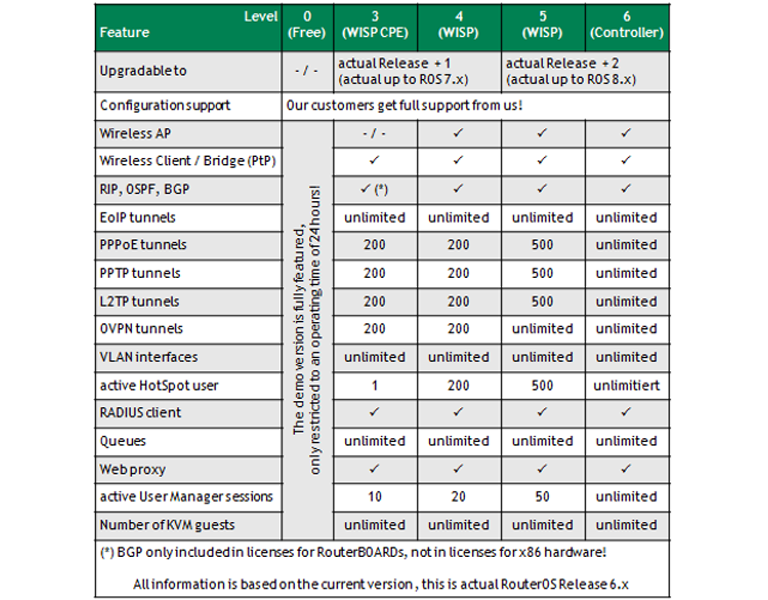

| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
| Powering | |
| MicroUSB input Voltage | 5-5 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 10-60 V |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
| Max power consumption | 3.5 W |
| Wireless | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Certification & Approvals | |
| Certification | CE/RED, FCC, IC, EAC, ROHS |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
