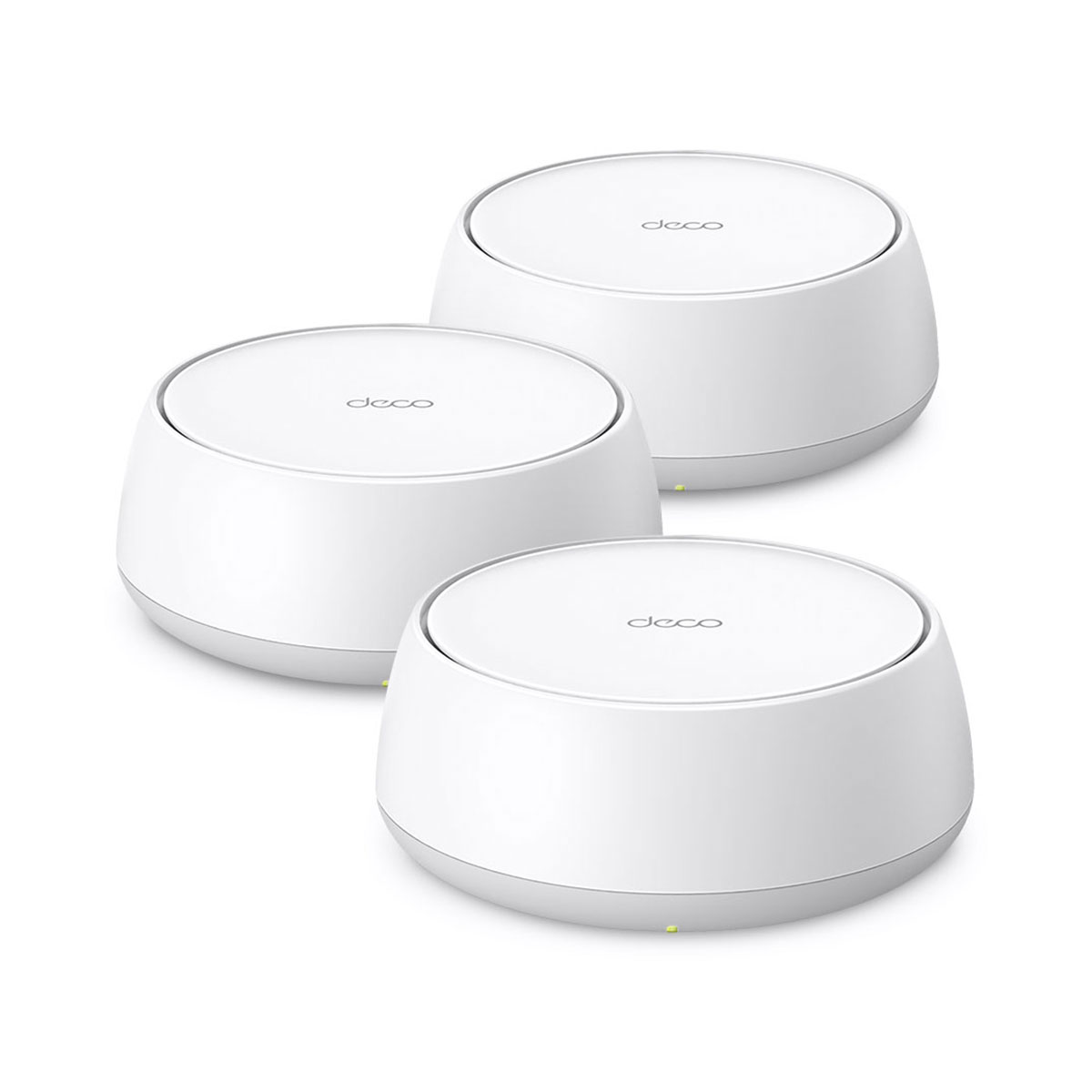

TP-LINK DECO BE25(3-PACK) V1 BE3600 Whole Home Mesh Wi-Fi 7 System
-n-main.jpg "TP-LINK DECO BE25(3-PACK) V1 BE3600 Whole Home Mesh Wi-Fi 7 System")
-n-1.jpg "TP-LINK DECO BE25(3-PACK) V1 BE3600 Whole Home Mesh Wi-Fi 7 System")
| • 3.6 Gbps Dual-Band WiFi – 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).† • 2.5 Gbps Wired Connections – 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§ • Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency. • Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△ • Seamless AI-Driven Roaming – Forms a unified netwok with built-in AI-Roaming creating the ideal Wi-Fi solution for your home. • TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.* • Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.☆ |
WiFi 7, WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
Blazing Fast WiFi 7 Speed up to 3.6 Gbps
The latest 4K-QAM boosts the Wi-Fi speeds up to 3.6 Gbps.† — ideal for bandwidth-intensive tasks like cloud gaming and 8K video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.
Ultra-Fast 2.5 Gbps Wired Performance
Perfect for bandwidth-intensive tasks like cloud gaming, VR entertainment, and 8K video streaming. Enjoy immersive live-streaming with flawless video and clear audio, no buffering. Ideal for families and busy households.
The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE25 is able to connect wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
Smart Security for Smart Living
HomeShield is a built-in service, it provides a series of services for you to protect all your devices comprehensively with various features at home or on-the-go. With HomeShield, safer internet experiences bring more happiness to your smart living.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, Deco can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.
Seamless AI-Driven Mesh
Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.‡
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 150 devices is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.
§2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
*HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield. Some features are under development and will be supported with subsequent software updates.
☆WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
| Hardware | |

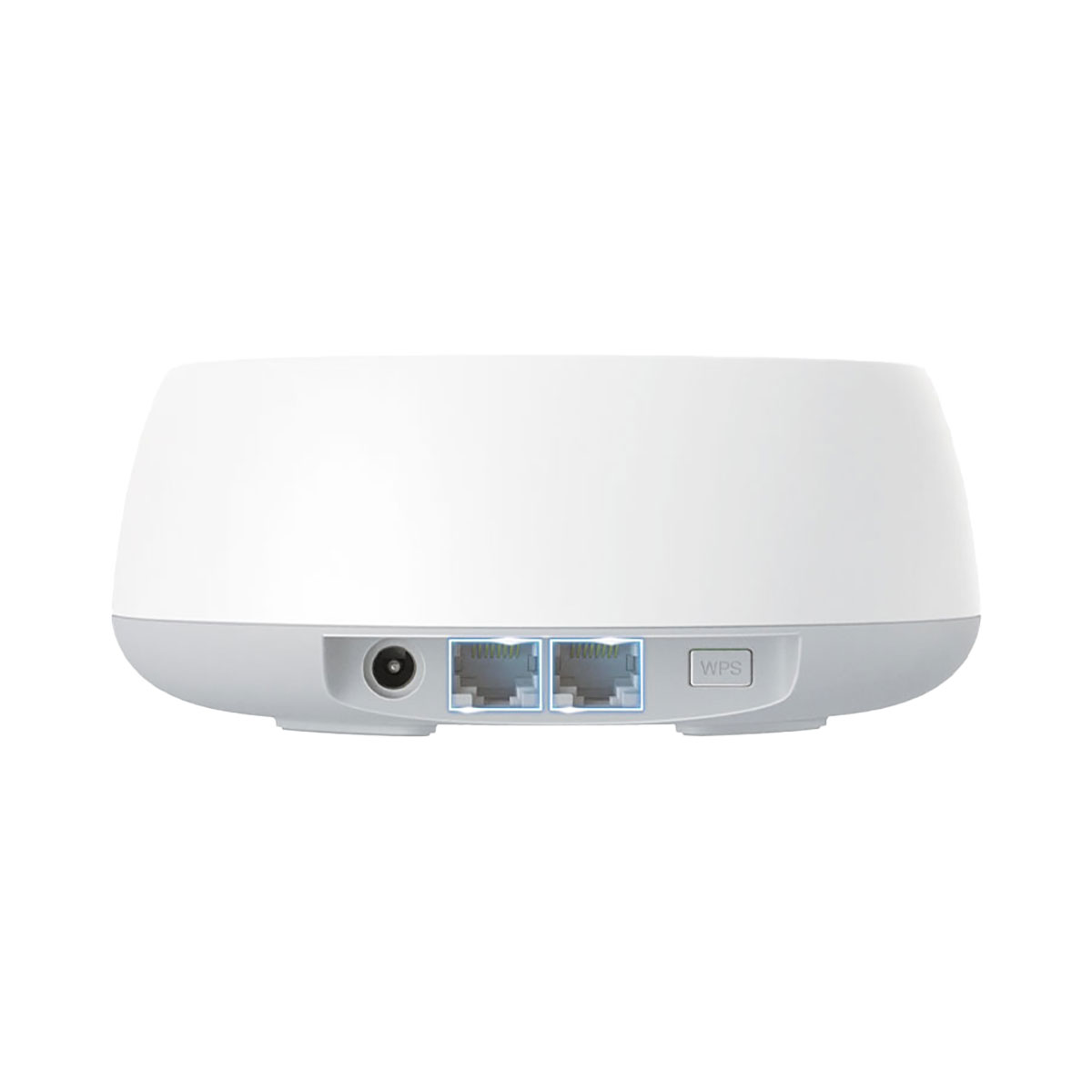

| Ethernet Port | 2× 2.5 Gbps WAN/LAN Ports per unit (WAN/LAN auto-sensing) |
| Button | 1 RESET button at the bottom, 1 WPS button on the back |
| Power Consumption (without power adapter) | 14.9 W max |
| Dimensions (W × D × H) | 150 × 150 × 62 mm |
| Power Adapter Input | 100-240 V ~ 50/60 Hz 0.6 A |
| Power Adapter Output | 12 V 1.5 A |
| Wireless | |
| Wireless Standards | IEEE 802.11b/g/n/ax/be 2.4 GHz,IEEE 802.11a/n/ac/ax/be 5GHz |
| Mesh protocol | 802.11k/v/r |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)† |
| Transmit Power | CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz) |
| Wireless Security | WPA/WPA2-PSK/WPA3◊ encryptions |
| Software | |
| Working Mode | Router, Access Point |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| DHCP | Server |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4 GHz Guest Network×1 5 GHz Guest Network×1 |
| IoT Network | IoT Network×1 |
| MLO Network | MLO Network×1 |
| Features | TP-Link HomeShield*, Multi-Link Operation (MLO)△, 160 MHz Bandwidth△, 4K-QAM△, Multi-RU△, MU-MIMO△, OFDMA△, BSS Color△ |
| Management | Local Management; Remote Management; Multi-Managers |
| Others | |
| Certification | CE, RoHS |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~60°C Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
| Package Contents | 3 Deco BE25 units 1 RJ45 Ethernet cable 3 Power adapters 1 Quick Installation Guide |
†
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 150 devices is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz and 2.4 GHz bands simultaneously. These devices simulated a typical home
scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet
service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡
Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and other features including MLO, 4K-QAM, Multi-RU, OFDMA, MU-MIMO, and BSS Color requires clients to also support the corresponding features.
§
2.5G internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
◊Use of WPA3 requires clients to also support the corresponding feature.
*
HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield
**Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be.
☆Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in the IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
