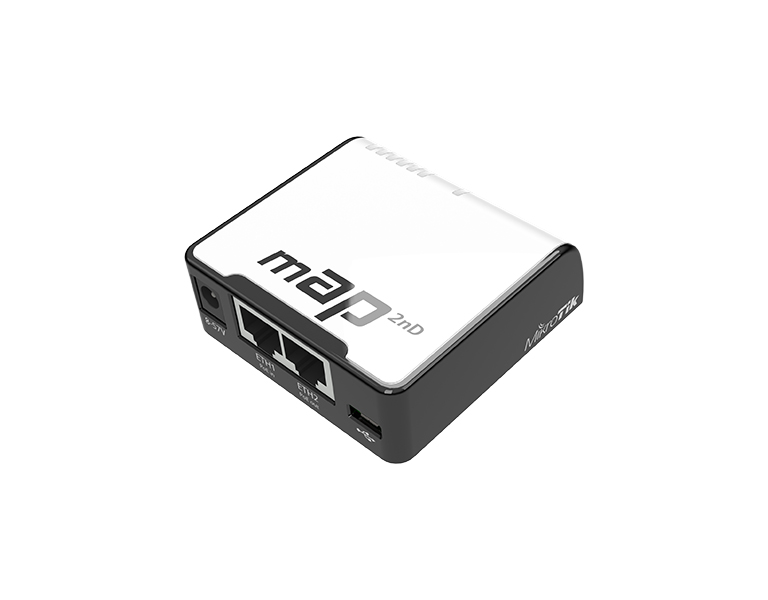

MikroTik RBmAP2nD mAP 650MHz CPU, 64MB RAM, 2xEthernet, RouterOS L4
The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
| Specifications | |
| Product code | RBmAP2nD |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 68 x 68 x 19mm |

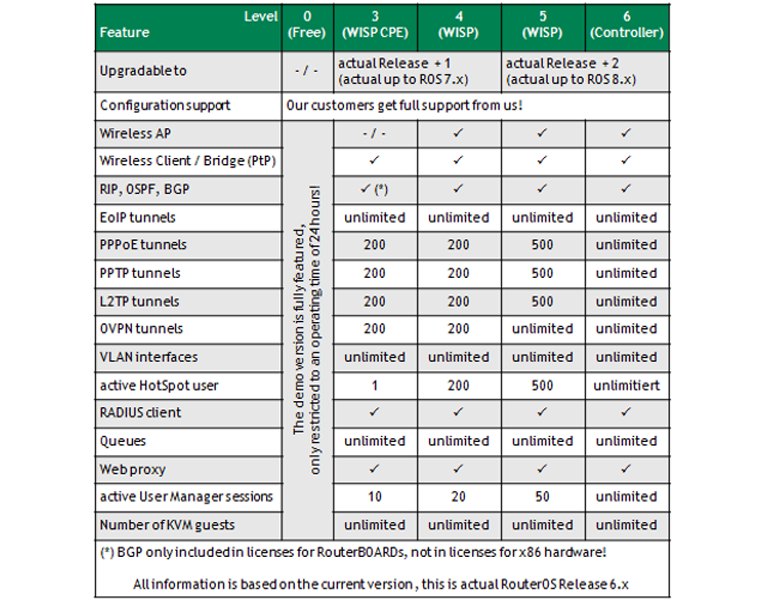

| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Powering | |
| MicroUSB input Voltage | 5-5 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| PoE out | Passive PoE |
| Cooling type | Passive |
| PoE-out ports | Ether2 |
| Number of DC inputs | 3 (MicroUSB, DC jack, PoE-IN) |
| DC jack input Voltage | 8-57 V |
| Max out per port output (input < 30 V) | 0.5 A |
| Max total out (A) | 0.5 A |
| Max power consumption | 5 W |
| Wireless | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 2 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | FCC, IC |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
