TP-LINK EAP110-Outdoor V3 300Mbps Wireless N Outdoor Access Point
| • Built for outdoor Wi-Fi applications • Up to 300Mbps Wi-Fi with 2x2 MIMO technology • High transmission power and high gain antennas provide a long-range coverage area • Durable, weatherproof enclosure to withstand fair and foul weather • Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation • Free cloud centralized management and Omada app for ultra convenience and easy management • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies • Supports management vlan for an enhanced network management |
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas

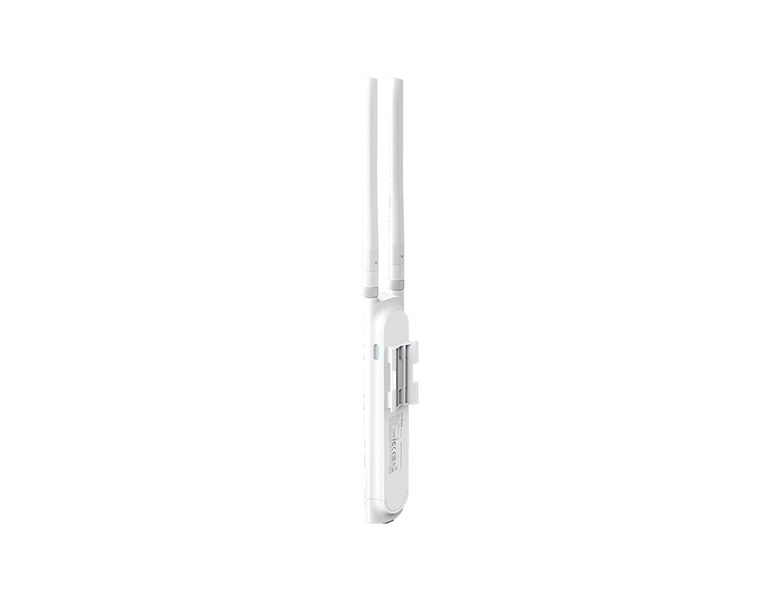

EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance
Even Better for Indoor Applications EAP110-Outdoor is just similar to a cellphone, with dimension: 215 x 46 x 27mm.
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Deployment
EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
| HARDWARE FEATURES | |

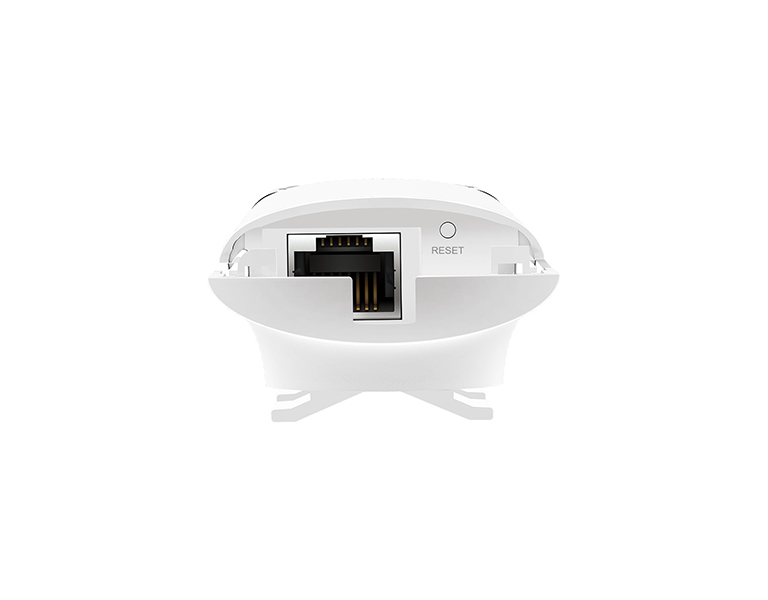

| Interface | Fast Ethernet (RJ-45) Port *1（Support Passive PoE） |
| Button | Reset |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 3.12 W |
| Dimensions ( W x D x H ) | 216 × 46 × 27 mm |
| Antenna Type | 2*3dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole / Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Transmit Power | CE： ≤20dBm (EIRP) FCC: ≤22dBm |
| Wireless Functions | Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certifications | CE, FCC, RoHS |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: -30°C-65°C Storage Temperature: -40°C-70°C Operating Humidity: 10%-90% non-condensing Storage Humidity: 5%-90% non-condensing |
| Package Contents | 300Mbps Wireless N Outdoor Access Point,EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
