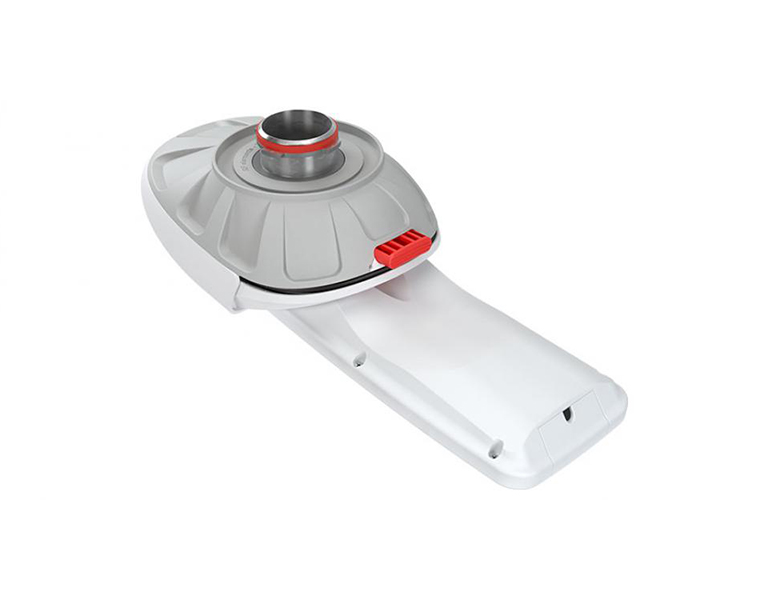

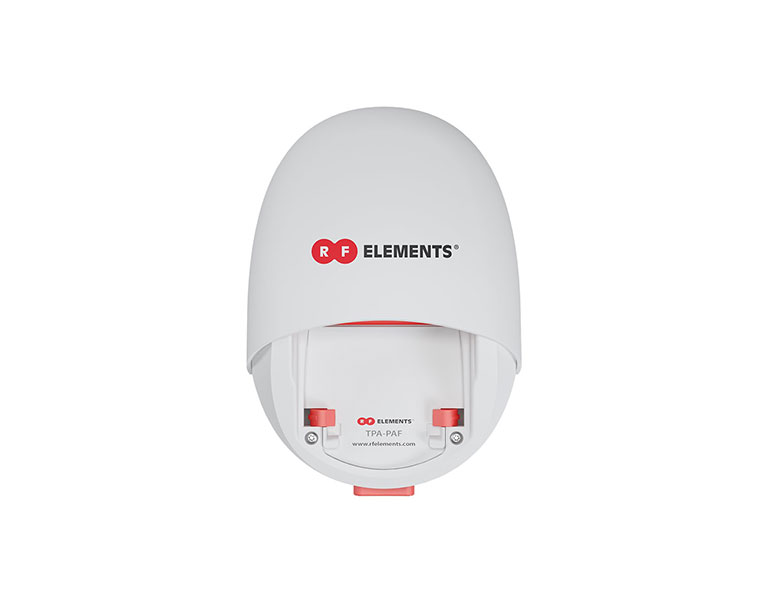

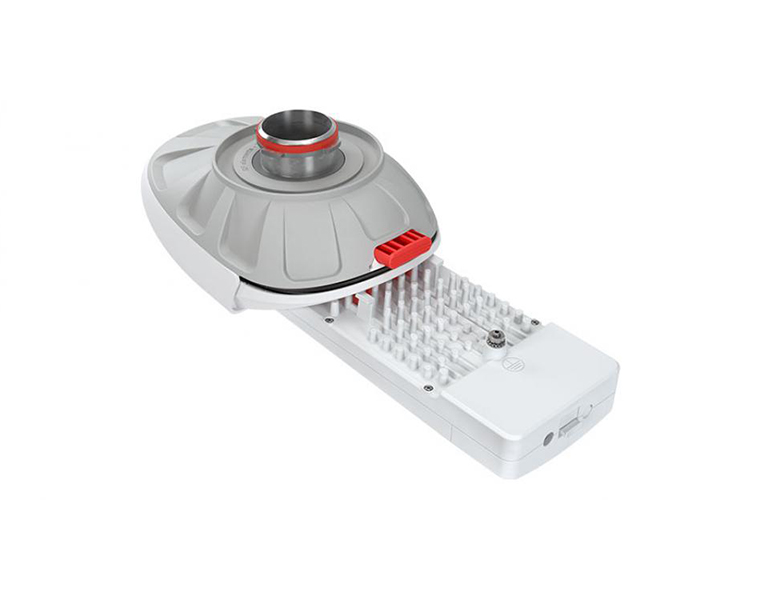

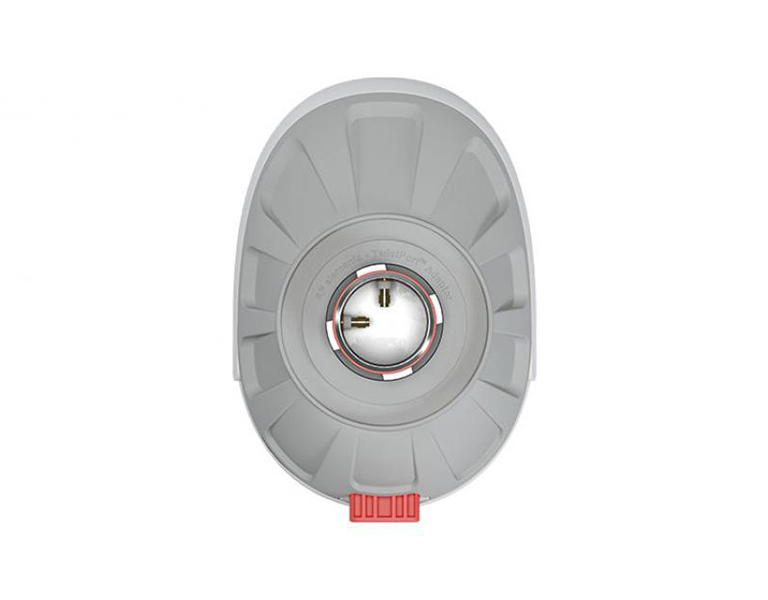

RF-Elements TPA-PAF Twistport adaptor for Rocket Prism 5AC and airFiber 5X
TwistPort Adaptor adapts 3rd party radios to RF elements® proprietary TwistPort™ waveguide connector. Integration of the radio is smooth and requires no tools. Making 3rd party radios compatible with TwistPort™ allows for using the radio with any TwistPort™ antenna ever made and enable superior performance, noise immunity and network scalability.
For LTU™ Rocket, airFiber® 5X and Rocket® Prism 5AC
This TP-A is also compatible with the LTU™ Rocket and AF-5XHD airFiber® and with newest Gen 2 of Rocket Prism 5AC radios. Complete List of compatible radios includes: UBNT™ LTU™ Rocket, airFiber® 5X, airFiber® 5XHD, Rocket Prism 5AC and Rocket Prism 5AC Gen2.
GPS Antenna Integration
TPA-PAF contains well protected space for GPS antenna that comes with UBNT® radios. After integration, GPS antenna and antenna cable are covered and well protected. No more issues with antenna attachment or with troubleshooting damaged GPS antennas.
Market Leading Performance
TwistPort Adaptors cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency with very well managed VSWR.
Easy Installation
LTU™ Rocket Fix
For TPA-PAF produced before 2020, there is a modification of plastic part required for use with LTU™ Rocket.
Here is the easy fix how-to video:
| Specifications | |
| Antenna Connection | TwistPort - Quick Locking Waveguide Port |
| Radio Connection | 2x Slide-On RP-SMA and 1x SMA for GPS |
| Materials | Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C |
| Wind Survival | 160 km/h |
| Weight | 0.34 Kg – single unit 0.52 Kg – single unit incl. package |
| Single Unit | Retail Box: 204 × 137 × 102 mm |
| Frequency Range | 5180 - 6400 MHz |
| Polarization | Dual Linear H + V |
| VSWR Max | 1.8 |
| Impedance | 50 Ohm |
| Compatible wireless platforms | |
| RF elements | any TwistPort™ Antenna |
| Ubiquiti Networks | LTU™ Rocket, Rocket® Prism 5AC, Rocket® Prism 5AC Gen2, airFiber® 5X, airFiber® 5X-HD |
| Package contents | |
| TwistPort™ Adaptor AF5X and LTU Mount Adaptor |
|
