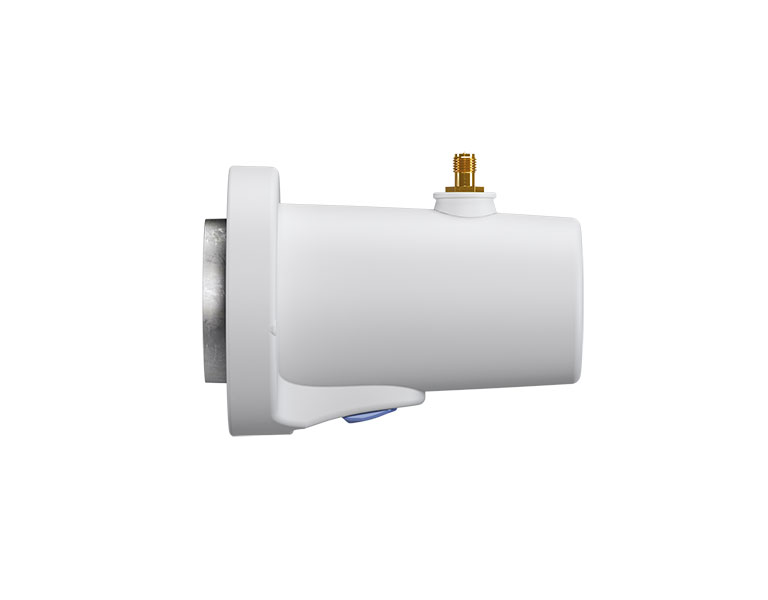

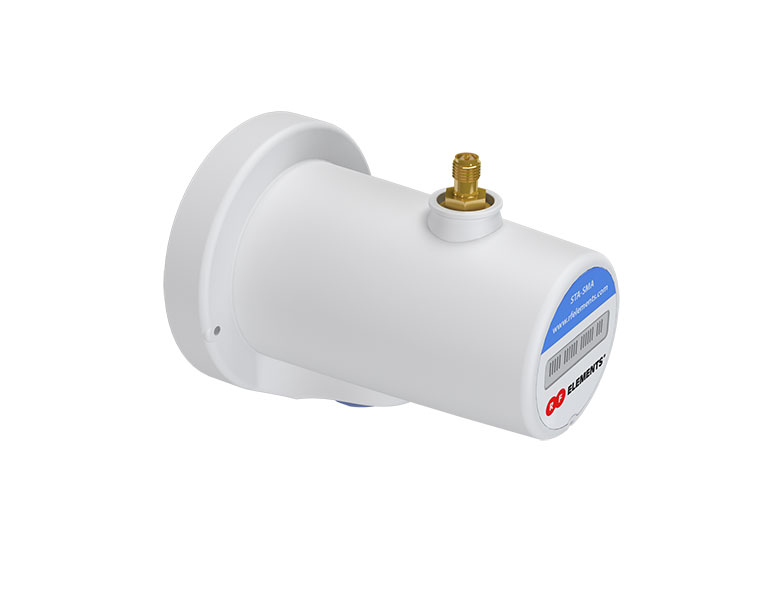

RF-Elements STA-SMA StarterAdapter SMA, 2x RP-SMA female connector
Product Code:
STA-SMA
11,50 €
(Includes VAT 24%)
Sales price without VAT:
9,27 €
Available
Next pickup date: 19/06/2025
RF-Elements STA-SMA StarterAdapter SMA, 2x RP-SMA female connector
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
RP-SMA Coaxial Interface For StarterDish™ Antennas
StarterAdapter™ SMA connects to StarterDish™ antennas and provides female RP-SMA connectors - standard coaxial interface for any 3rd party radios. STA-SMA has dual linear H+V polarization.
Performance
STA-SMA covers a wide spectrum of 5150 - 5950 MHz with VSWR well below 1.8 throughout the whole bandwidth.
Minimized Loss
STA-SMA is a waveguide-based adapter. Since waveguide has near-zero loss, the adapter introduces practically zero attenuation in the waveguide part. The transition from coaxial connectors to waveguide feeder is optimized for minimum loss as well.
Characteristics
| Specifications | |
| Antenna Connection | Waveguide Port |
| Radio Connection | 2x RP-SMA female |
| Materials | Insert - Aluminium Alloy Adapter - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C |
| Wind Survival | 160 km/h |
| Weight | 0.12 kg – single unit 0.16 kg – single unit incl. package |
| Single Unit | Retail Box: 120 × 75 × 75 mm |
| Frequency Range | 5150 - 5950 MHz |
| Polarization | Dual Linear H + V |
| VSWR Max | 1.8 |
| Impedance | 50 Ohm |
| Compatible wireless platforms | |
| RF elements | any StarterDish™ Antennas |
