Ubiquiti AF-5G30-S45 5GHz, 30dBi Slant 45 Antenna for airFiberX, 2pcs
Overview
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).
Powerful Performance

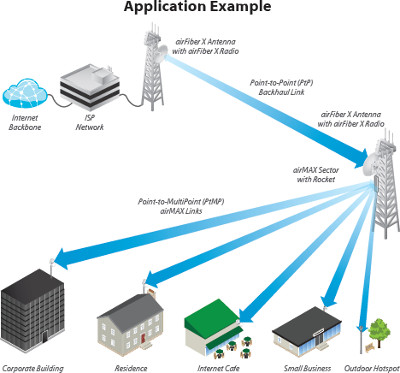

The airFiber X antenna delivers 2x2, dual-polarity performance. Below is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers
Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Plug and Play Integration
airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools.
Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

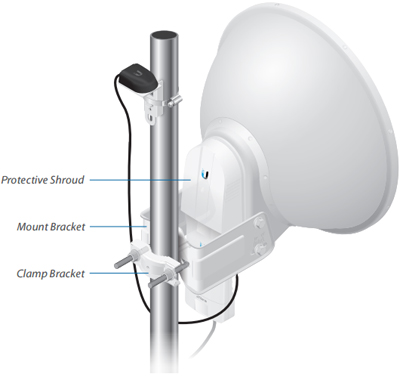

Hardware Overview
Innovative Mechanical Design
Secure pole-mounting
Maintains the position of the dish during harsh outdoor conditions.
Weatherproof Design
Protective shroud
Protects the cables and connectors from the elements.
| Specifications | |
| Dimensions* | 650 x 386 mm |
| Weight** | 7.4 kg |
| Frequency Range | 4.9 - 5.9 GHz |
| Gain | 4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dBi |
| + 45° Beamwidth | 5.8° (3 dB) |
| - 45° Beamwidth | 5.8° (3 dB) |
| F/B Ratio | 30 dB |
| Max. VSWR | 1.6:1 |
| Wind Loading | 790 N @ 200 km/h |
| Wind Survivability | 200 km/h |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |

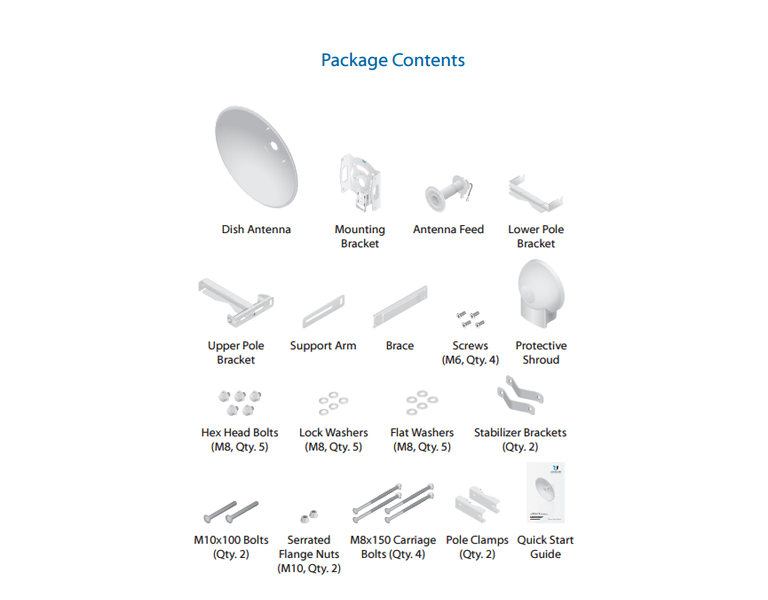

| Mounting | Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included |
| *Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately) **Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately) |
|
