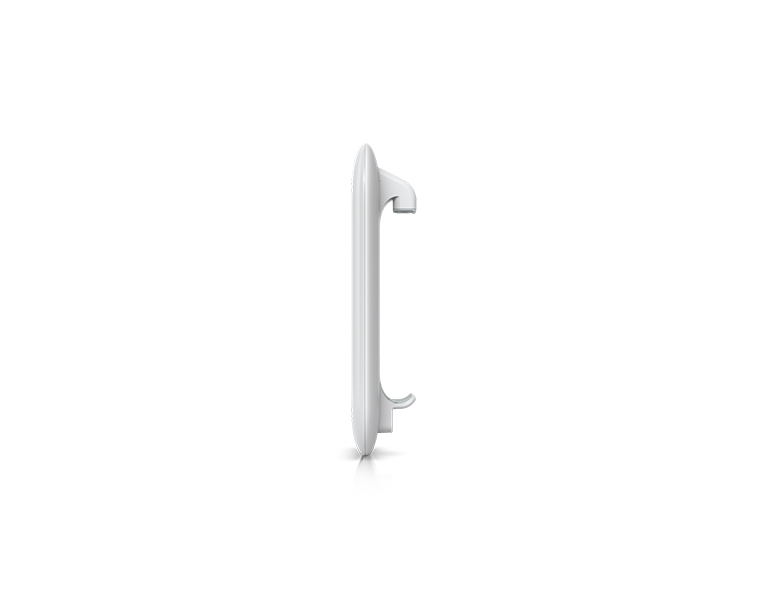

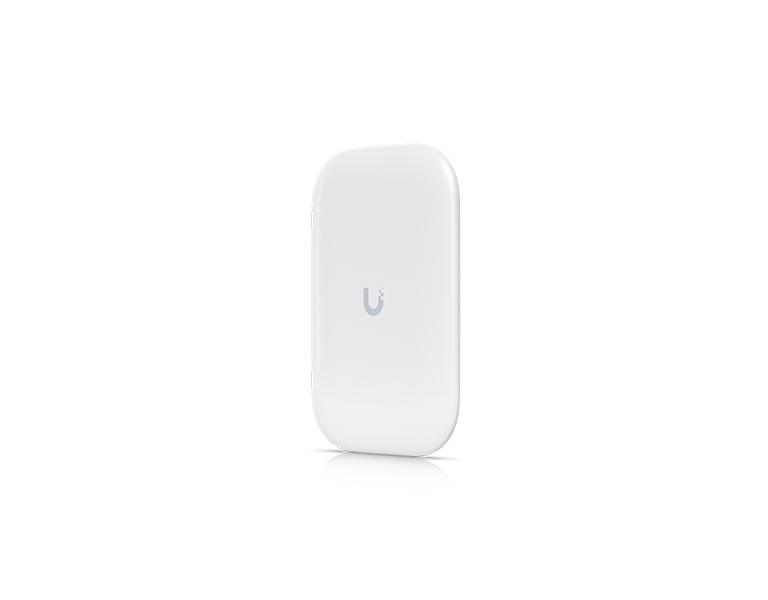

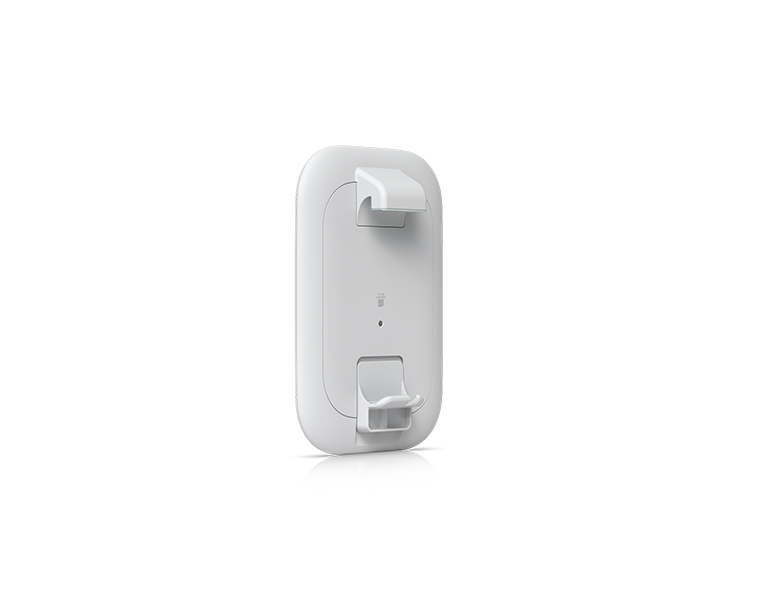

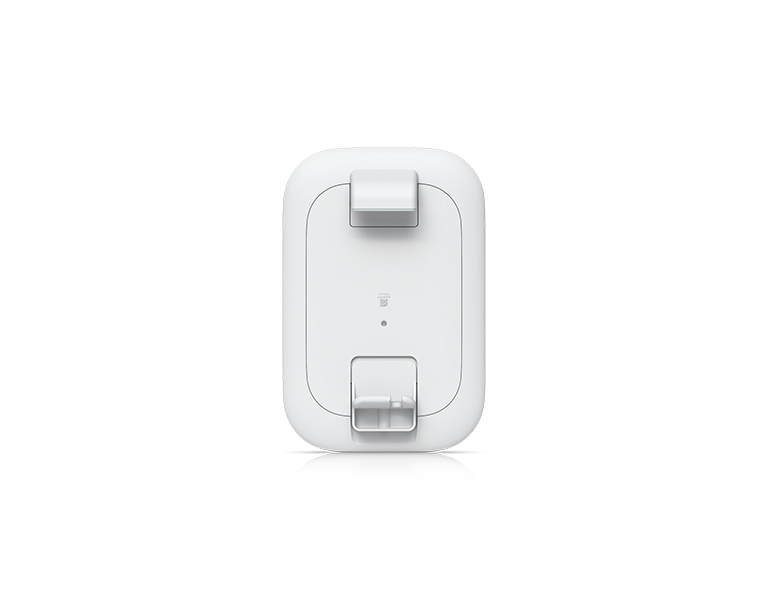

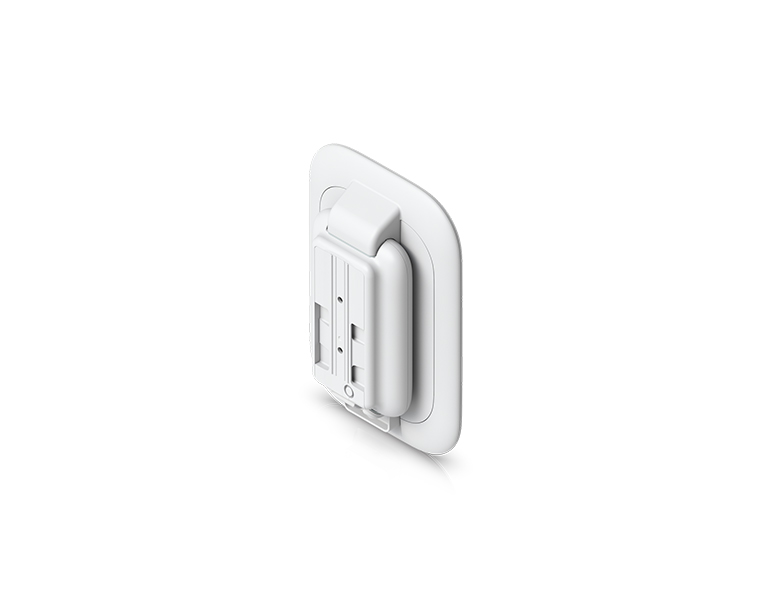

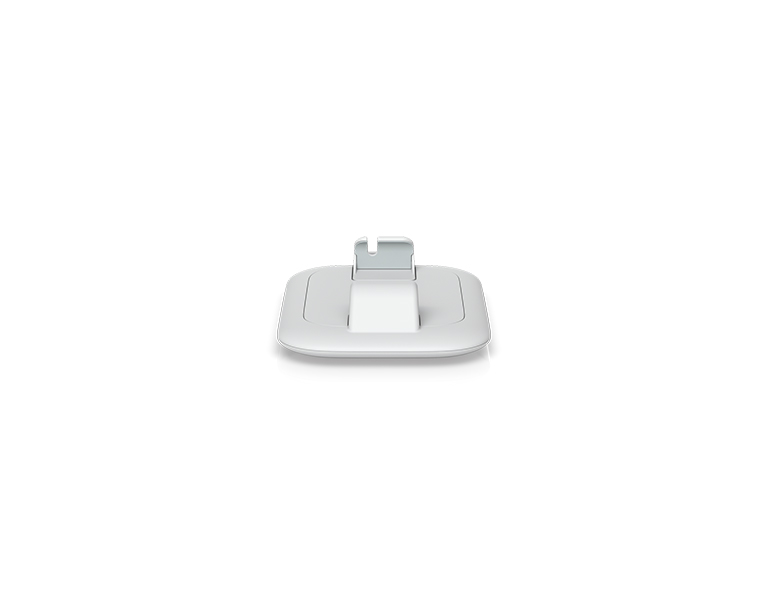

Ubiquiti UACC-UK-Ultra-Panel-Antenna
UK Ultra Panel Antenna is a specially designed dual-band sector antenna with 90° beamwidth and 10 dBi gain in the 2.4 GHz band and 15 dBi in the 5 GHz band. It is intended for installation in combination with a UniFi access point UK-Ultra (UniFi Swiss Knife Ultra). Thanks to the sophisticated design, it is simply slid onto the access point and secured. Due to the IPx6 certification and the use of UV stable polycarbonate, it is possible to install the antenna in outdoor areas and thus ensure the coverage of larger areas than the UK-Ultra alone when using integrated antennas.
Sleek, clip-on external antenna for the Swiss Army Knife Ultra that provides 90-degree directional, extended range coverage.
• Compatible with Swiss Army Knife Ultra
• High-efficiency 90° directional radiation pattern
• Optimized for dual-band, extended range coverage
• Clip-on attachment with support for all Swiss Army Knife Ultra mounting methods
• Weatherproof (outdoor exposed)
| Specifications | |
| Dimensions | 138 x 207 x 43 mm |
| Weight | 450 g |
| Enclosure materials | UV-stabilized polycarbonate, aluminum |
| Mounting | 1-2" on pipe outer diameter Compatible with the UK-Ultra |
| Wind survivability | 75 N at 200 km/h |
| Weatherproofing | IPX6 |
| Antenna Gain 2.4 GHz 5 GHz |
10 dBi 15 dBi |
