MikroTik MTAD-5G-30D3-PA, mANT30 PA, 5GHz 30dBi dish antenna

Product Code:
MTAD-5G-30D3-PA
245,00 €
(Includes VAT 24%)
Sales price without VAT:
197,58 €
Available
MikroTik MTAD-5G-30D3-PA, mANT30 PA, 5GHz 30dBi dish antenna
Shipping cost calculation:
Quantity
Add to Cart
Category:
Manufacturer:
Warranty:
12 Months
Description
Characteristics
Downloads
Description

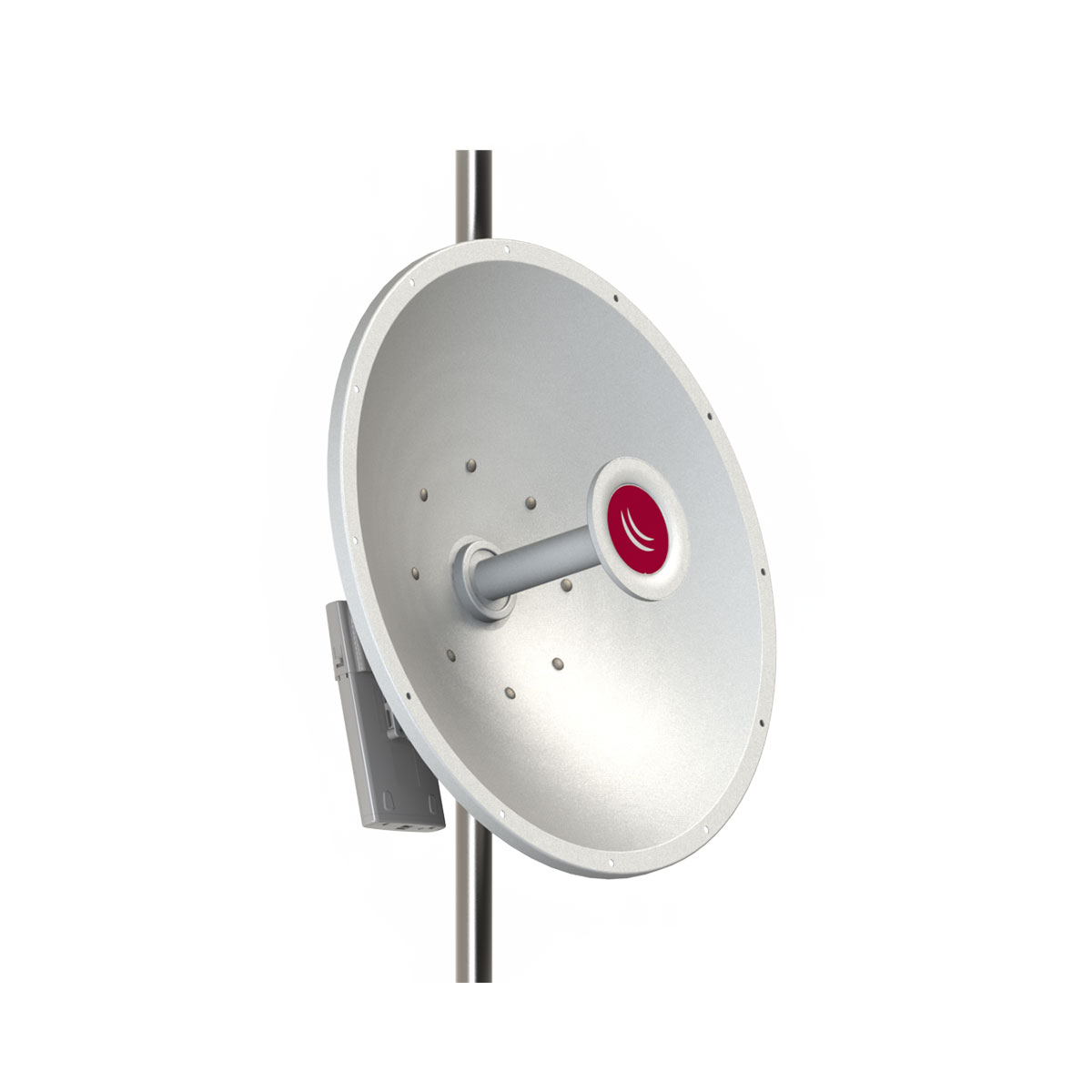

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

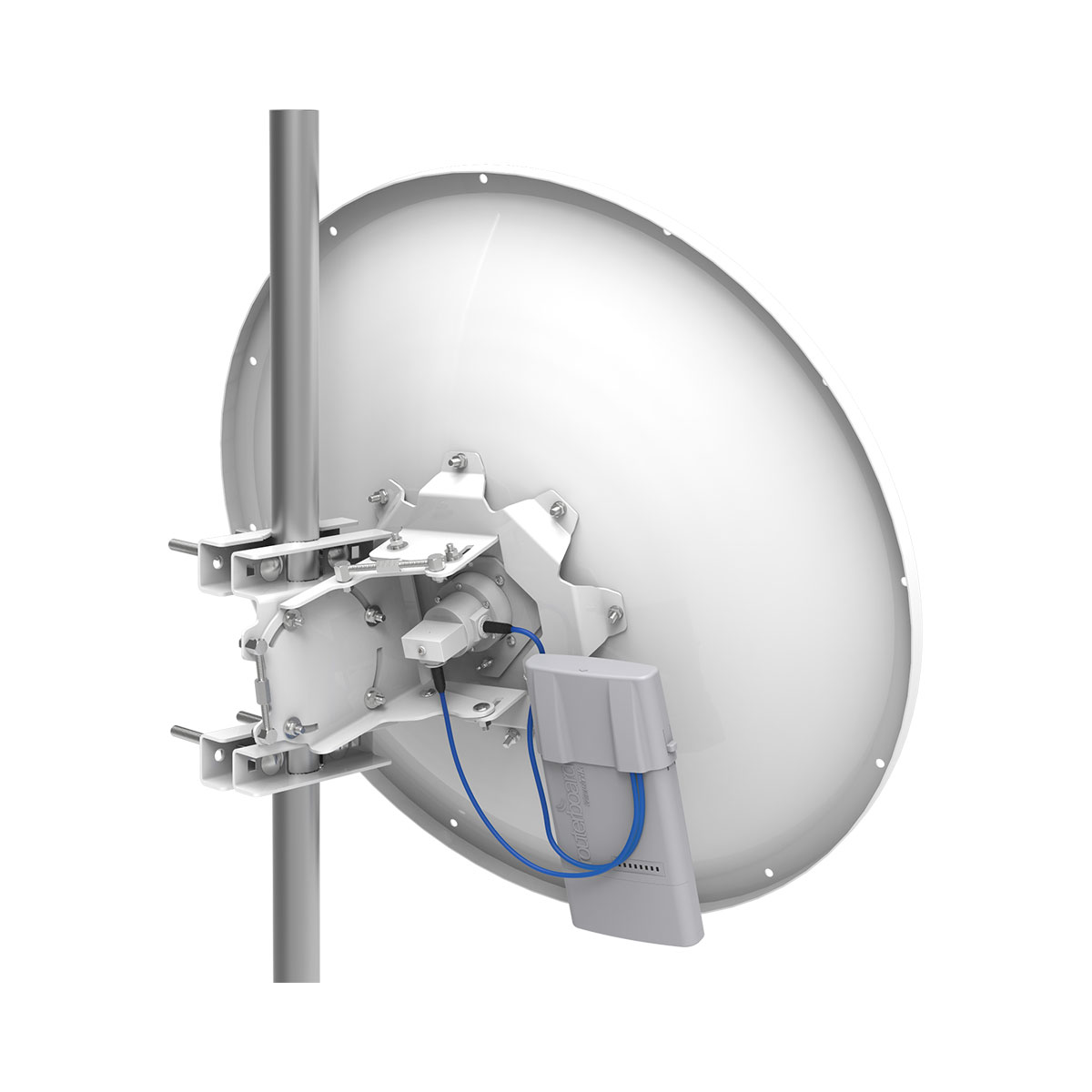

Note: Basebox wireless device pictured for illustrative purposes. It is not included

Characteristics
Specifications
Product code MTAD-5G-30D3-PA
Beamwidth +/-2.5 deg
Certification CE, ROHS
Connector 2x RP-SMA Female (outside thread)
Cross Polarization >40 dB
Diameter x Depth 70 x 45cm (27.5 x 17.8in)
Elevation adjustment range +/- 15 deg
Frequency Range 4.7-5.875 GHz
Front-to-Back Ratio >30 dB
Impedance 50 ohms
Outdoor Rating ETSI EN 300 019-2-4
Packaged size 73 x 73 x 20cm (29 x2 9 x 8in)
Packaged weight 8.4 kg (18,5)
Polarization Vertical and Horizontal
Pole Mount Diameter Range 3 to 10cm (1.2 to 3.9in)
Port to Port Isolation >40dB min
Power Rating 100W
Reflector Aluminum
Standards EN 302 326 DN1, DN2, DN3, DN5
Tested ambient temperature -50°C to 80°C
VSWR ≤ 1.4 typ, ≤ 1.8 max
Weight 5.7kg (12.6 lbs)
Wind Load (125 mph) 181.4kg (400 lbs), 50 kg at 40 m/s,
28 kg at 30 m/s
Wind Survivability 201kph (125mph)
