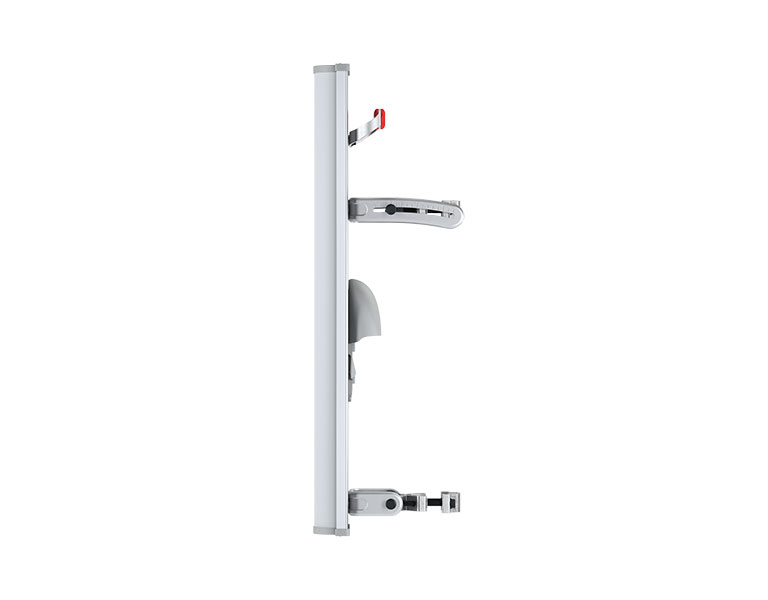

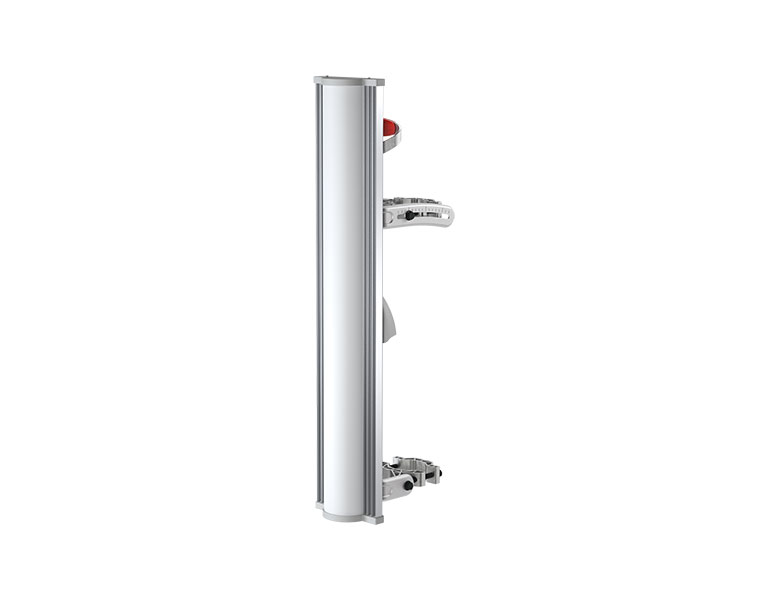

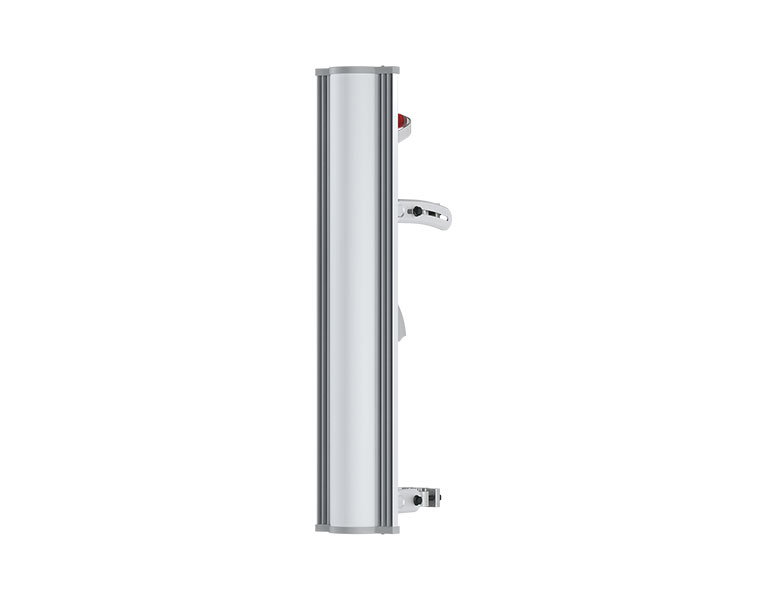

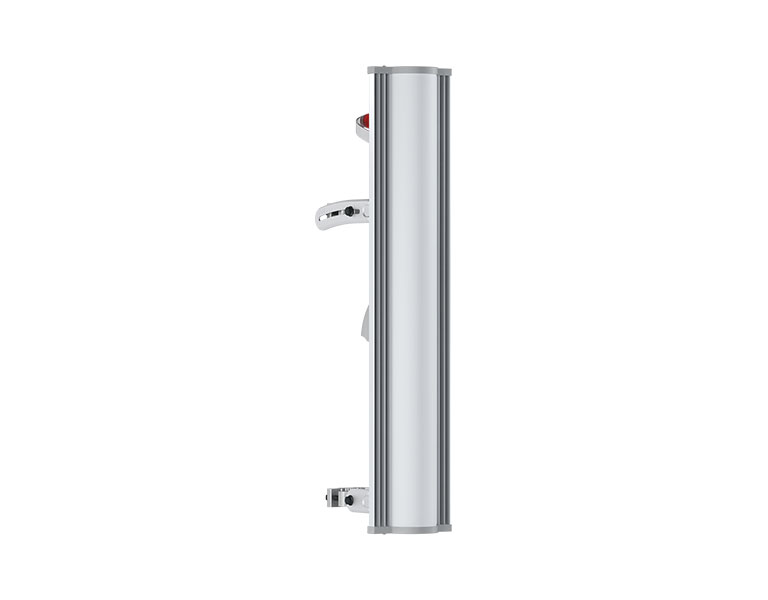

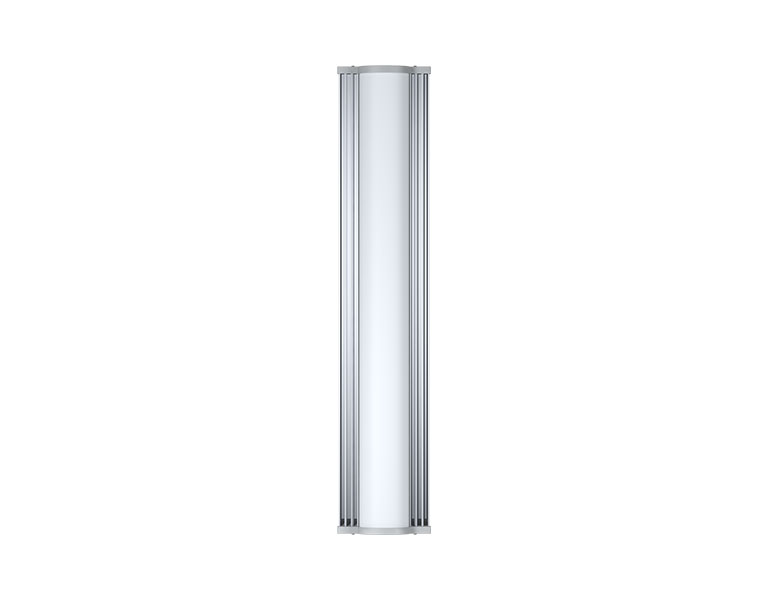

RF-Elements AS-5-20 Array Sector 5-20

Product Code:
AS-5-20
165,00 €
(Includes VAT 24%)
Sales price without VAT:
133,06 €
7 Days
RF-Elements AS-5-20 Array Sector 5-20
Shipping cost calculation:
Quantity
Add to Cart
Category:
Manufacturer:
Warranty:
24 Months
Description
Characteristics
Downloads
Description
Sector 5GHz
Gain: 20 dBi

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications.

Best in Class Performance
Gain stability across spectrum
RF elements® Array Sector Antennas have optimized gain performance in the whole useful bandwidth. Thanks to the constant gain, the antennas deliver excellent performance regardless which channel is used.
Wide Band Performance
Array Sector Antennas operate in the frequency range 5150-5850MHz. The 700MHz wide working spectrum covers U-NII-1 to U-NII-3 bands.
BackShield™ for cluster deployments
Array Sector Antennas have integrated BackShield™ - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.
Light & Compact
Array Sector Antennas are made of high grade aluminium that makes them compact, light, and  extremely durable.

Stable Gain Across The Band
The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 5150-5850 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.

Optimized For Co-Location
Array Sector Antennas feature BackShield™, our patented structure that effectively mitigates sidelobes in azimuthal plane and parasitic back radiation. Backshield™ significantly improves co-location capability in dense cluster deployments.

BackShield™
BackShield™ is our patented frequency-selective surface that effectively attenuates back radiation and the side lobes in the azimuthal plane. BackShield™ is integrated into the antenna structure so there is no need for aftermarket accessory shields.

Wide Platform Compatibility
Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.

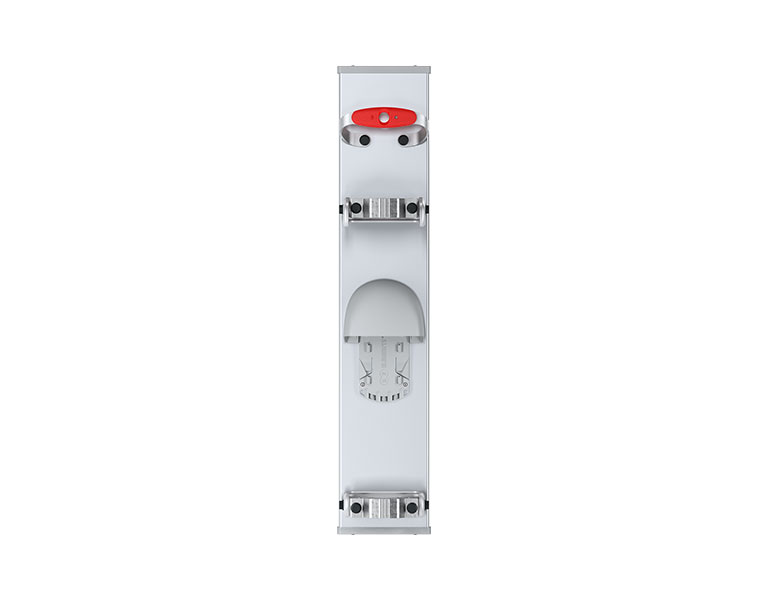

New Antenna Bracket
Array Sector Antennas feature an innovative mounting system composed of minimum parts for quick & easy assembly, installation, and alignment. Stainless steel hardware has black colored anti-friction surface coating to prevent seizing.

Durable Build
Solid extruded aluminium body enables Array Sector Antennas endure any weather conditions. We use materials of highest quality: extruded and stamped aluminium, surface coated stainless steel, UV resistant ABS plastic & high density polyethylene.

Hardware with Anti-Seize Coating
The Array Sector Antennas have hardware with black-colored anti-friction surface treatment using polymer-based tribological dry coating with sub-microscopic lubricant particles providing effective protection from seizing.



Array Sector 5-20 Unboxing
Array Sector Antennas are delivered in smart designed ecological packaging that saves the shipping cost. Check the unboxing video below.

Characteristics
Specifications
Antenna Connection 2x RP-SMA on integrated semi-flex pigtails
Antenna Type Patch Array Sector
Materials UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel
Enviromental IP55
Temperature -35°C to +60°C
Wind Survival 160 km/hour (100 miles/h)
Wind Loading 160 N at 160 km/hour (100 miles/h)
Electrical Downtilt
Pole Mounting Diameter 40-80 mm (1.5-3.1 inch)
Recommend as close to 80 mm (3.1 inch) as possible
Weight 3.5 kg – single unit
Performance
Frequency Range 5150 - 5850 MHz
Gain 20 dBi
Azimuth Beam Width -3 dB H 80° / V 71°
Elevation Beam Width -3 dB H 3.5° / V 3.5°
Azimuth Beam Width -6 dB H 100° / V 100°
Elevation Beam Width -6 dB H 4.5° / V 4.5°
Front-to-Back Ratio (Min) 30 dB
Beam Efficiency** 69 %
(**Main beam defined up to first null)
Cross Pol Isolation H 27 dB / V 27 dB
Impedance 50 Ohm
VSWR Max 1.7
VSWR Typical 1.4
Isolation Between Ports 30 dB
Compatible wireless platforms
RF elements® StationBox® S, StationBox® S CARRIER CLASS, RockShield™
Cambium Networks™ ePMP™ 1000AP and CSM*1 , ePMP™ 2000AP*2, ePMP™ 3000L AP*3
MikroTik™ BaseBox*4 , NetBox*4 , NetMetal*4
Ubiquiti Networks™ Rocket™ M5, Rocket™ M5 Titanium, Rocket™ 5ac, Rocket™ 5ac Lite, Rocket™ 5ac Prism, Rocket™ 5ac Prism Gen2, airFiber® 5X, airFiber® 5X-HD, LTU™ Rocket
Mimosa® by Airspan A5x
TP-Link Pharos WBS510

*1 with EasyBracket™ for ePMP™
*2 with EB_EPMP2
*3 with EB_ePMP3kL
*4 with EasyBracket™ 912
