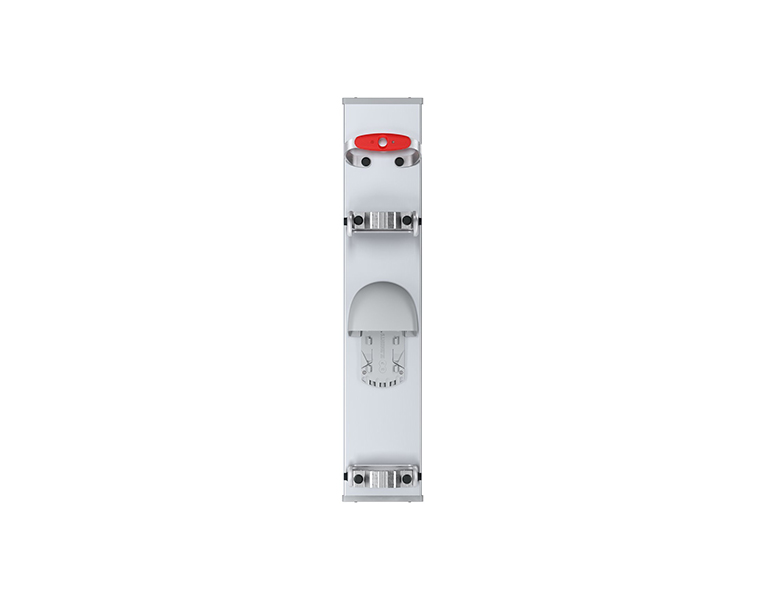

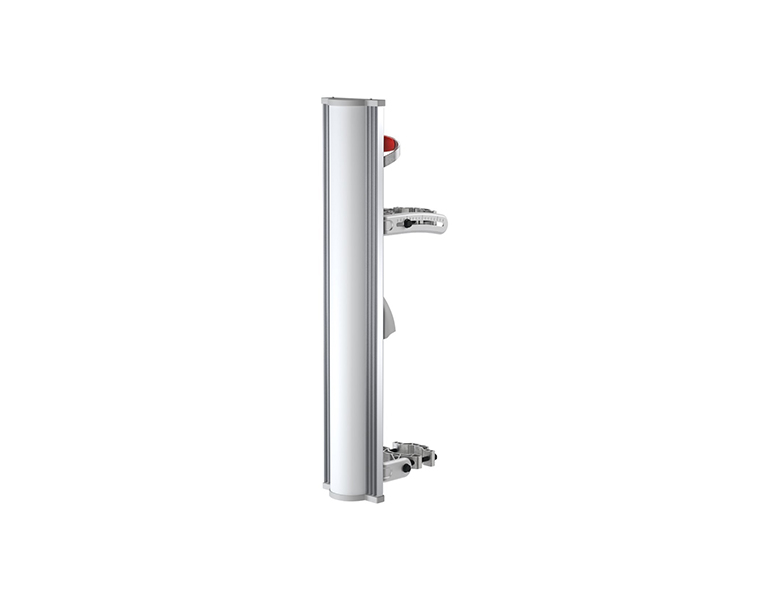

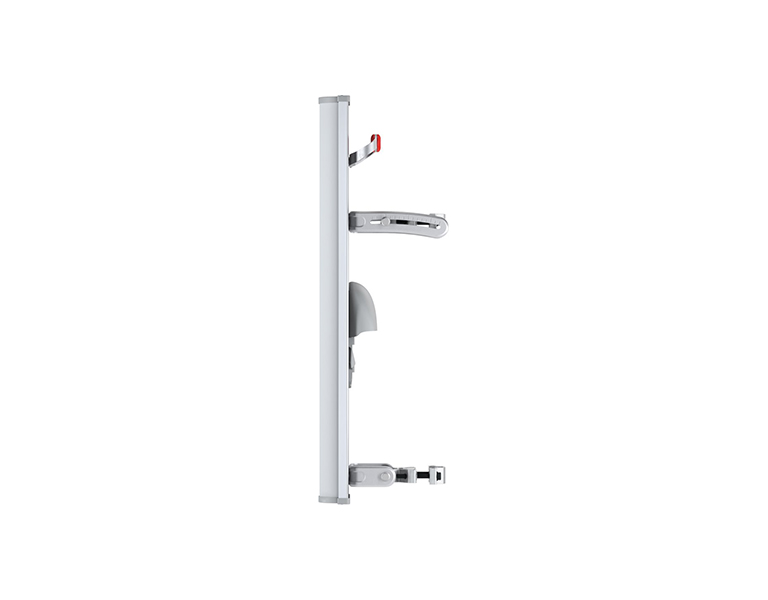

RF-Elements AS-2-14 Array Sector Antenna 2.4 GHz, 14 dBi
The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications. Sector dualpolarization antenna Array Sector 2-14 from the manufacturer RF Elements operating in the 2.4 GHz band with 14 dBi gain and a beam angle of 112°. Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.
Stable Gain Across The Band
The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 2400 - 2484 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.
Wide Platform Compatibility
Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.
| Specifications | |
| Antenna Connection | 2x RP-SMA on integrated semi-flex pigtails |
| Antenna Type | Patch Array Sector |
| Materials | UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel |
| Enviromental | IP55 |
| Temperature | -35°C to +60°C |
| Wind Survival | 160 km/hour (100 miles/h) |
| Wind Loading | 217/65 N - Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 1782/533 cm2 - Front/Side |
| Electrical Downtilt | 0° |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) Recommend as close to 80 mm (3.1 inch) as possible |
| Weight | 3.7 kg – single unit 4.0 kg – single unit incl. package |
| Single Unit | Retail Box: 834 x 167 x 130 mm |
| Performance | |
| Frequency Range | 2400 - 2484 MHz |
| Gain | 14 dBi |
| Polarization | Dual Linear H + V |
| Azimuth Beam Width -3 dB | H 71° / V 80° |
| Elevation Beam Width -3 dB | H 15° / V 15° |
| Azimuth Beam Width -6 dB | H 112° / V 112° |
| Elevation Beam Width -6 dB | H 21° / V 21° |
| Front-to-Back Ratio (Min) | 21 dB |
| Beam Efficiency** | 88% (**Main beam defined up to first null) |
| Cross Pol Isolation | H 30 dB / V 30 dB |
| Impedance | 50 Ohm |
| VSWR Max | 1.6 |
| VSWR Typical | 1.4 |
| Isolation Between Ports | 35 dB |
| Compatible wireless platforms | |
| RF elements® | StationBox® S, StationBox® S CARRIER CLASS, RockShield™ |
| Cambium Networks™ | ePMP™ 1000AP and CSM*1 |
| MikroTik™ | BaseBox*2 , NetBox*2 , NetMetal*2 |
| Ubiquiti Networks™ | Rocket™ M2, Rocket™ 2AC Prism |
| TP-Link | Pharos WBS210 |
*1 with EasyBracket™ for ePMP™
*2 with EasyBracket™ 912
