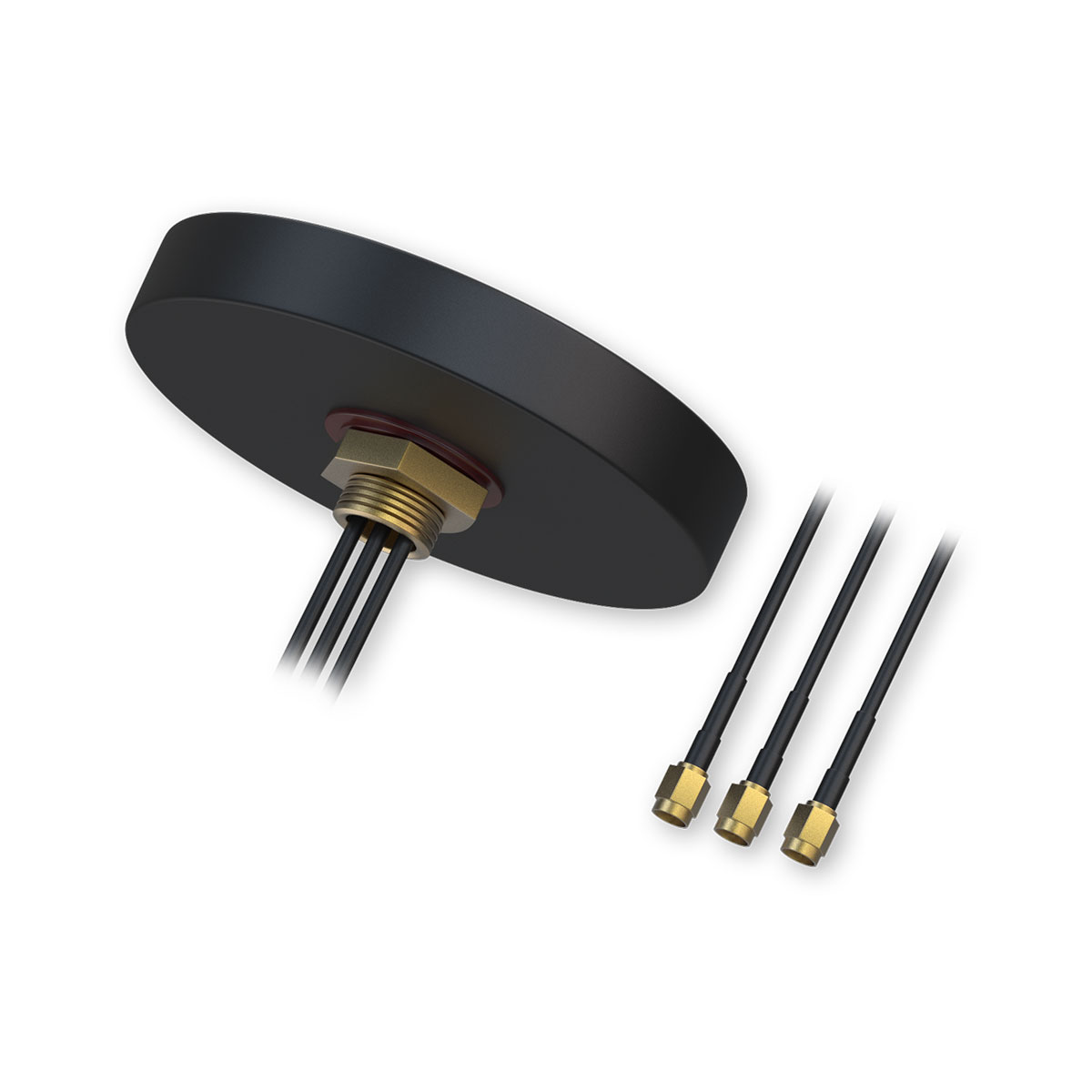

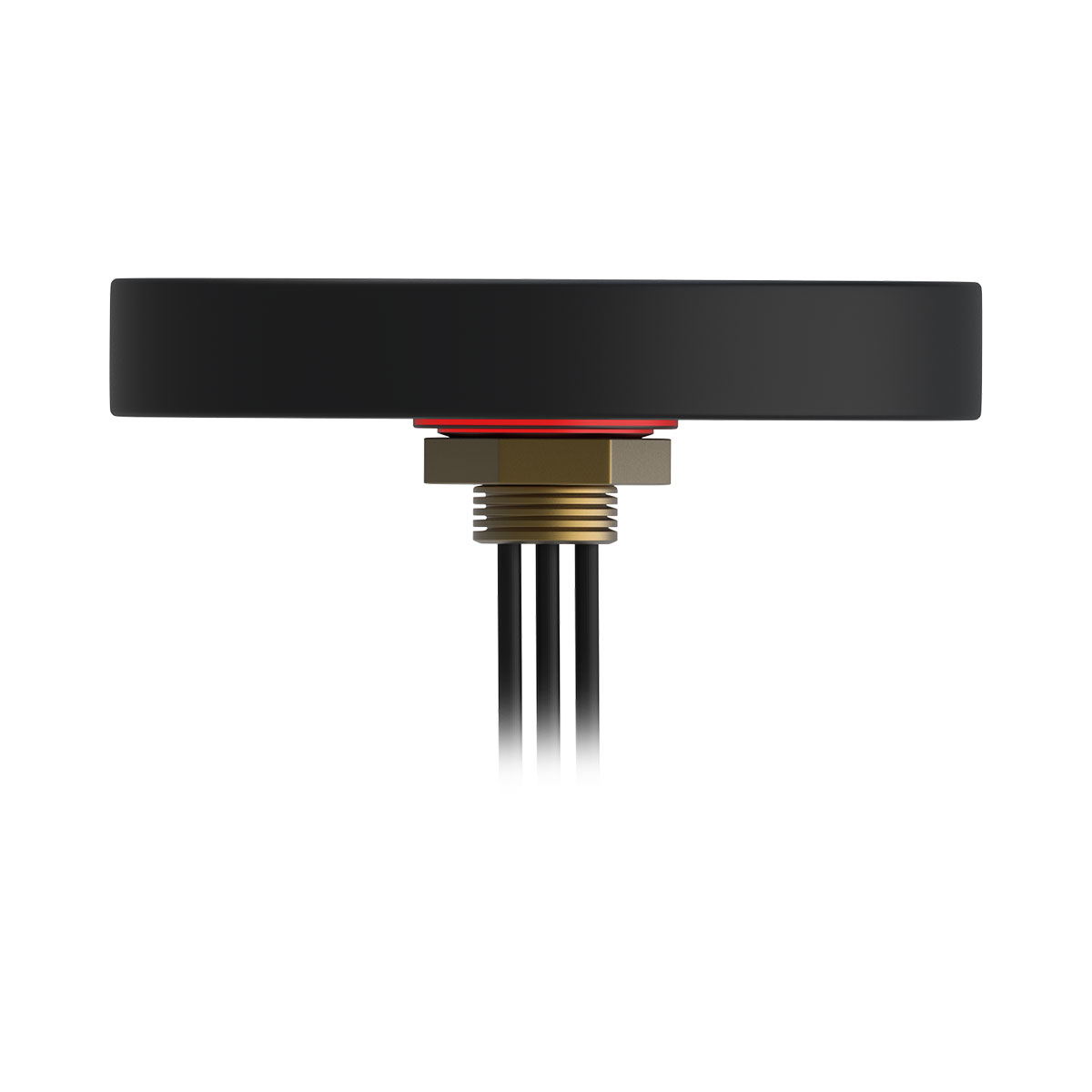

Teltonika 003R-00254 COMBO SISO Mobile/GNSS/WiFi ROOF SMA Antenna
Product Code:
PR1KCS28
Available
Teltonika 003R-00254 COMBO SISO Mobile/GNSS/WiFi ROOF SMA Antenna
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
COMBO SISO Mobile/GNSS/WiFi ROOF SMA Antenna. Compatible with RUT240, RUT950, RUT955, TRB245 and TRB255.
Characteristics
| Specifications | |
| GNSS Antenna | |
| Frequency Range | 698-960/1710-2690 MHz |
| Polarization | Linear |
| Impedance | 2.5 dBi |
| LNA Gain | 2.0 dBi |
| LNA Noise Figure | <3.0 |
| Supply Voltage | 50 Ω |
| Current Consumption | <15 mA |
| LNA V.S.W.R | 50 Ω |
| Connector | SMA Male |
| LTE Antenna | |
| Frequency Range | 850/900/1800/1900/2170 MHz |
| Bandwidth | ±90/280 MHz |
| Polarization | Vertical |
| Gain | 3.5 dBi |
| V.S.W.R | <1.5:1 |
| Impedance | 50 Ω |
| Connector | SMA Male |
| WIFI Antenna | |
| Frequency Range | 2350-2500 MHz |
| Bandwidth | ±100 MHz |
| Polarization | Vertical |
| Gain | 2.5 dBi |
| V.S.W.R | 1.5:1 |
| Impedance | 50 Ω |
| Connector | RP SMA Male |
| Mechanical/Environmental | |
| Mounting Method | Screw |
| Radome Ingress Protection rating | IP65 |
| Radome Material | ABS |
| Weight | <250g |
| Housing Dimensions | Ø 80x15 mm |

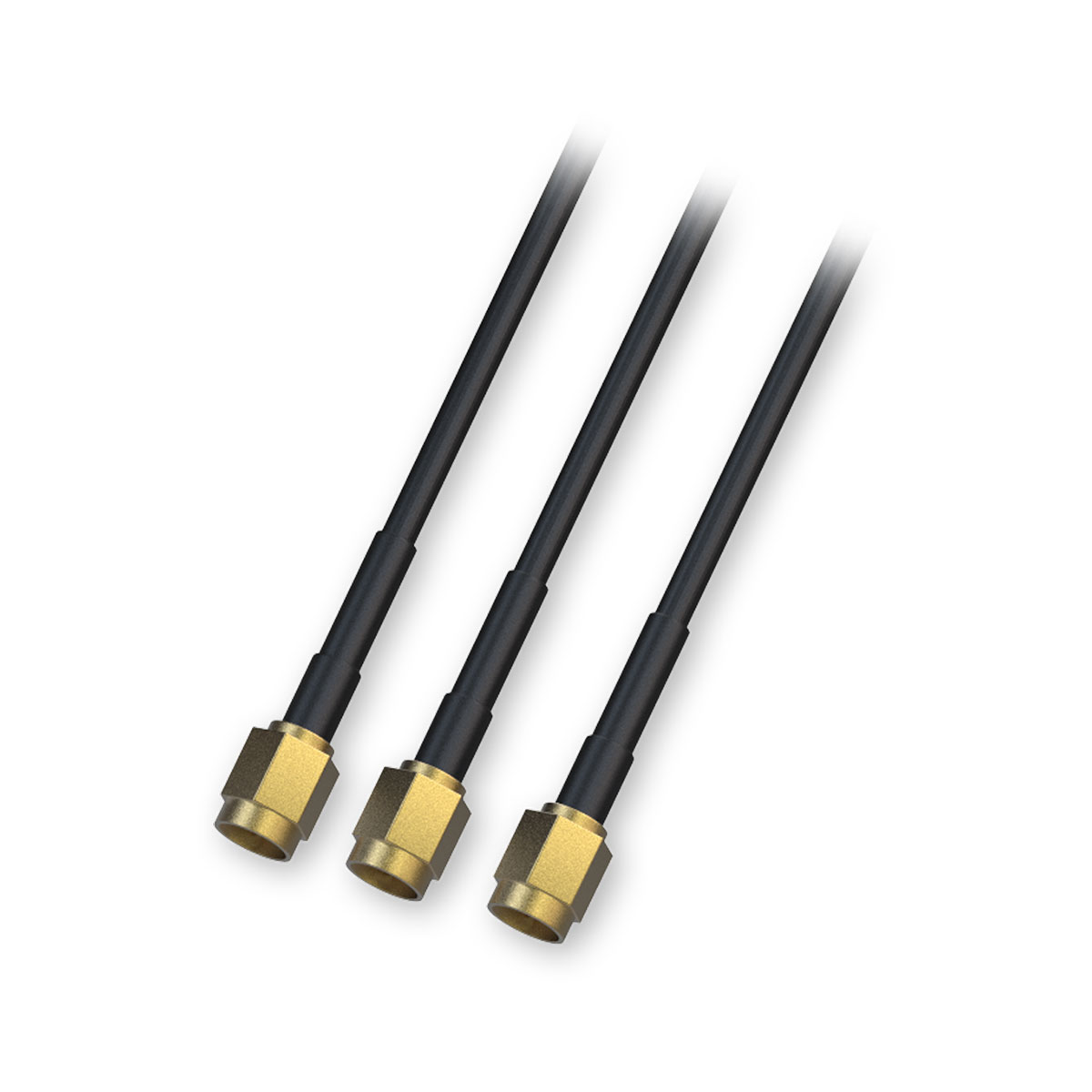

| Cable | 3x RG174, 3000 mm |
| RoHS Compliant | Yes |
