Teltonika 003R-00250 3.5dBi GNSS Adhesive SMA Antenna
Product Code:
PR1KSG30
9,00 €
(Includes VAT 24%)
Sales price without VAT:
7,26 €
Available
Teltonika 003R-00250 3.5dBi GNSS Adhesive SMA Antenna
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

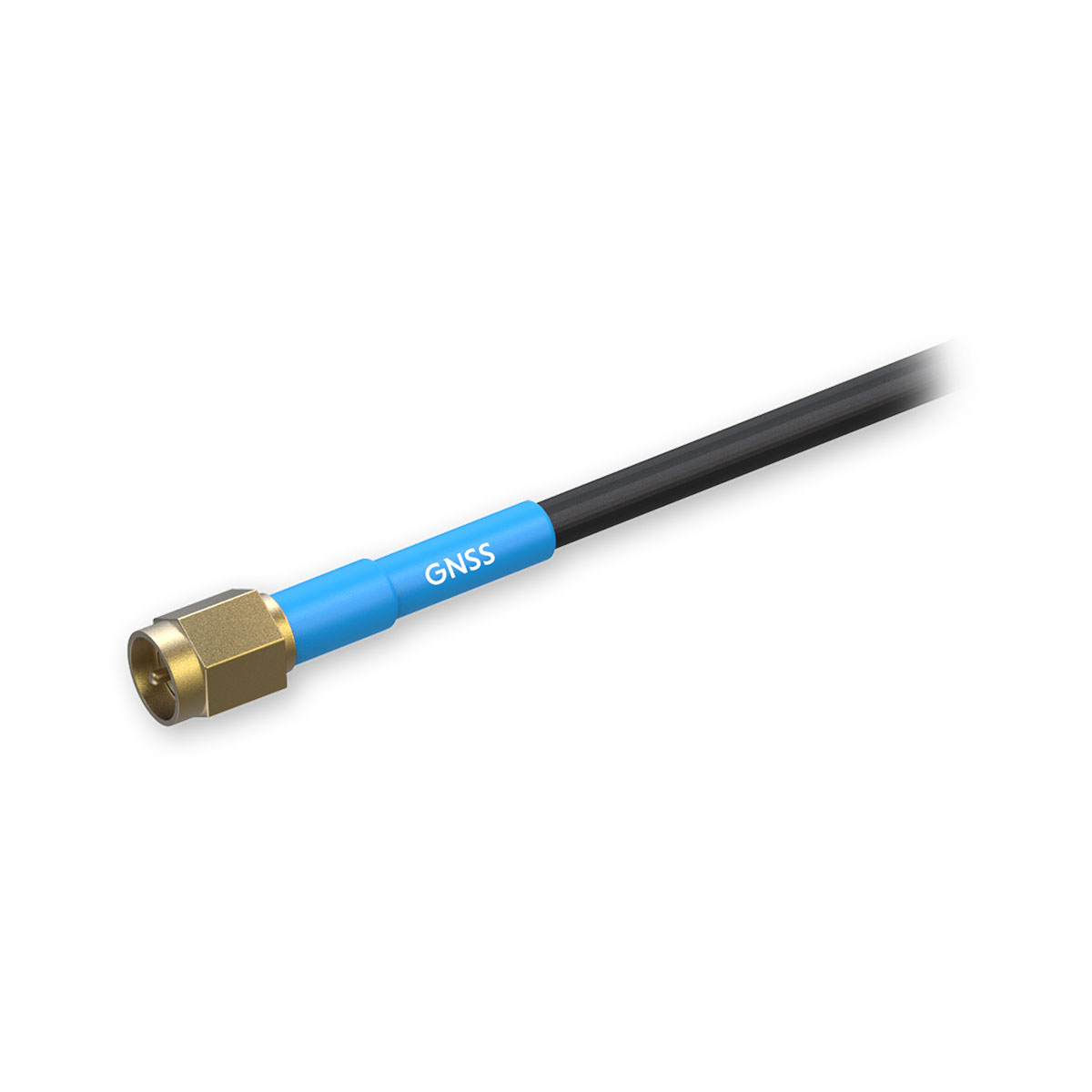

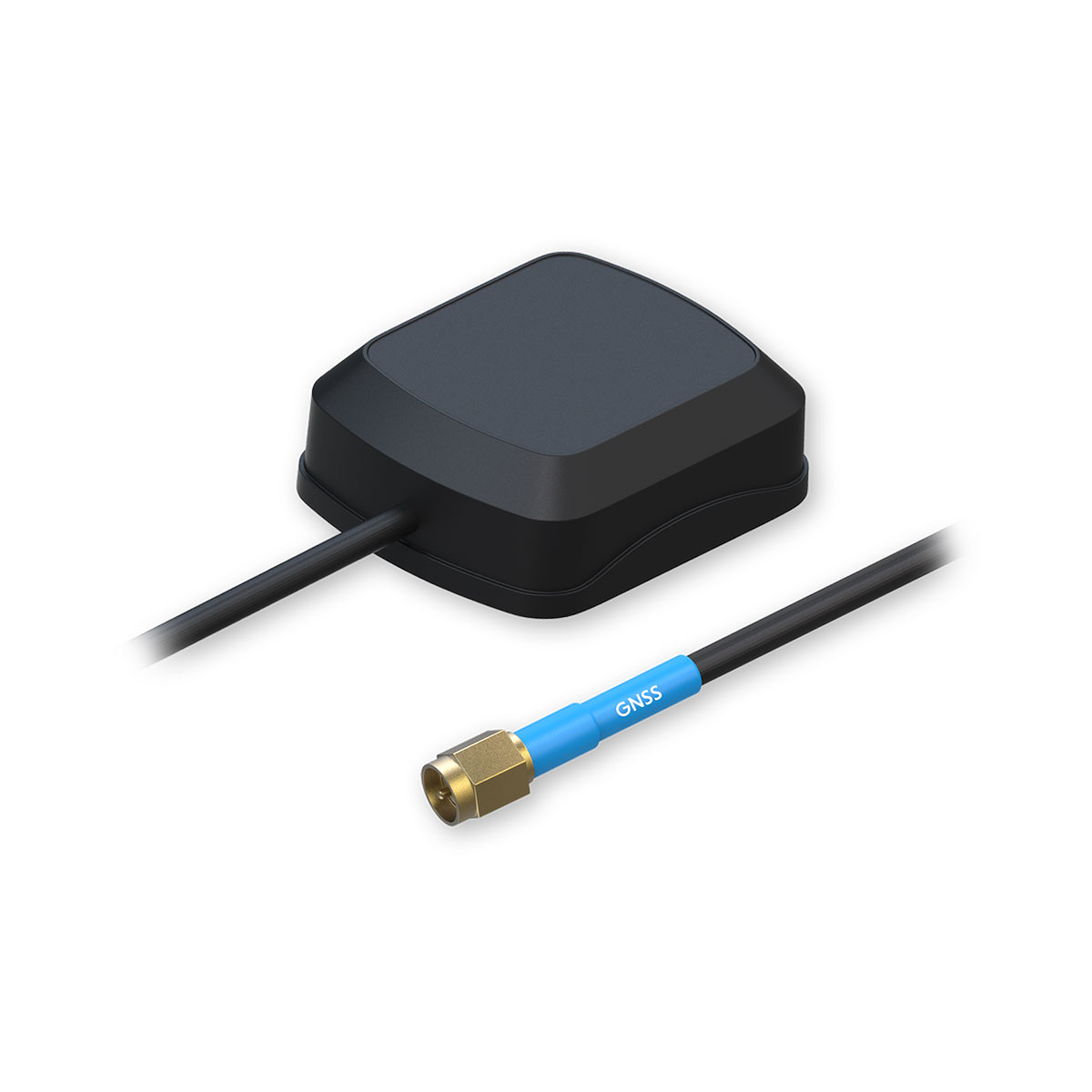

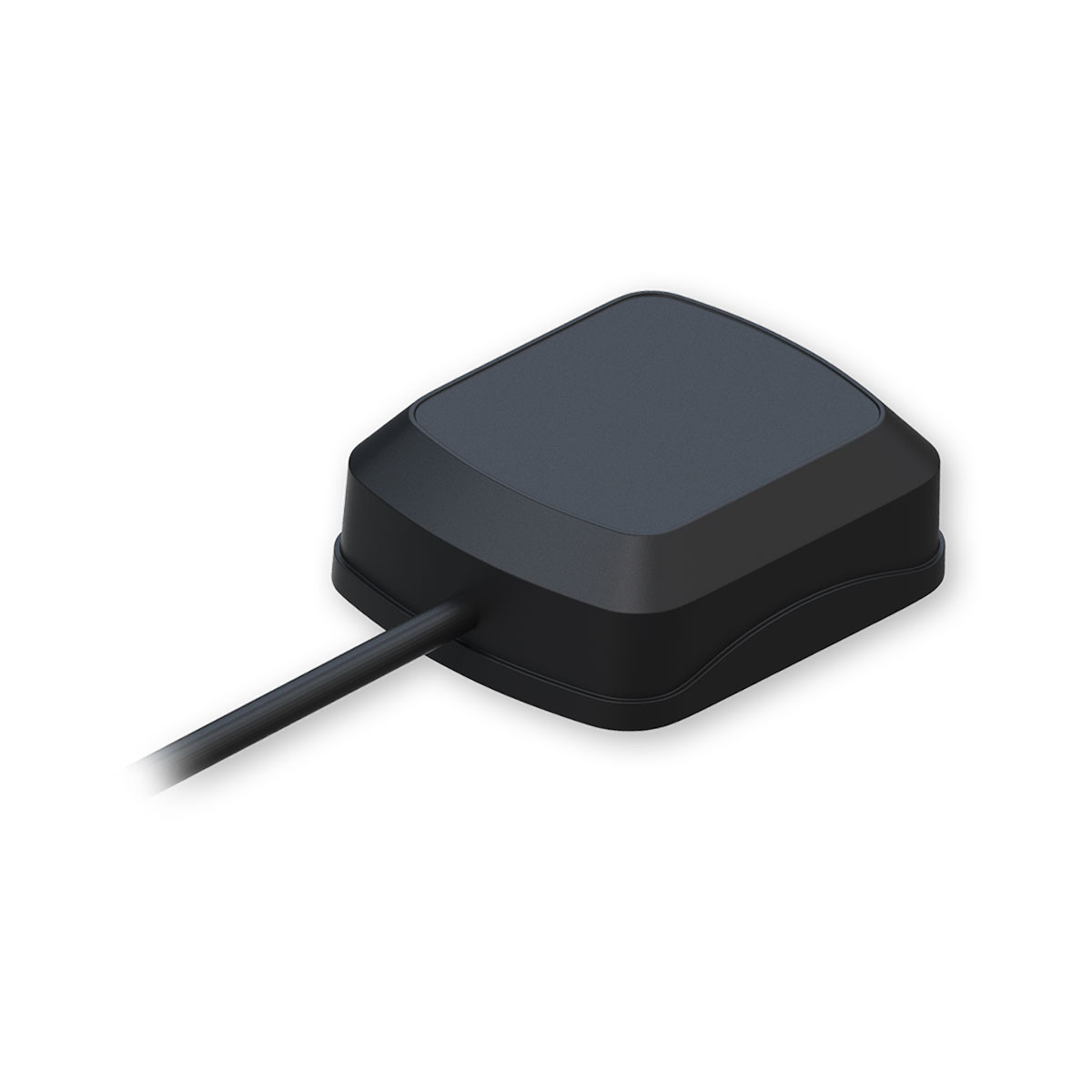

3.5dBi GNSS Adhesive SMA Antenna with 3m cable. Compatible with RUT955, RUTX09, RUTX11.
Characteristics
| Specifications | |
| Frequency | 1575.42-1602 MHz |
| Polarization | RHCP |
| Antenna Gain | 3.5 dBi |
| Antenna V.S.W.R | < 1.5 |
| Impedance | 50 Ω |
| Max Axial Ratio | 3 dB |
| LNA Gain | 28±2 dB |
| LNA Noise Figure | < 1.5 dB |
| Supply Voltage | 2.2 VDC - 5 VDC |
| Current Consumption | < 15 mA |
| LNA V.S.W.R | < 2.0 |
| Cable | RG174, 3000mm |
| Connector | SMA Male |
| Mounting Method | Adhesive |
| Operating Temperature | -40 °C to +85 °C |
| Operating Relative Humidity | 95 % max |
| RoHS Compliant | Yes |
Downloads
