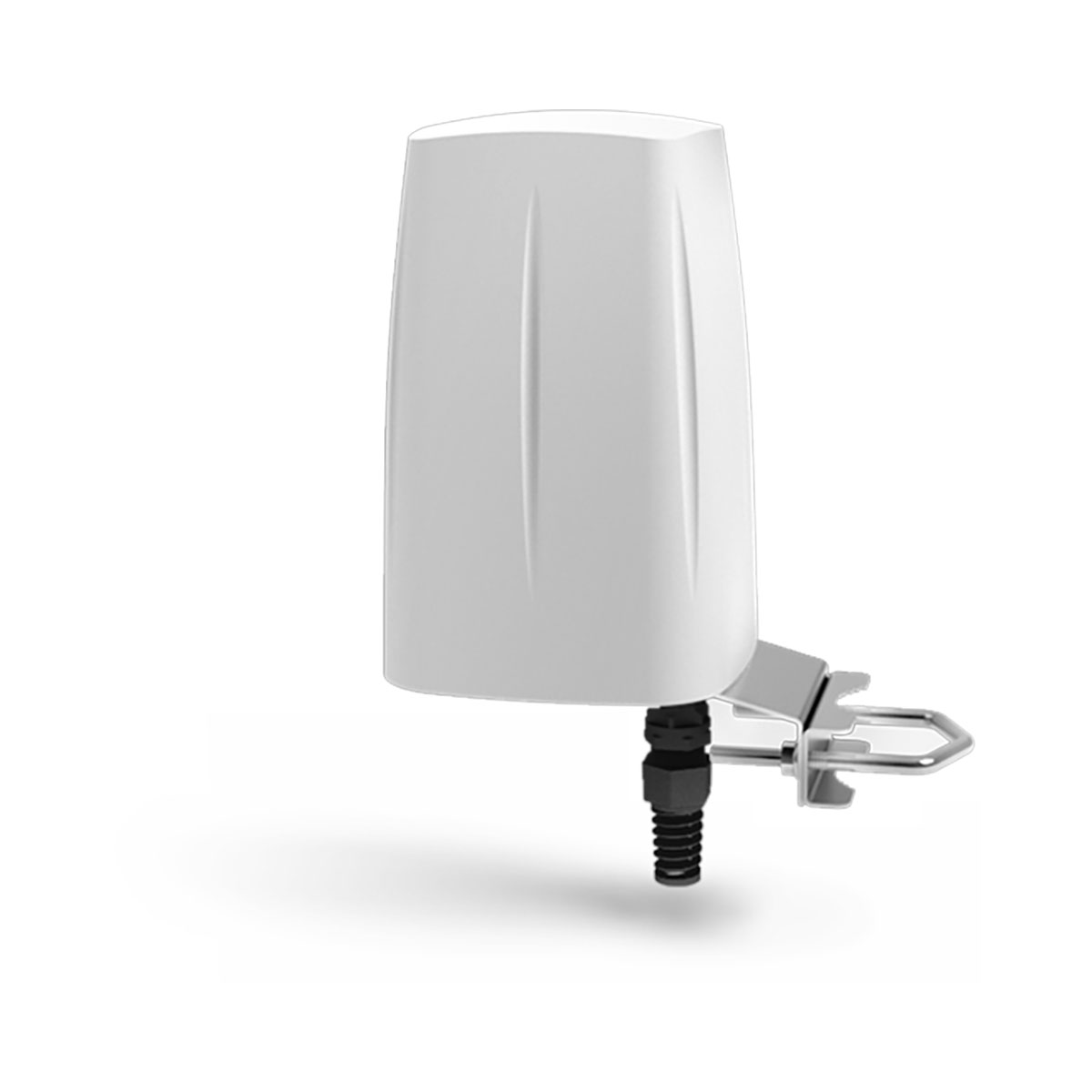

QuWireless A240S Quspot Antenna for RUT241 / RUT200 / RUT260 / RUT230 / RUT240
Product Code:
A240S
122,00 €
(Includes VAT 24%)
Sales price without VAT:
98,39 €
Available
QuWireless A240S Quspot Antenna for RUT241 / RUT200 / RUT260 / RUT230 / RUT240
Shipping cost calculation:
Quantity
Category:
Manufacturer:
Description
Characteristics
Downloads
Description

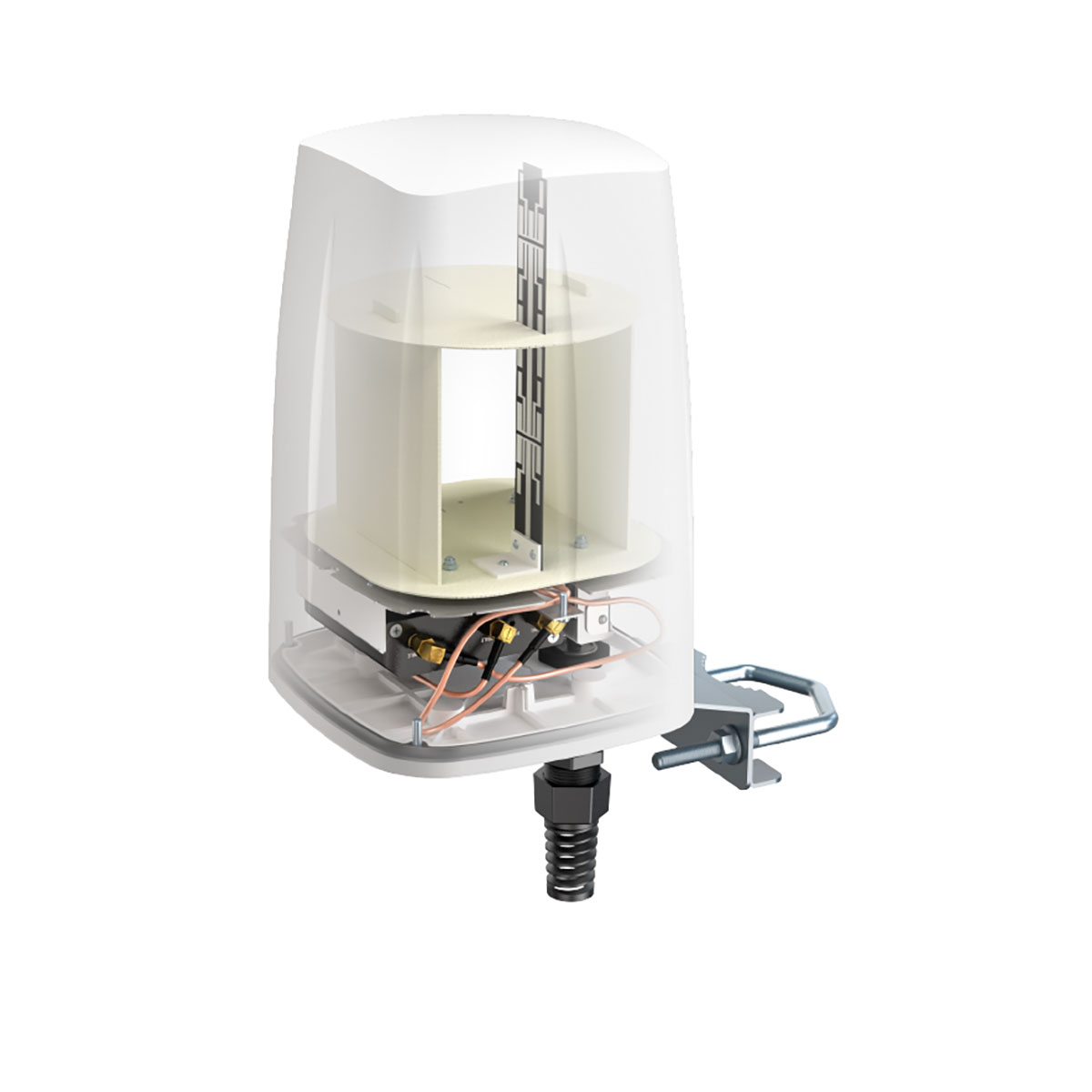

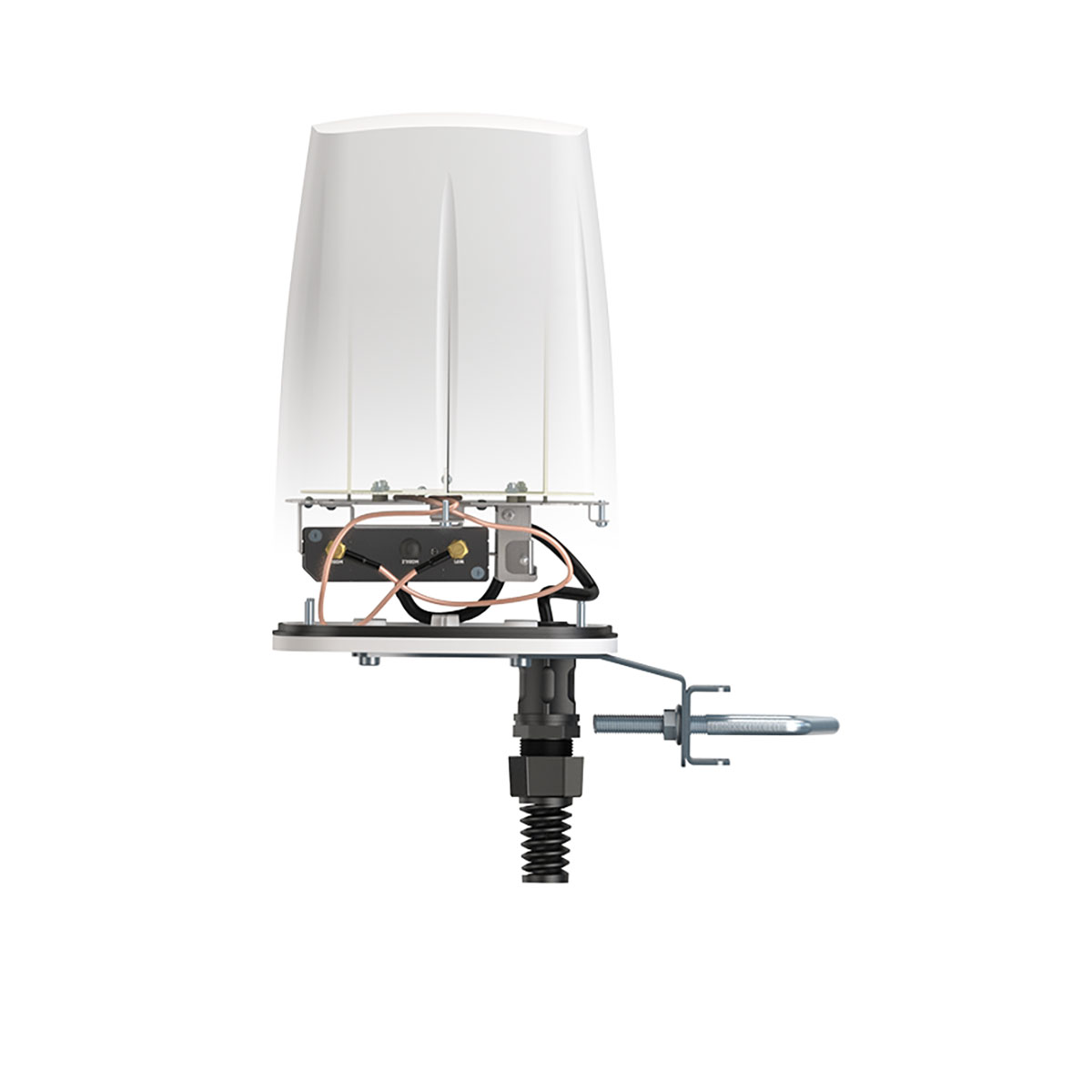

Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT241, RUT240, RUT230 or RUT200 (All-in-one)
QuSpot omnidirectional LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
Characteristics
| Specifications | |
| LTE Antenna | |
| Frequency | 694 - 960 MHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 694 - 960 MHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi |
| VSWR | <1.60, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Wi-Fi Antenna Specification | |
| Frequency | 2.4 - 2.5 GHz |
| Gain | 6 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE |
| Connector type | RJ45 |
| Ingress | IP68 |
| Dimensions | 160 x 160 x 240 mm |
| Weight | 1.5 kg |
| Operating Temperature | From -40°C to 80°C |
| Mast Diameter | 40-60 mm |
