Description
Each Teltonika Networking device comes with 1 month of free RMS service

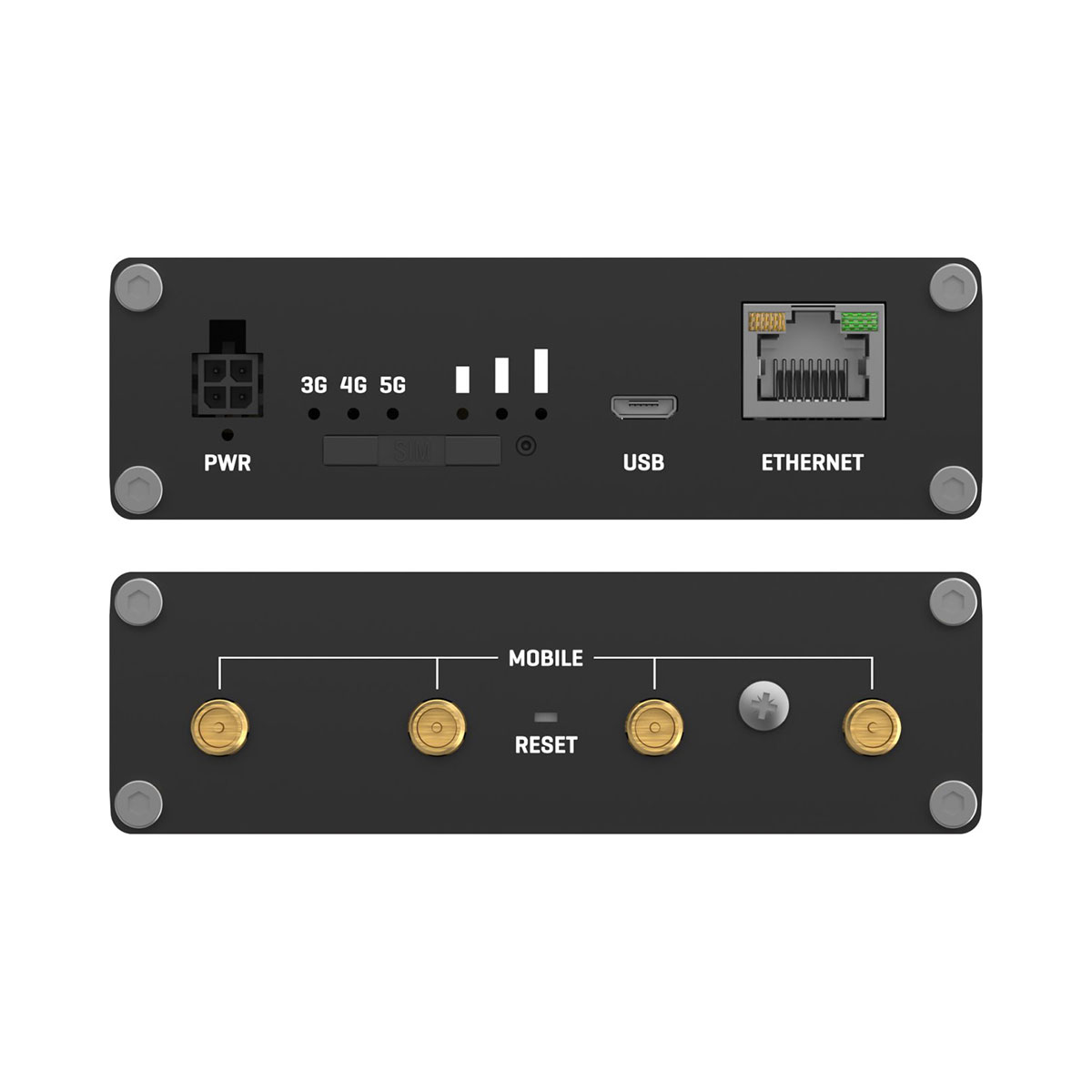

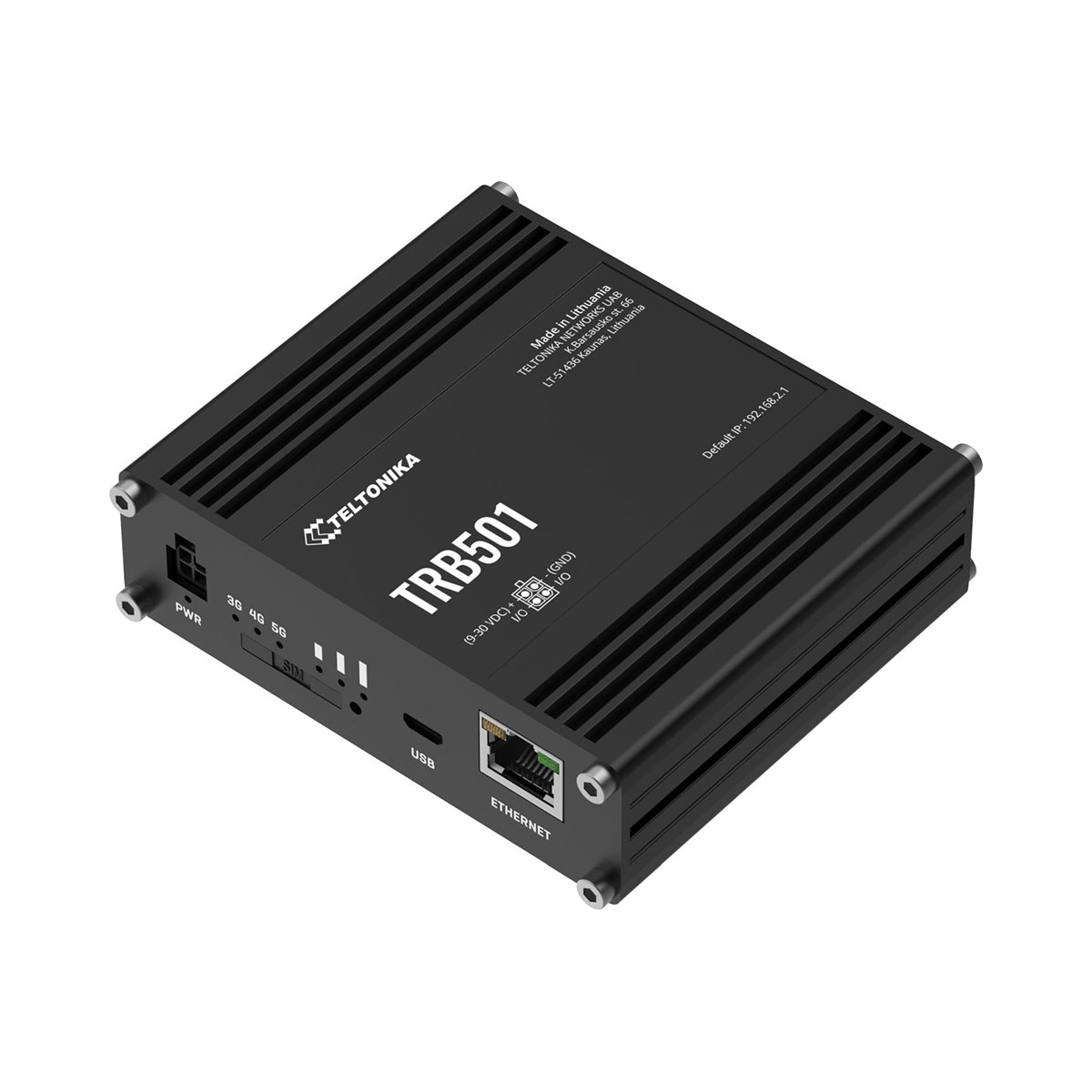

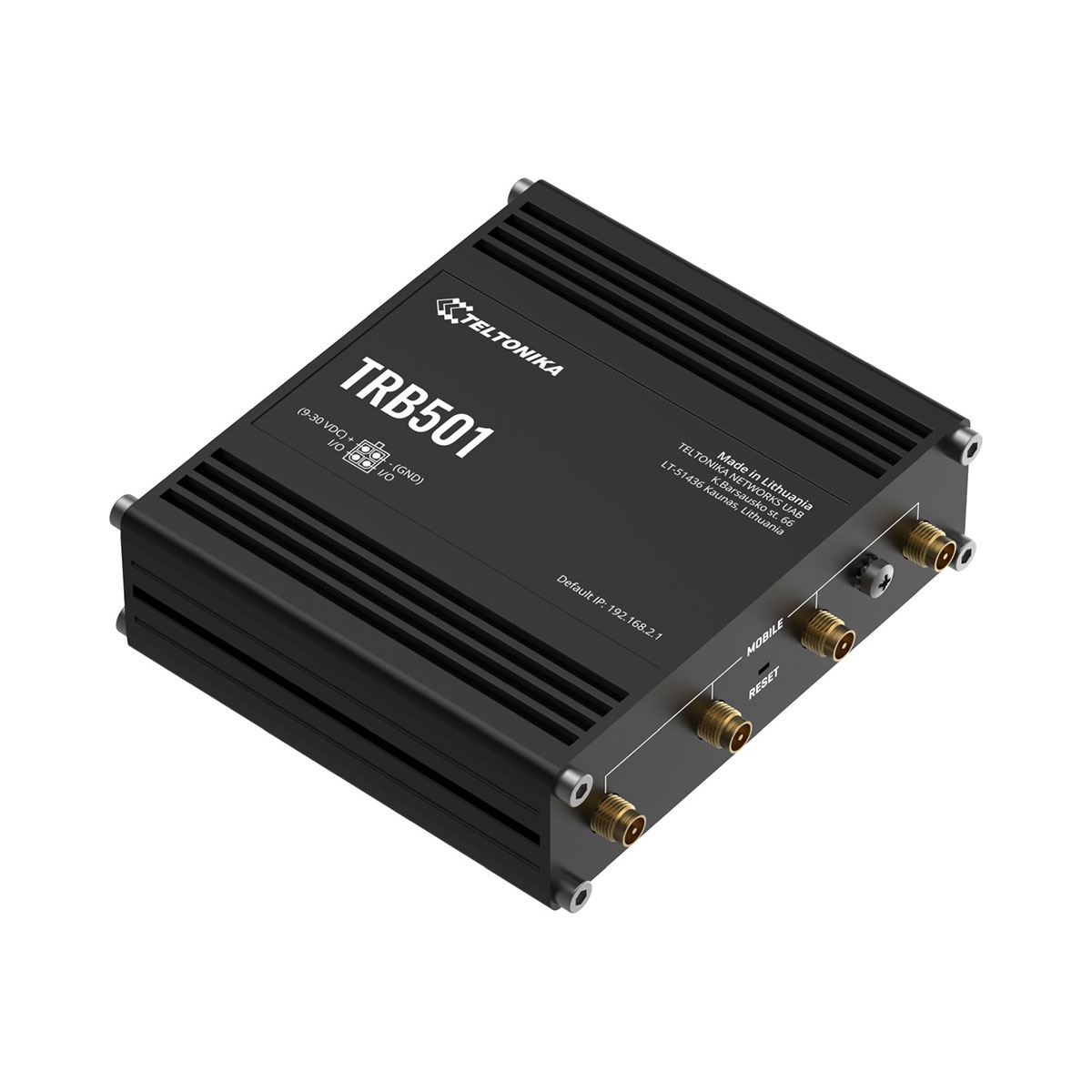

Experience the power of next-gen connectivity with the TRB501 Industrial 5G Gateway. Designed for demanding environments, it delivers blazing-fast, low-latency 5G for a new era of automation and efficiency. Built to push data faster with a 2.5 Gbps Ethernet and coupled with 5G carrier aggregation (3GPP Release 16), this compact device is ideal for solutions like POS systems, security installations, and IIoT applications.
Characteristics
| Specifications | |
| Hardware | |
| Mobile | 5G Sub-6 Ghz SA/NSA: 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G: 42 Mbps DL, 5.76 Mbps UL |
| CPU | Qualcomm, Single-Core, 1.5 Ghz, ARM Cortex-A7 |
| Flash Storage | 512 MB |
| RAM | 512 MB |
| SIM | 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Antenna connectors | 4 x SMA for Mobile |
| Ethernet | 1 x RJ45 port, 10/100/1000/2500 Mbps |
| Inputs/Outputs | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Grounding | 1 x Grounding screw |
| Status LEDs | 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED |
| Operating temperature | -40° C to 75° C |
| Housing | Anodized aluminum housing and panels |
| Dimensions(WxHxD) | 100 x 30 x 93.4 mm |
| Weight | 241 g |
| Software | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SMS, USSD, Block/Allow list, Band management, SIM PIN code management, APN, Bridge, Passthrough, Framed routing |
| Network features | Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation |
| VPN and tunneling | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM |
