MikroTik CubeG-5ac60ay Cube 60PRO AC, 1xGLAN, RouterOS L4
The 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. MikroTik's latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

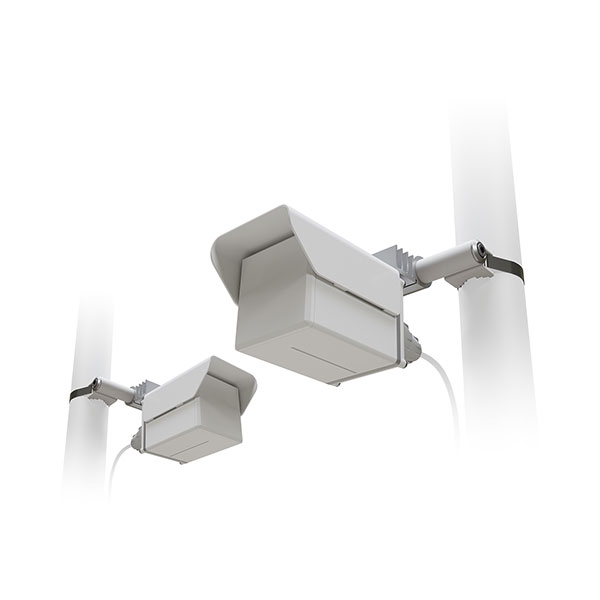

The Cube 60Pro ac CPE allows you to establish ultra-fast point-to-point connections over distances as far as 1 km. And that’s not all – we have added Channel 5x support, so you can reach even higher distances if necessary. In MikroTik's tests, the Cube 60Pro ac easily maintained a reliable connection over 2.4 km.
Bridging two locations has never been easier!
| Specifications | |
| Product code | CubeG-5ac60ay |
| CPU | 4 core IPQ-4019 716 MHz |
| Size of RAM | 256 MB |
| Storage | 64 MB flash |
| Number of 1G Ethernet ports | 1 |
| Wireless | 5 GHz 802.11a/n/ac |
| Wireless Chains | 1 |
| Antenna gain (dBi) | 11.5 5 GHz |
| Antenna beam width | 35° 5 GHz |
| Antenna beam width at 60 GHz | 11° |
| GPS | MT3337V |
| WiGig chipset | QCA6438 |
| WiGig antenna module | SWL-QD46 |
| Supported protocol | MikroTik 802.11ad / 802.11ay |
| Max EIRP (dBm) | 40 |
| Dimensions | 115 x 95 x 82 mm |
| Operating temperature | -40°C to +70°C |
| Operating system | RouterOS, License level 4 |
| Powering | |
| PoE-in | 802.3af/at |
| Supported input voltage | 18-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.8 A |
| Max power consumption | 13 W |
| Certification & Approvals | |
| Certification | CE, FCC, IC |
| Package Contains | |

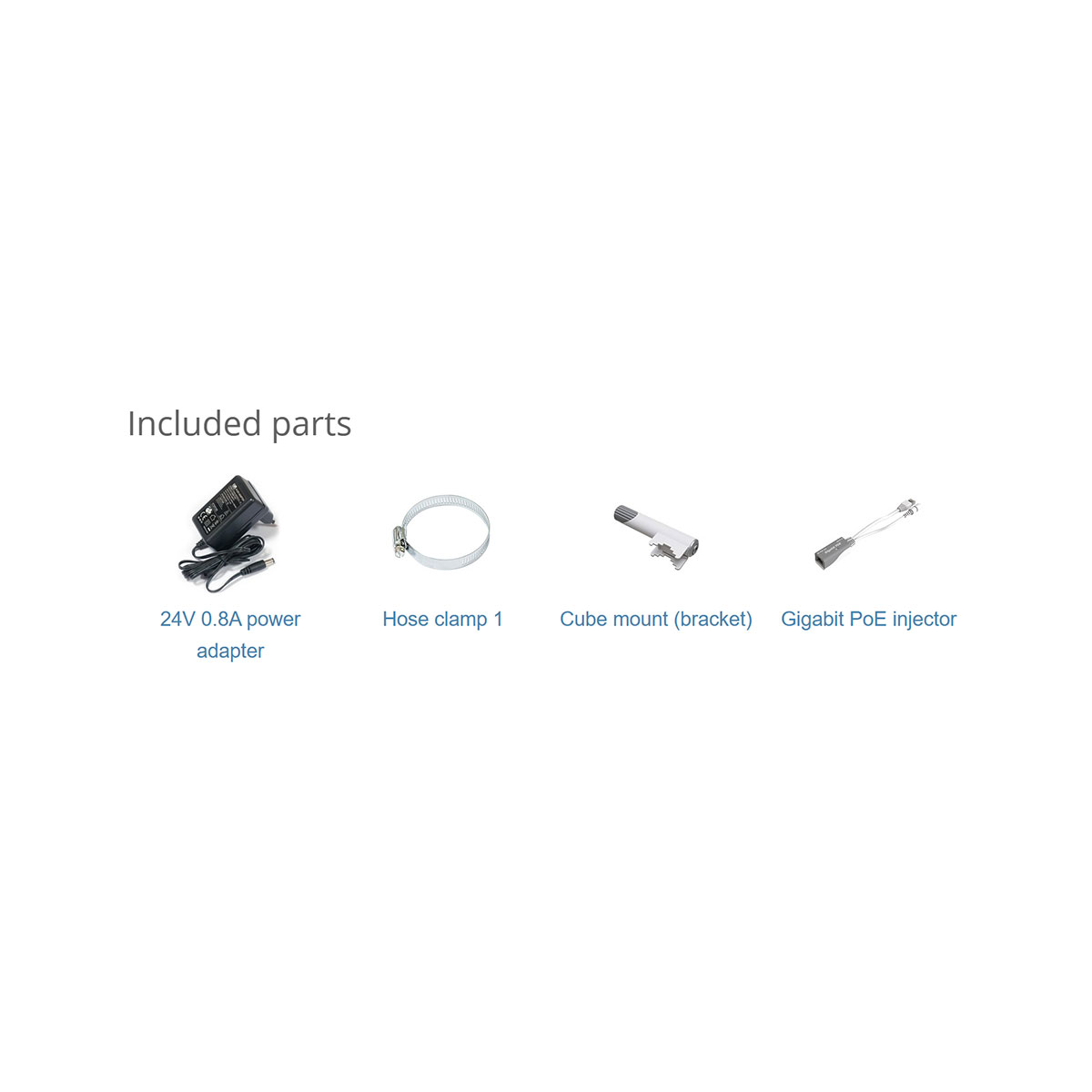

| Included parts | • 24 V 0.8 A power adapter • PoE injector • Hose clamp |
| Wireless specifications | ||
| Rate (5 GHz) | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 22 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 22 | -93 |
| MCS7 | 17 | -71 |
| MCS9 | 15 | -68 |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following:
Regulation of Use of Radio Spectrum.
EU executive decision.
Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
