MikroTik RouterBOARD RBLHGG-5acD-XL4pack, LHG XL 5 ac 4pack, L3

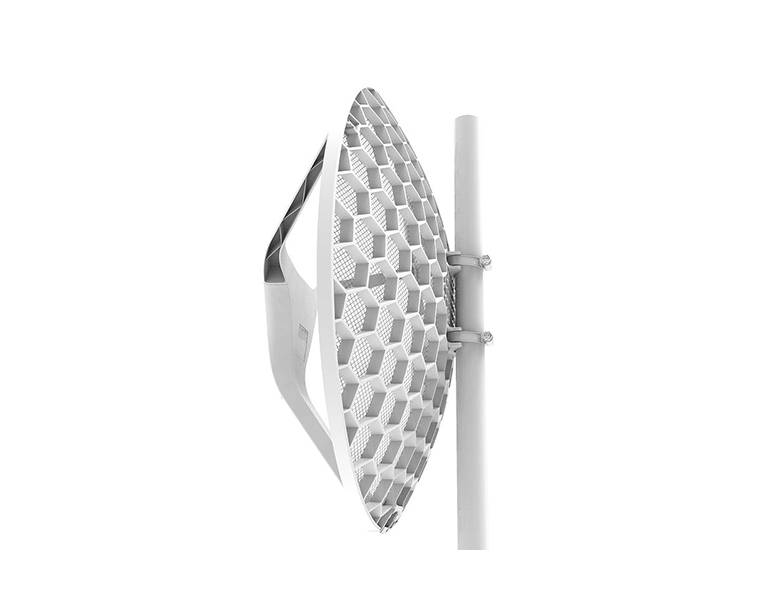

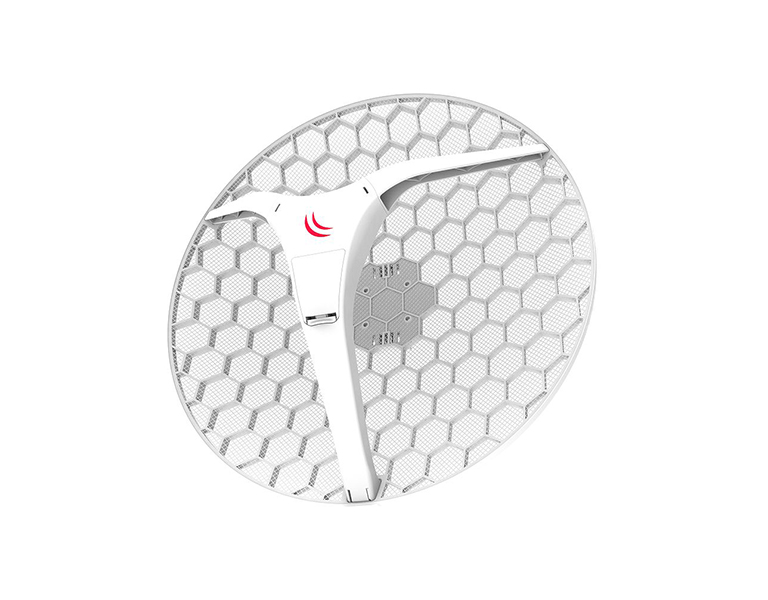

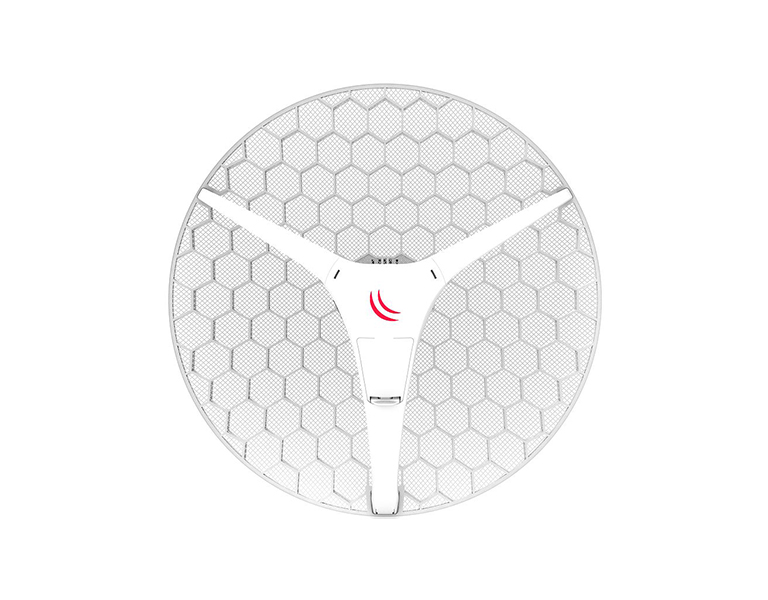

The Light Head Grid (LHG XL 5 ac) is a compact and light wireless device with an integrated 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances. Compared with the standard version, antenna gain is 2,5dBi higher than standard version. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble it. Antenna includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.
Shipped as a kit of 4 units (RBLHGG-5acD-XL4pack) - 4 antennas in a single box.
| Specifications |
|
| Product code | RBLHGG-5acD-XL4pack |
| CPU nominal frequency | 716 MHz |
| Size of RAM | 256 MB |
| Storage | 16 MB Flash |
| Ethernet ports | 1x 10/100/1000 |
| Wireless | Built-in 5 GHz 802.11ac, dual-chain |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| Wireless chip model | IPQ-4018 |
| Operating frequency | 5150 - 5875 MHz |
| Antenna gain | 27 +/- 0.5 dBi |
| Antenna beam width | 7° |
| PoE in | Yes |
| Supported input voltage | 10 V - 30 V (passive PoE) |
| Wind loading | 186N @ 205 km/h |
| Operating temperature | -40 to 70° C |
| Shock and vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Dimensions | Ø 550 x 245 mm package 585 x 595 x 138 mm |
| Weight | Unit: 945 g package: 2.99 kg |
| License level | 3 |
| Max power consumption | 7 W |

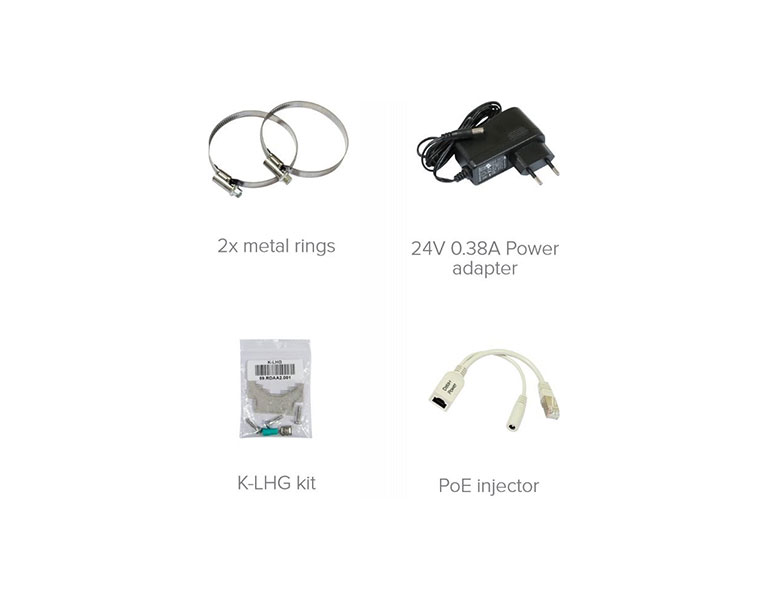

| Package contains | • (4) Device • (4) Power adapter 24V/0.38A • (4) Gigabit PoE injector • (8) metal rings • (4) K-LHG kit for antenna tilt |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
