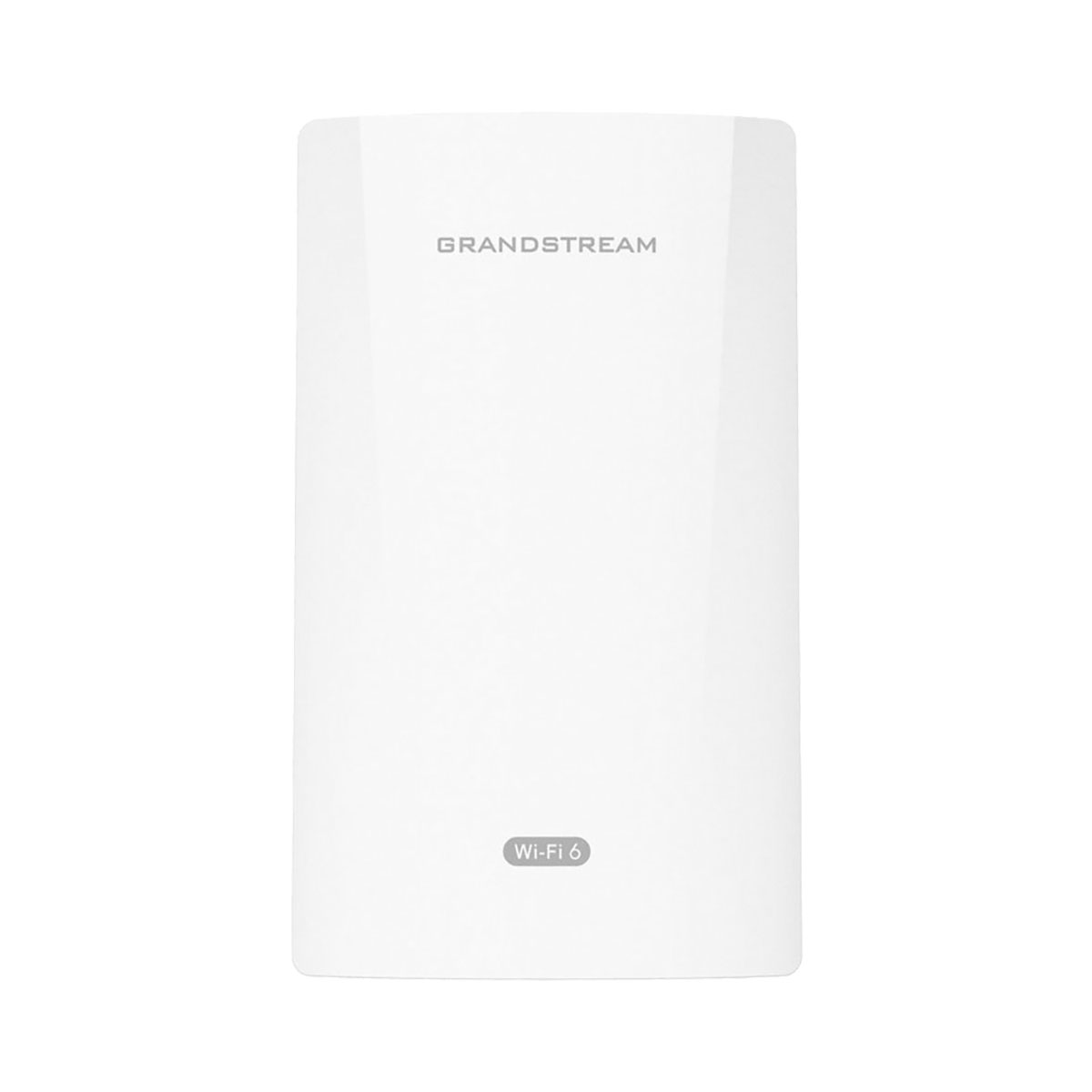

Grandstream GWN7302 PTP/PTMP Fixed Wireless Bridge
Grandstream GWN7302 PTP/PTMP Fixed Wireless Bridge
The GWN7302 is a new enterprise PtP/PtMP Fixed Wireless Bridge, ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 2x2:2 MIMO and a sophisticated antenna design with TDMA technology to improve spectrum utilization efficiency, reduce interference, and enhance network stability. It supports PtP and PtMP modes to meet different scenarios. It offers IP66-level weatherproof capability to ensure equipment stability. One key pairing can quickly synchronize and connect devices, combined with the signal strength LEDs to guide the antenna alignment, simplifying the installation and use of the device. To ensure easy installation and management, the GWN7302 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7302 is also supported by the GWN App, which can be configured by connecting Wi-Fi broadcasted by the device itself when it is not convenient to access the LAN and the GDMS cloud platform offers remote management. It has a 2x1 Gigabit network port, supporting PoE IN and PoE OUT respectively. GWN7302 is an ideal long-range wireless bridge for factories, construction sites, parking lots, scenic locations, and more.
Features:
• 2.4Gbps aggregate wireless throughput, 2x1 Gigabit Ethernet port
• Single-band 2x2:2 MIMO with TDMA technology
• Up to 5-kilometer coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• IP66 level weatherproof
• Self power adaptation upon auto detection of PoE+
• Convenient and intelligent web management; GWN App management; GDMS Networking offers a remote management via SSH tunneling
| Specifications | |
| Radio |
|
| Antenna | 2 single internal antennas 5GHz x 2 , gain 13.5dBi Beamwidth 5G: H:30°, V:30° |
| MIMO | 5GHz: 2x2:2, MIMO |
| Frequency Bands | 5GHz Radio: 5150 - 5850 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | 5G: 20, 40, 80 and 160MHz (x2) |
| Wi-Fi Data Rates | 5G IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5 Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Maximum TX Power | 5G: 26dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ac 20 MHz: -67 dBm @MCS8; 802.11ac 40 MHz: -63 dBm @MCS9; 802.11ac 80 MHz: -59 dBm @MCS9; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 802.11ax 80 MHz: -56 dBm @MCS11; 802.11ax 160 MHz: -52 dBm@ MCS11; |
| Coverage Range | Up to 5 kilometers *coverage range can vary based on environment |
| Point to Multipoint | 1 to 4 |
| Interfaces | |

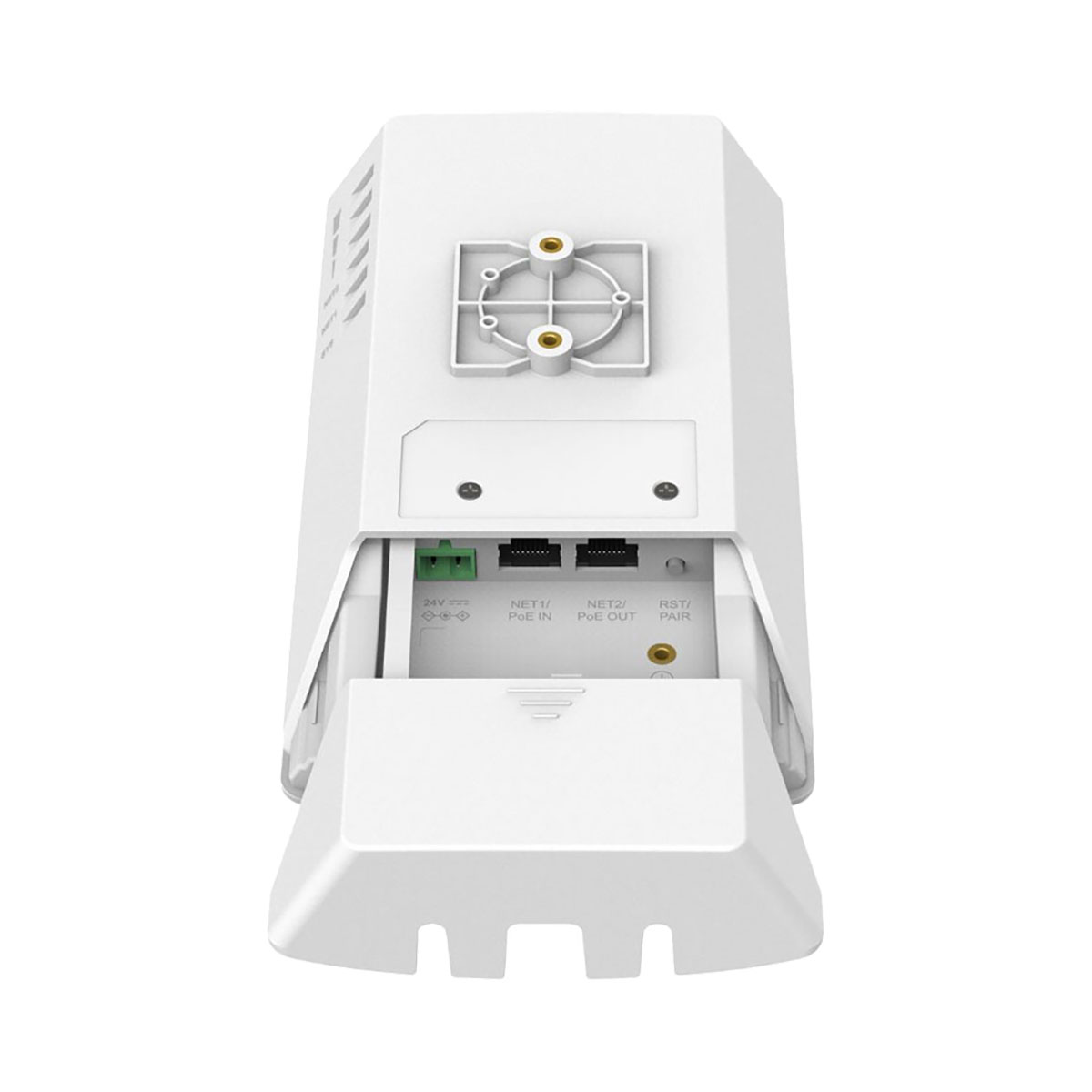

| Network Ports | 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output |

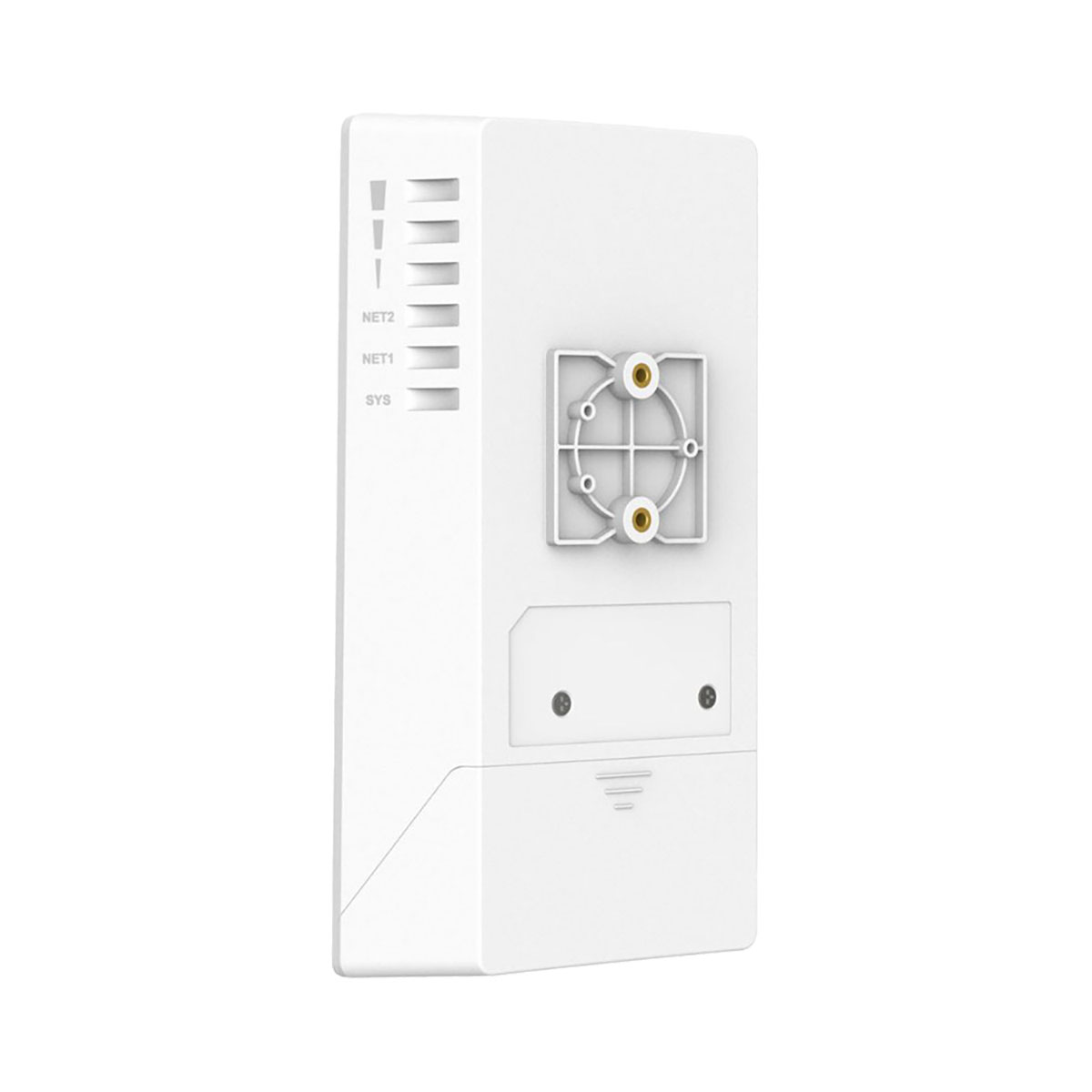

| LEDs | 1 tri-color LED for device tracking and status indication 3x LED for signal strength 2x LED for network port status |
| Auxiliary Ports | 1x Reset and Pairing Button |
| Power | |
| PoE Input | 802.3af/at |
| DC | +24V (Compatible with 16V-48V) |
| PSE output | Max 13W with PoE+ input Max 25W with +24V DC/2A input |
| Maximum Power Consumption |
13W |
| Physical | |
| Dimension | Unit: 180 x 102 x 38 mm Entire Package: 219 × 185.5 × 66 mm |
| Weight | Unit: 412g Entire Package: 753g |
| Mounting | Wall mount or pole mount, kits included |
| Package Content | GWN7302 PtP/PtMP Fixed Wireless Bridge, Mounting Kits, Quick Start Guide |
| Environmental | |
| Temperature | Operation: -30°C to 60°C Storage: -30°C to 70°C |
| Humidity | 5% to 95% Non-condensing |
| Weatherproof Guide | IP66-level weatherproof capability |
| Compliance | FCC, CE, RCM, IC |
| WLAN | IEEE 802.11 a/n/ac/ax SSID: Single 5G, disabled Support auto channel Support transmit power selection Support management Wi-Fi Support TDMA |
| Pairing | One-key pairing Web pairing |
| Network | Static or DHCP IPv4 Support VLAN |
| Security | WPA2-PSK WPA3-PSK |
| System Tools | Link Test Antenna Alignment Spectrum Analyzer |
| QOS | 802.11e/WMM,802.1p, 802.1q, TOS |
| Management Platform |
Local Web GDMS Networking via SSH tunneling GWN Manager GWN App |
| Management Protocol |
TR-069 SNMP |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
