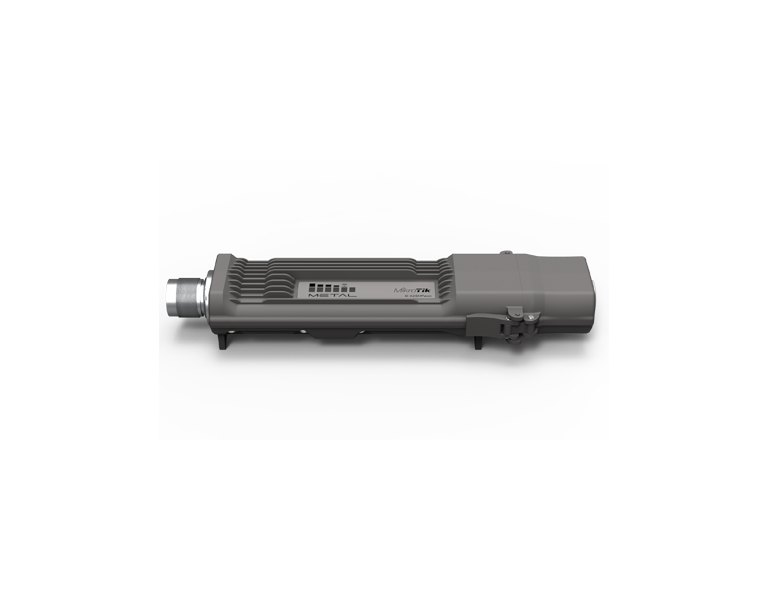

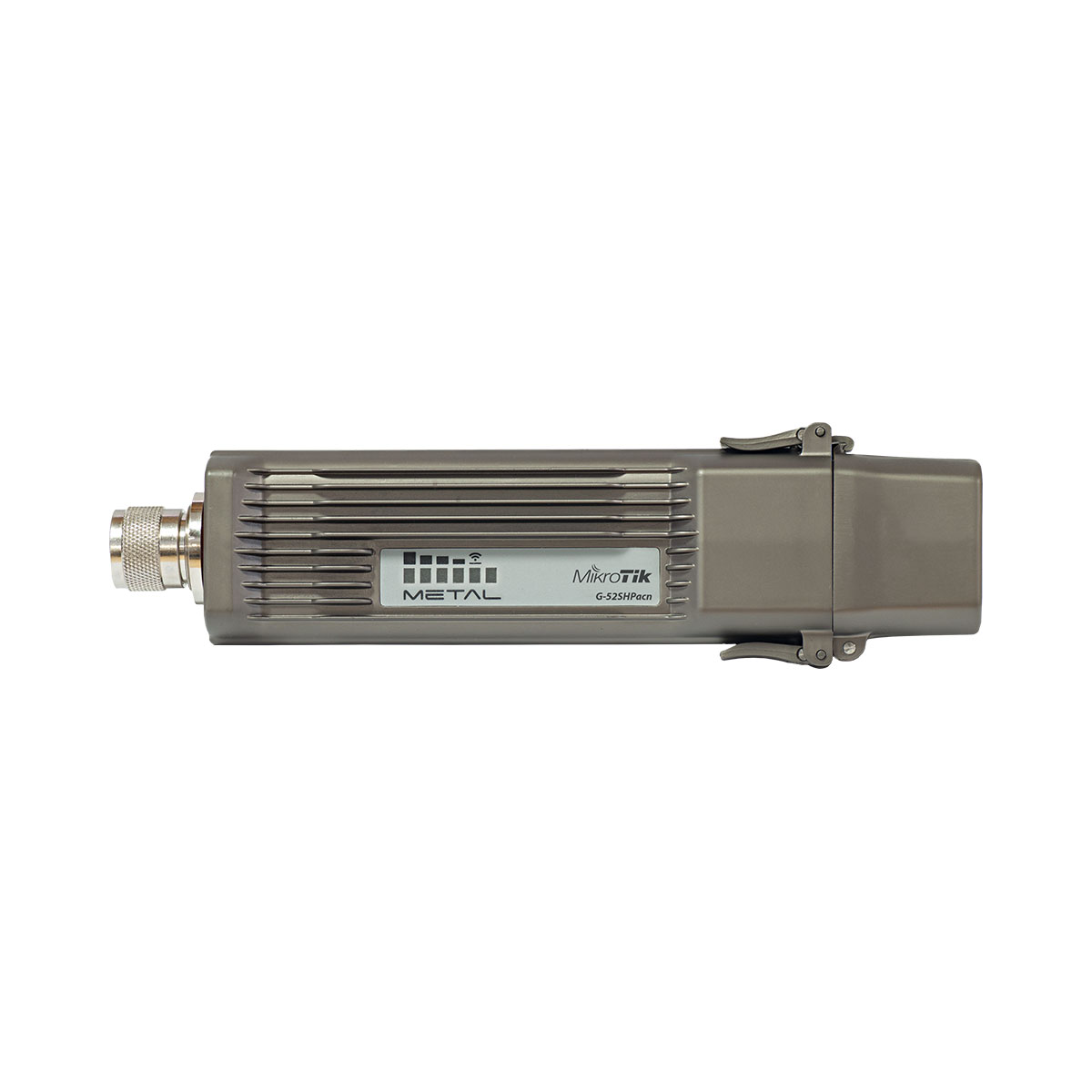

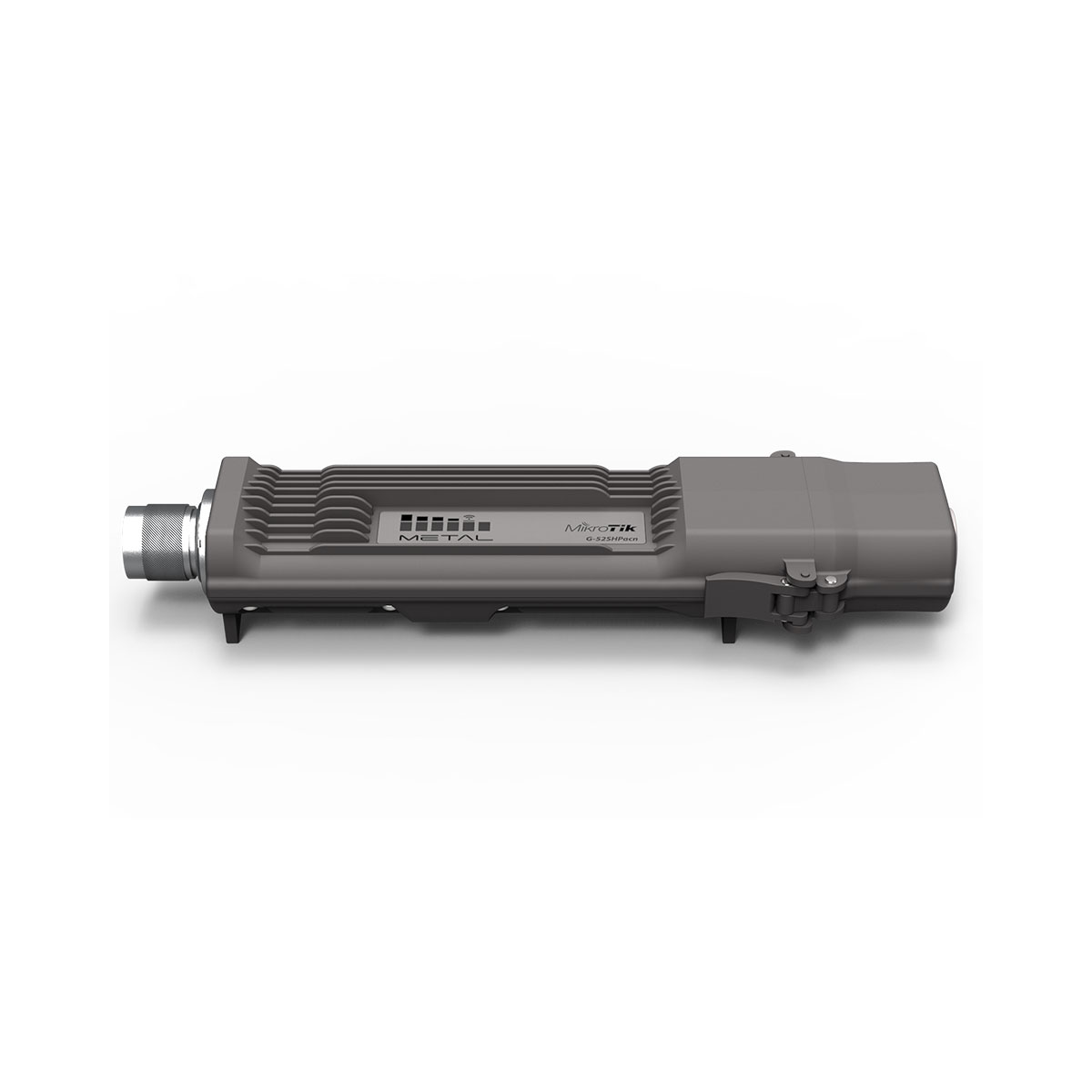

MikroTik RBMetalG-52SHPacN, Metal 52 ac, Outdoor CPE 2.4/5GHz, RouterOS L4
Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.
The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).
| Specifications | |
| Product code | RBMetalG-52SHPacn |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 215 x 60 x 38mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Chains | Single-chain |
| Powering | |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
| Wireless | |
| AC speed | AC750 |
| Operating frequency | 5150 - 5875 MHz 2412 - 2484 MHz |
| Wireless 2.4 GHz/5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz/5 GHz number of chains | 1 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/n/ac, 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz/5 GHz | 6 |
| Wireless 2.4 GHz/5 GHz chip model | QCA9889 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 5 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Weight | Package: 778 g Unit: 300 g |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP55 |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
