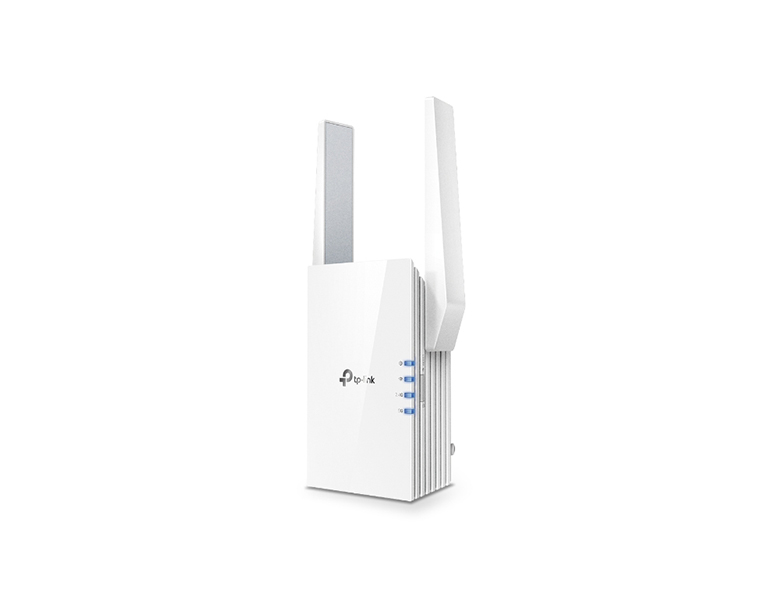

TP-LINK RE505X V2 AX1500 Wi-Fi Range Extender
| • RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion. • Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage. • Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles • Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement • AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability • TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device • Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point |
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.
Fill Every Inch of Your Home with Wi-Fi 6
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.
Dual Band, More Benefits
Adaptive Path Selection Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.
Built-In Access Point Mode
RE505X is more than just a wireless range extender. Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.
TP-Link OneMesh™
OneMesh™ is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.
Enjoy an AX Mesh Network with Your Existing Router
Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set?
1) Update your existing TP-Link router’s firmware to the OneMesh™ version—no need to replace anything.
2) Connect the RE505X to the router.
3) Enjoy your Mesh network
Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
| HARDWARE FEATURES | |
| Button | WPS Button, Reset Button |
| Port | 1 Gigabit Ethernet Port |
| Antenna | 2 External Antennas |
| Power Consumption | 10W |
| Dimensions(WxDxH) | 74.0 x 46 x 124.8 mm |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 1200 Mbps at 5 GHz |
| Transmit Power | 2.4G<20dBm, 5G<30dBm |
| Reception Sensitivity | 5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA-PSK2 encryptions |
| OTHERS | |
| Certification | CE, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Package Contents | Wi-Fi Range Extender RE505X Quick Installation Guide |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
