MikroTik R11e-5HacD 5Ghz mPCI-e, ac/a/n dual chain, 500mW, MMCX

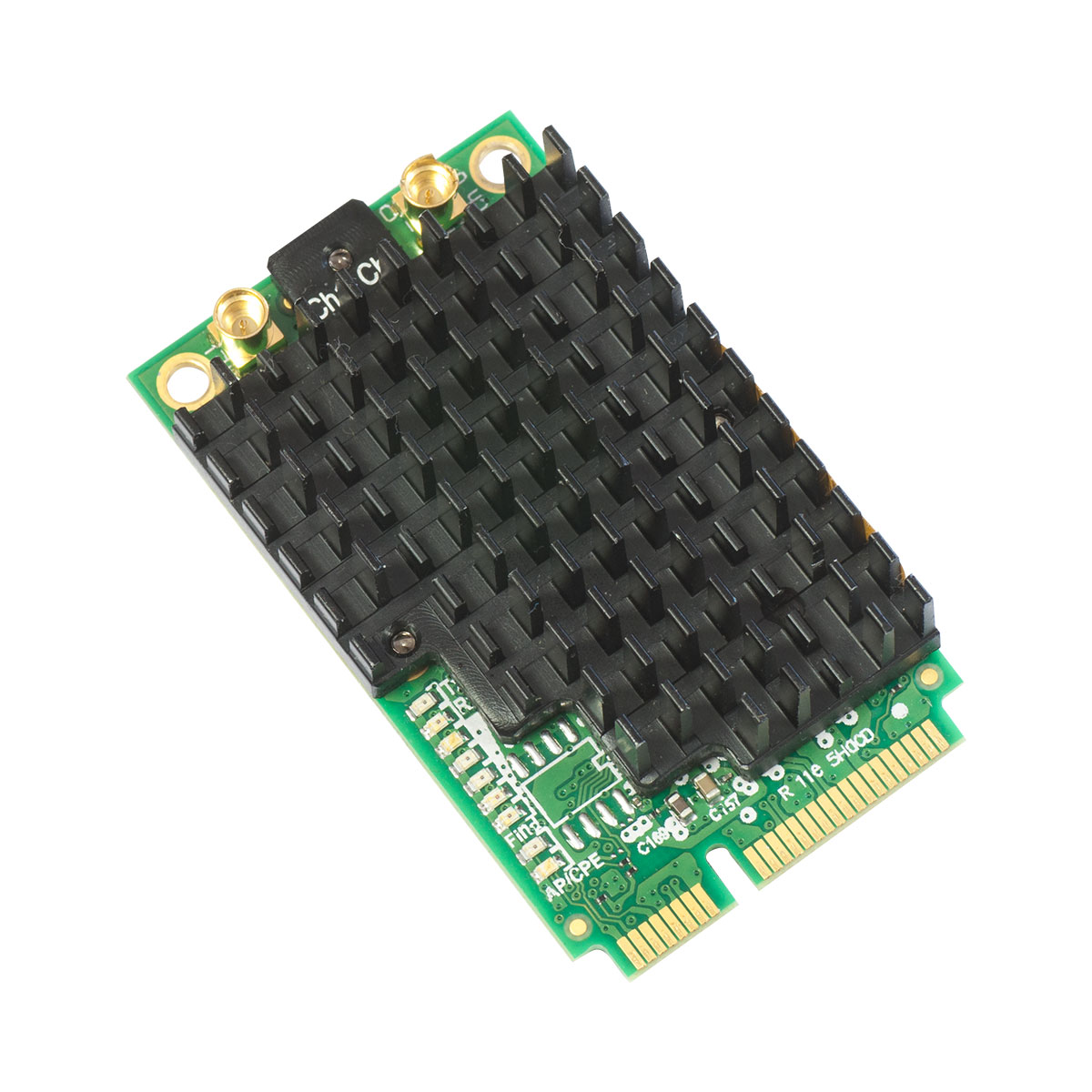

R11e-5HacD is the new 802.11ac card in miniPCI-express format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB922, RB800 or x86 devices with RouterOS.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
| Specifications | |
| Product code | R11e-5HacD |
| 5GHz | yes |
| Antenna header count | 2 |
| Can be used indoors | Yes |
| Can be used outdoors | Yes |
| Certification | FCC, IC |
| Chipset | QCA9882 |
| Connector | 2x MMCX |
| Format | miniPCI-e |
| Max power consumption | 4 W |
| Output power | 27dBm |
| Storage size | 4 KB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Wi-Fi generation | Wi-Fi 5 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz chip model | QCA9882 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wireless standards | 802.11a/n/ac |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
