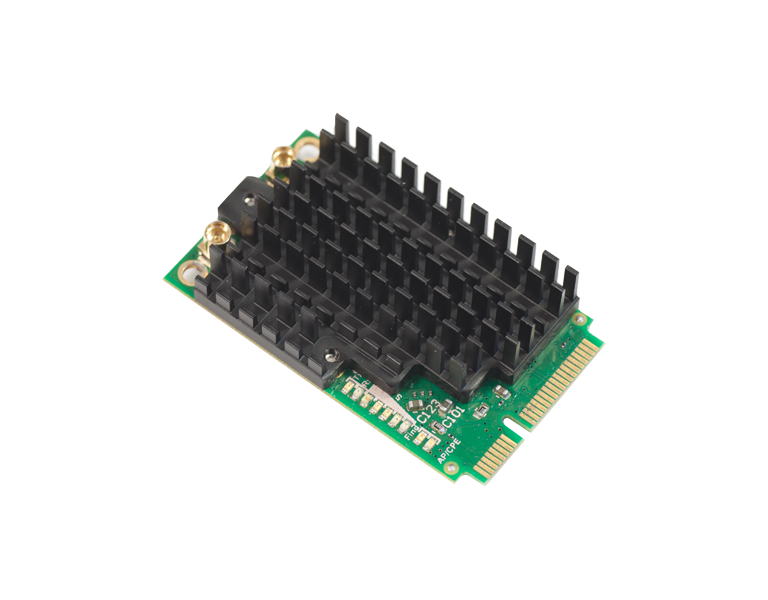

MikroTik R11e-2HPnD High Power miniPCI-e card with MMCX connectors
Product Code:
R11e-2HPnD
41,00 €
(Includes VAT 24%)
Sales price without VAT:
33,06 €
7 Days
MikroTik R11e-2HPnD 802.11b/g/n High Power miniPCI-e card with MMCX connectors
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Legal Notice
Description
R11e-2HPnD is the new 802.11b/g/n Dual Chain high power 1000mW miniPCI-e card, operating in full 2192-2732 MHz frequency. Ideally suited for the new RB912 series, RB800 or new miniPCIe adapters - RB14e/RB14eU
Unit is equipped with two MMCX connectors
Characteristics
| Specifications | |
| Product code | R11e-2HPnD |
| Antenna header count | 2 |
| Can be used indoors | Yes |
| Can be used outdoors | Yes |
| Certification | FCC, IC |
| Max power consumption | 5 W |
| Storage size | 4 KB |
| Storage type | FLASH |
| Tested ambient temperature | -40C to +65C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz chip model | AR9582 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless standards | 802.11b/g/n |
Legal Notice
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
